Product information

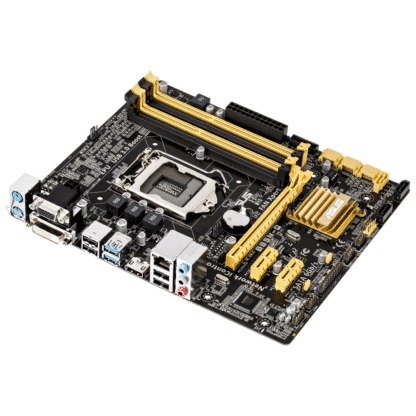

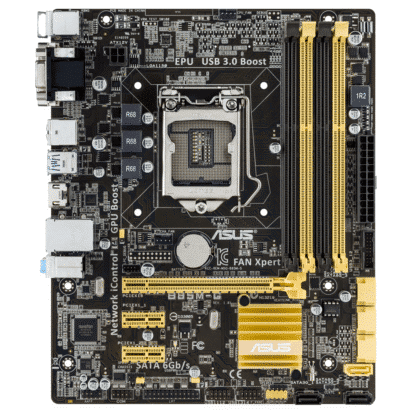

The Asus B85M-G is a Micro-ATX Socket 1150 motherboard based on the Intel B85 chipset. The board must be combined with DDR3 memory, for which 4 slots are available.


Features:Motherboard | Micro ATX | Socket 1150 | 4x DDR3 (max 32GB) | SATA-600 | SATA-300 | PCIe 2.0 x1 | PCIe 3.0 x16 | USB 2.0 | USB3 | DVI-D| VGA (D-Sub) | HDMI


Product: Asus B85M-G
Socket:Socket 1150
Category: motherboards
Brand: Asus
Condition: Refurbished – BIOS updated to the latest version
EAN:
0886227480067, 0886227553747, 4054319112097, 4716659480068, 4716659480099, 4916659480048
SKU: 90MB0G50-M0EAY0, 90MB0G50-M0UBY0, 90MB0G50-M0XCN0, B85M-G
Warranty:
6 months


Package content:
– Motherboard (Asus B85M-G)
– I/O-Shield (blende)
– No manual
– No driver CD
– No cables


CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Celeron® dual-core/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU type.


Chipset
Intel® B85


Memory
4xDIMM, Max. 32GB, DDR3 1600/1333/1066MHz Non-ECC, Unbuffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).


Graphics
Integrated Graphics Processor
Multi-VGA output support: HDMI/DVI/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory or 1024 MB
Supports up to 3 displays simultaneously


Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1


Storage
Intel® B85 chipset :
4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,


LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)


Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function


USB ports
Intel® B85 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® B85 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)


Special features
ASUS 5X Protection :
– ASUS DIGI+ VRM – 3 Phase digital power design
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
– ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability
– ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating
ASUS EPU :
– EPU
GPU Boost
ASUS Exclusive Features:
– AI Suite 3
– Ay Charger
– Anti Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
ASUS Quiet Thermal Solution :
-ASUS FanXpert
ASUS EZ DIY :
– ASUS Crash Free BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q DIMM
100% All High-quality Conductive Polymer Capacitors


Operating system support
Windows® 8.1
Windows® 8
Windows® 7

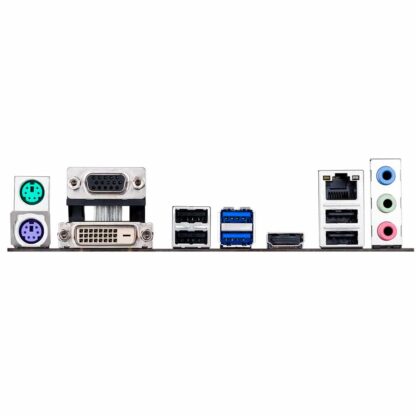

Rear I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D Sub
1xHDMI
1 x LAN (RJ45) port(s)
2x USB 3.1 Gen 1
4xUSB2.0
3 x Audio jack(s)


Internal I/O
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)


Accessories
I/O Shield


BIOS
64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3


Beheermogelijkheden
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE


Form factor
mATX Form Factor
9.2 inch x 7.6 inch ( 23.3 cm x 19.3 cm )

Specification

Weight 1 kg
Intel

LGA1150

Brand

Asus

Form Factor

Micro-ATX

Chipset

Intel B85

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Model
package content

Motherboard and Backplate (Blende)

Length

24.4 cm

Width

21.3 cm

Asus B85M-G LGA1150 motherboard

Fast delivery

  • A-Style : Home Cloud
  • Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
  • Supports Intel® Small Business Advantage 2.0
  • All Solid Capacitor design, Digi Power
  • Supports Dual Channel DDR3/DDR3L 1600
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, PCI
  • Supports AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options : DVI-D, D-Sub, HDMI, Displayport
  • Intel® Gigabit LAN
  • 7.1 CH HD Audio with Content Protection (Realtek ALC887-VD2 Audio Codec)
  • 4 SATA3, 2 SATA2, 4 USB 3.0, 8 USB 2.0
