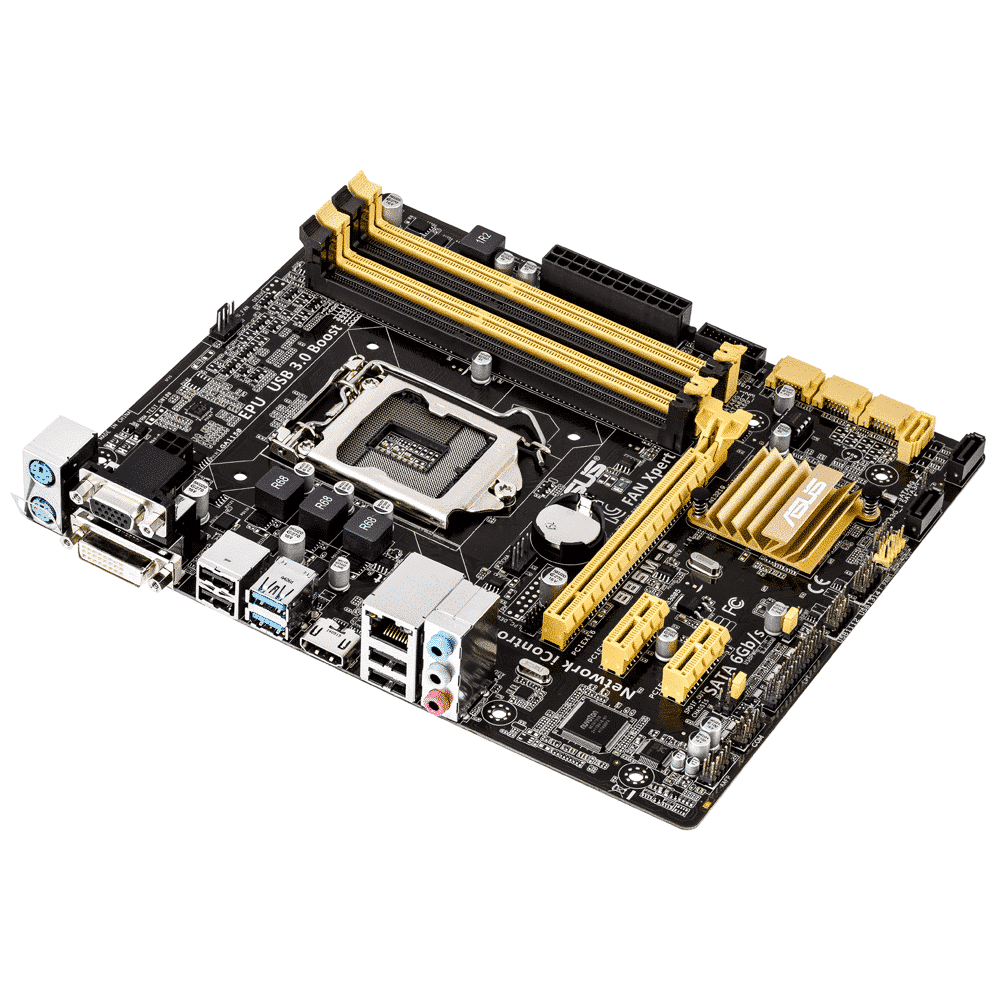

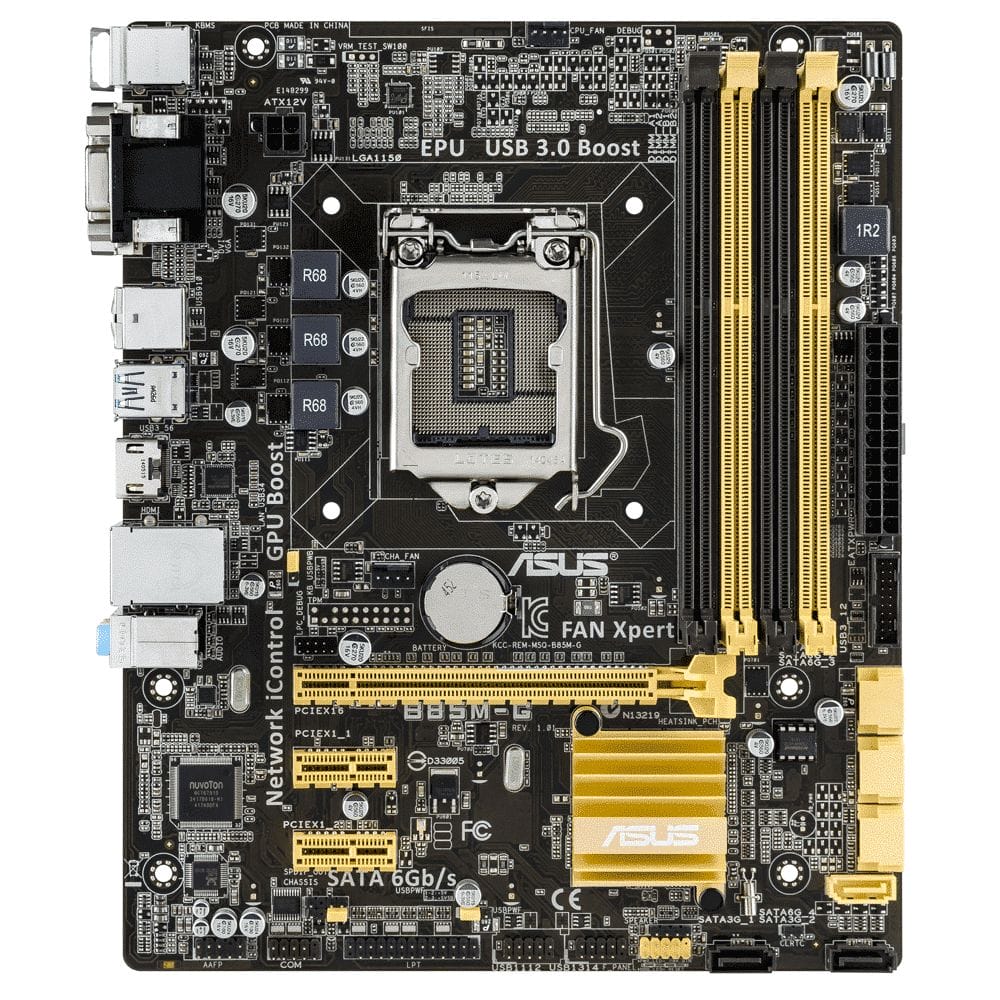

De Asus B85M-G is een Micro-ATX Socket 1150 moederbord gebaseerd op de Intel B85 chipset. Het bord moet worden gecombineerd met DDR3-geheugen, waarvoor 4 slots beschikbaar zijn.
Kenmerken: Moederbord | Micro-ATX | Socket 1150 | 4x DDR3 (max 32GB) | SATA-600 | SATA-300 | PCI-e 2.0 x1 | PCI-e 3.0 x16 | USB 2.0 | USB3 | DVI-D| VGA (D-Sub) | HDMI
Klik hier voor de ondersteunende CPU’s
Klik hier voor de drivers
Product: Asus B85M-G
Socket: Socket 1150
Categorie: moederborden
Merk: Asus
Staat: Refurbished – BIOS bijgewerkt naar de nieuwste versie
EAN: 0886227480067, 0886227553747, 4054319112097, 4716659480068, 4716659480099, 4916659480048
SKU: 90MB0G50-M0EAY0, 90MB0G50-M0UBY0, 90MB0G50-M0XCN0, B85M-G
Garantie: 6 maanden
Inhoud pakket:
– Moederbord (Asus B85M-G)
– I/O-Shield (blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Celeron® dual-core/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® B85
Geheugen
4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Grafische
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously
Uitbreidingsslots
1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
Opslag
Intel® B85 chipset :
4 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
USB-poorten
Intel® B85 chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Intel® B85 chipset :
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
Speciale functies
ASUS 5X Protection :
– ASUS DIGI+ VRM – 3 Phase digital power design
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
– ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability
– ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating
ASUS EPU :
– EPU
GPU Boost
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
ASUS Quiet Thermal Solution :
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors
Ondersteuning besturingssysteem
Windows® 8.1
Windows® 8
Windows® 7

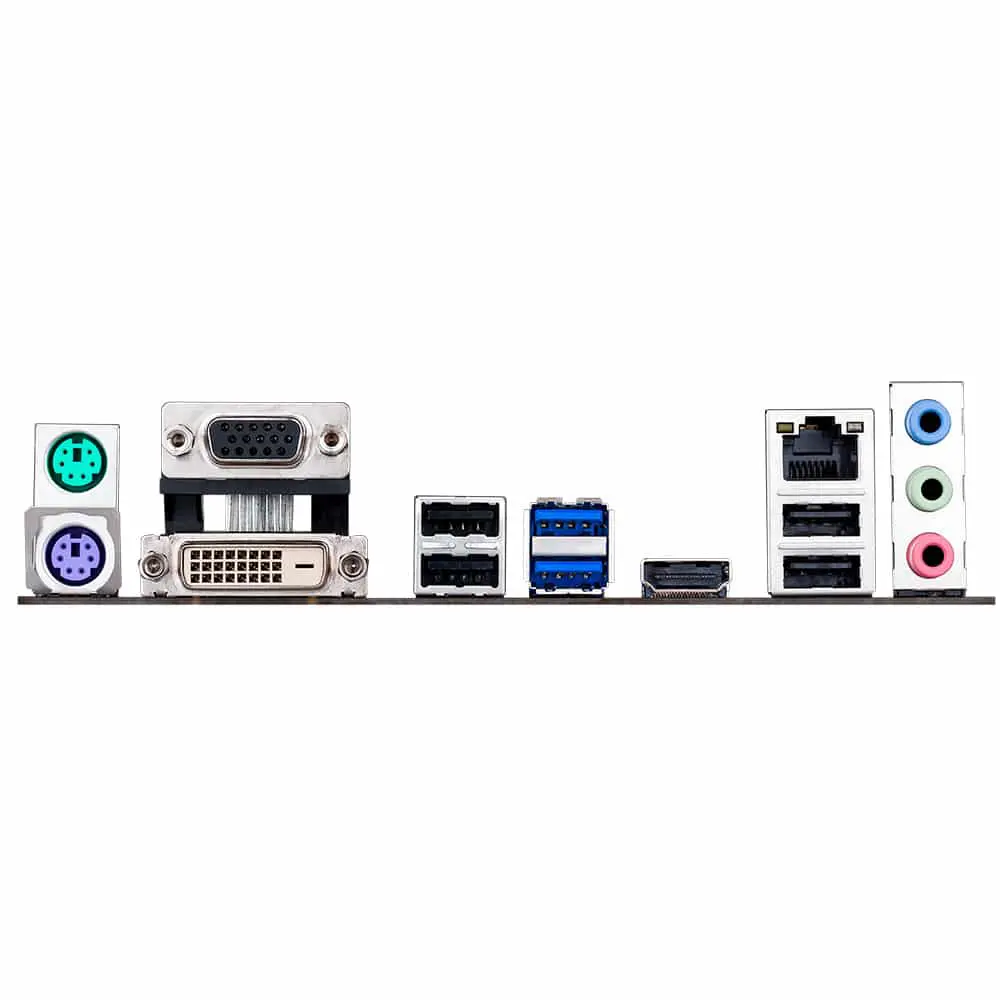

I/O-poorten achterzijde
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
3 x Audio jack(s)
Interne I/O
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
Accessoires
I/O Shield
BIOS
64 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Beheermogelijkheden
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Vormfactor
mATX Form Factor
9.2 inch x 7.6 inch ( 23.3 cm x 19.3 cm )
Gewicht | 1 kg |
---|---|
Intel | Socket 1150 |
Merk | Asus |
Formaat | Micro-ATX |
Chipset | Intel B85 |
Geheugentype | DDR3 |
Aantal geheugenslots | 4 |
Maximale geheugengrootte | 32 GB |
Aansluitingen | D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0 |
Opslag interfaces | Serial ATA-300, Serial ATA-600 |
Interfaces | PCI-e 2.0 x1, PCI-e 3.0 x16 |
Socket | |
Model | B85M-G |
Pakketinhoud | Moederbord en I/O-Shield |
Lengte | 24.4 cm |
Breedte | 21.3 cm |
