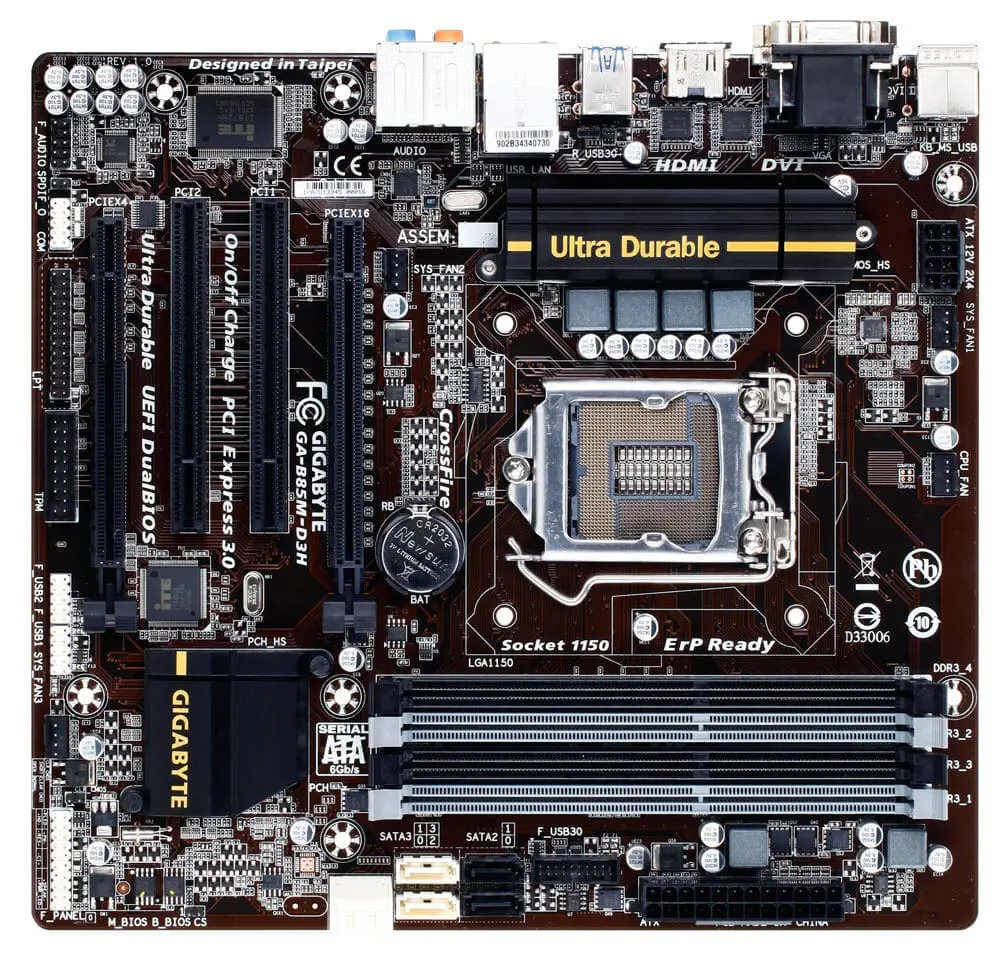

GA-B85M-D3H socket 1150 moederbord

0 op voorraad

Snelle levering

Merk: Gigabyte
Model:GA-B85M-D3H
Socket: LGA1150
Chipset: Intel B85
Geheugen: 4x DDR3 (32GB Max)
Form-Factor: M-ATX
EAN: 4719331817275


Artikelnummer: GA-B85M-D3H Categorieën: , Tags: , ,

Product informatie

Het GA-B85M-D3H moederbord is een Micro-ATX moederbord met plaats voor 4 DDR3 geheugen modules, met een maximum van 32GB. Het GA-B85M-D3H moederbord is voorzien van twee PCI sloten en een PCI-e 3.0 x16 slot. het is een behendig moederbord die prima in de kleinere behuizingen past.

Specificaties:
 moederbord – Socket LGA1155 – Intel B85 -chipset – 2x PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16 | 8x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D-Sub)

Product: GA-B85M-D3H
Categorie: Moederborden
Merk: Gigabyte
EAN: 0818313017246, 4719331817275
SKU:
B85M-D3H, GA-B85M-D3H

Drivers voor de Asus GA-B85M-D3H
Processoren die door de GA-B85M-D3H worden ondersteund

Opmerking: dit is een refurbished moederbord dat is bijgewerkt met de nieuwste BIOS-versie, de garantieperiode van het product is 6 maanden.

pakketinhoud:
– Moederbord
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)


Chipset
Intel® B85 Express Chipset


Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)


Onboard Graphics
Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz
* Support for HDMI 1.4a version.
Maximum shared memory of 1GB


Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out


LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI slots


Chipset:

4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) supporting up to 4 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 0/1) supporting up to 2 SATA 3Gb/s devices


USB Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

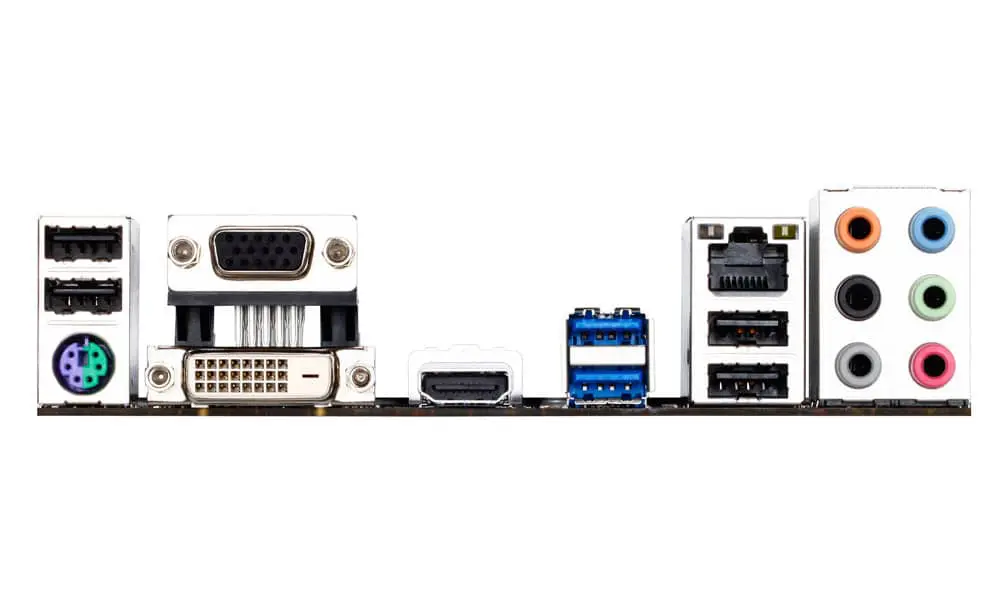

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)


I/O Controller
iTE® I/O Controller Chip


H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.


BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)


Operating System
Support for Windows 10/8.1/8/7


Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm

Specificaties

Gewicht1 kg
Intel

Socket 1150

Merk

Gigabyte

Chipset

Intel B85

Formaat

Micro-ATX

Geheugentype

DDR3

Aantal geheugenslots

4

Maximale geheugengrootte

32 GB

Aansluitingen

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.0

Opslag interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket
