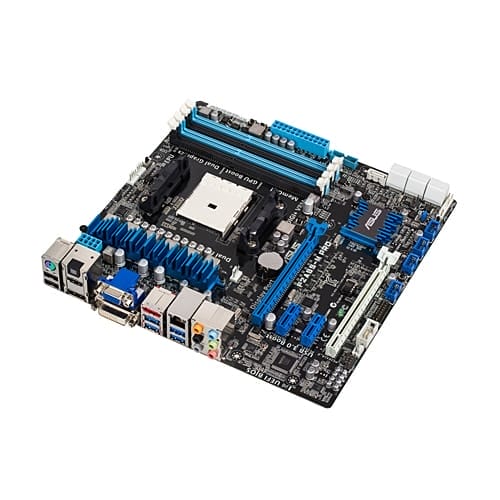

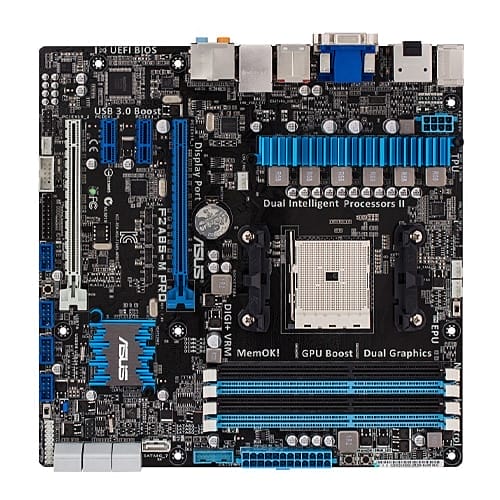

Asus F2A85-M PRO AMD FM2 motherboard

The Asus F2A85-M PRO  is a Micro-ATX Socket FM2+ motherboard based on the AMD A85 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus F2A85-M PRO has 7 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | AMD FM2+| 4x DDR3 | 7x SATA 600 | PCI-e 2.0 x1 | 2x PCI-e 3.0 x16 | LAN | eSATA | 10x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s) | DisplayPort | HDMI | VGA (D Sub)

Product: Asus F2A85-M PRO
Socket: AMD FM2
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
Warranty: 6 months

Package contents:
– Motherboard (F2A85-M PRO)
– Backplate (blende)
– No manual
– No drivers CD
– No cables

CPU
AMD Socket FM2

Chipset
AMD A85

Memory
4xDIMM, Max. 64GB, DDR3 1333.1600.1866MHz Non-ECC, Unbuffered Memory
Dual Channel Memory Architecture

Expansion Slots
2 x PCIe 2.0 x16
2 x PCIe 2.0 x1

Storage
7 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10, JBOD

LAN
Realtek RTL8111F

Audio
Realtek ALC887-VD 8-Channel High Definition Audio CODEC

USB Ports
10x USB 2.0, 6x USB 3.2 (Gen1, 5Gb/s)

Operating System Support
Windows® 8
Windows® 7

Back I/O Ports
2x USB 2.0
4x USB 3.2 Gen 1 (3.1 Gen 1) Type-A
1x Ethernet LAN (RJ-45)
1x eSATA
1x PS/2
1x VGA (D Sub)
1x HDMI ports
1x DVI-D ports
1x DisplayPorts
1x Microphone in
1x S/PDIF out

Internal I/O Ports
4x USB 2.0 connectors
1x USB 3.2 Gen 1 (3.1 Gen 1) connectors
7x Number of SATA III connectors
1x S/PDIF out connectorY
1x Front panel audio connector
1x ATX Power connector (24 pin)
1x Number of EATX power connectors
1x CPU fan connector
3x Number of chassis fan connectors
1x Chassis intrusion connector
1x EPS power connector (8 pin)
1x Number of COM connectors
1x TPM connectorYes

Accessories
I/O Shield

Form Factor
Micro ATX Form Factor

BIOS
64 Mb, UEFI – ACPI 2.0a
