Description

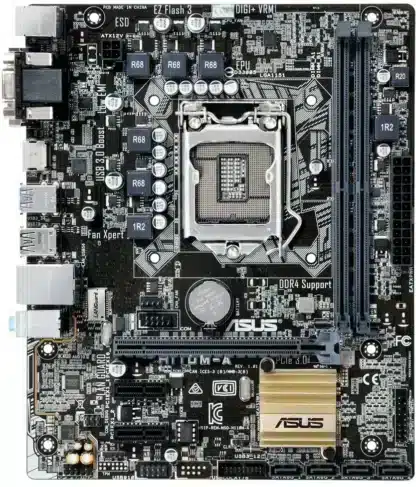

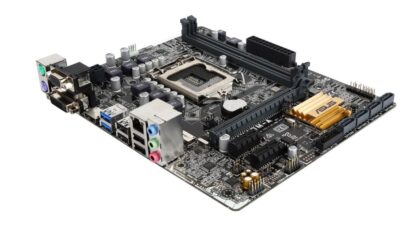

The Asus H110M-A is a Micro ATX Socket 1151 motherboard based on the Intel H110 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.
Features: Motherboard – M-ATX | Socket 1151 6th, 7th Gen | 2x DDR4 | Intel® H110 Chipset | DVI-D | VGA (D-Sub)| HDMI | USB 3.0 | USB2.0 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Sata-600
Product: Asus H110M-A
Socket: Socket 1151
Suitable for: 6th and 7th generation processors
Category: Motherboards
Brand: ASRock
EAN: 4712900194050
Condition: Used
SKU: 90MB0P30-M0EAY0, H110M-A
Warranty: 6 Months
package content:
– Motherboard (Asus H110M-A)
– Backplate (blende)
– no manual
– no driver CD
– no cables
CPU
LGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3, Pentium®, and
Celeron® processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list
Chipset
Intel® H110 Chipset
Memory
2x DIMM, max 32 GB, DDR4 2133 MHz, non-ECC, unbuffered memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode
will run at the maximum transfer rate of DDR4 2133 Mhz.
Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)
2 x PCI Express 2.0 x1 slots
Graphics
Integrated graphics processor – Intel® HD Graphics support
Multi-VGA output support: HDMI, DVI-D, D-Sub ports
– Supports HDMI with maximum resolution of 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
– Supports DVI-D with maximum resolution of 1920 x 1200 @60Hz
– Supports D-Sub with maximum resolution of 1920 x 1200 @60Hz
Maximum shared memory or 1024 MB
Storage
Intel® H110 Chipset
– 4 x SATA 6.0 Gb/s ports (gray)
LAN
Intel® I219V Gigabit LAN supports LANGuard
Audio
Realtek® ALC887 8 Channel High Definition Audio CODEC
Gaming Audio:
– LED-illuminated design: Brighten up your build with the gorgeous illuminated audio trace path
– Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right tracks to ensure both channels deliver consistent, equal quality
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB
Intel® H110 Chipset – supports ASUS USB 3.0 Boost
– 4 x USB 3.0 / 2.0 ports (2 ports at mid-board; 2 ports at the rear panel)
– 6 x USB 2.0 / 1.1 ports (2 ports at mid-board; 4 ports at the rear panel)
Rear panel I/O ports
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DVI-D port
1 x D-Sub port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output*
* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
Internal connectors
1 x USB 3.0 / 2.0 connector supports additional 2 USB 3.0 / 2.0 ports
1 x USB 2.0 / 1.1 connector supports additional 2 USB 2.0/ 1.1 ports
4 x SATA 6.0 Gb/s connectors
1 x 4-pin CPU fan connector
1 x 4-pin Chassis Fan connector
1 x Front panel audio connector (AAFP)
1 x S/PDIF Out connector
1 x COM header
1 x 24-pin EATX power connector
1 x 4-pin ATX 12V power connector
1 x Clear CMOS header
1 x Speaker connector
1 x System panel connector
BIOS features
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3,
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
OS support
Windows® 10 (64-bit),
Windows® 8.1 (64-bit),
Windows® 7 (32-bit / 64-bit) *
* Please refer to ASUS official website and download “Windows® 7 installation guide”
and “ASUS EZ installer” to install Windows® 7.
Form factor
uATX form factor: 8.9 in. x 7.3 in. (22.6cm x 18.5cm)
