Product information

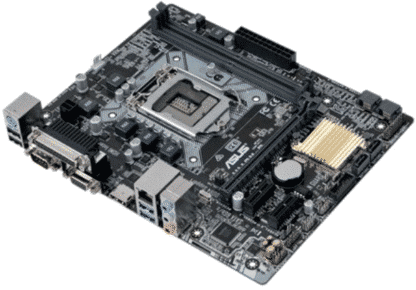

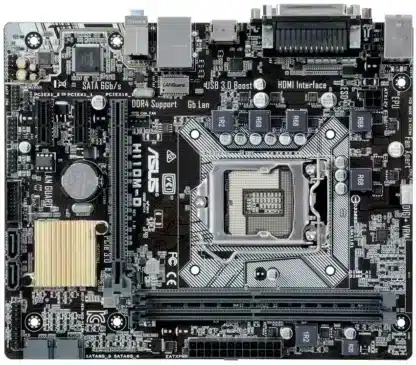

The Asus H110M-D is a Micro ATX Socket 1151 motherboard based on the Intel H110 chipset. The board needs to be paired with DDR4 memory, for which 2 slots are available. The onboard sound card provides 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard – M-ATX | Socket 1151 6th, 7th Gen | DDR4 | Intel® H110 Chipset | VGA (D-Sub)| HDMI | USB 3.0 | USB2.0 | PCI-e 3.0 x1 | PCI-e 3.0 x16 | Sata-600

Product: Asus H110M-D
Socket: Socket 1151
Compatible with: 6th and 7th generation processors
Category: Motherboards
Brand: ASRock
EAN: 4054842098134, 4712900284409
Condition: Used, latest BIOS version is installed
SKU: 90MB0PY0-M0EAY0, H110M-D
Warranty: 6 Months

Package Contents:

Motherboard (Asus H110M-D)
IO-Shield (metal backplate)
No manual
No driver CD
No cables

CPU
LGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3, Pentium®, and Celeron® processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.

Chipset:
Intel® H110 Express Chipset

Memory
2 x DIMM, maximum 32 GB, DDR4 2133 MHz, non-ECC, un-buffered memory*
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum speed of DDR4 2133 MHz.

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
2 x PCI Express 2.0 x1 slots

Graphics
ntegrated graphics processor – Intel® HD Graphics support Multi-VGA output support: HDMI, D-SUB ports
– Supports HDMI with maximum resolution of 4096 x 2160 @ 24Hz / 2560 x 1600@60Hz
– Supports D-SUB with maximum resolution of 1920 x 1200 @ 60Hz
Supports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology, and Intel® InsiderTM
Maximum shared memory of 1024 MB

Storage
Intel® H110 Express Chipset and Intel Rapid Storage Technology 14 support*
– 4 x SATA 6.0 Gb/s connectors
* This function works depending on the type of CPU installed.

LAN
Realtek® 8111H Gigabit LAN supports LANGuard

Audio
Realtek® ALC887 8-channel High Definition Audio CODEC
– Supports Jack-Detection and Front Panel Jack-Retasking Gaming Audio
– LED illuminated design: Brightens up your build with the gorgeous illuminated audio trace path.
– Audio shielding: Ensures precision analog/digital separation and greatly-reduced multi-lateral interference.
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of sensitive audio signals.
– Premium Japanese-made audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity.
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

USB
Intel® H110 Express Chipset – supports ASUS USB 3.0 Boost
– 4 x USB 3.0/2.0 ports (2 ports at mid-board; 2 ports at the rear panel)Intel® H110 Express Chipset
– 6 x USB 2.0/1.1 ports (4 ports at mid-board; 2 ports at the rear panel)

Rear panel I/O ports
1x PS/2 Keyboard/mouse combo port
2x USB 3.0/2.0 ports
2x USB 2.0/1.1 ports 1 x HDMI port
1x D-SUB port
1x LAN (RJ-45) port 1 x LPT port
1x COM port
3x Audio jacks support 8-channel audio output*
* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.

Internal connectors
1x USB 3.0 / 2.0 connector supports additional 2 USB 3.0/ 2.0 ports (9-pin)
2x USB 2.0 / 1.1 connectors support additional 4 USB 2.0/ 1.1 ports
4x SATA 6.0 Gb/s connectors
1x 4-pin CPU fan connector for 4-pin PWM mode
1x 4-pin Chassis fan connector for 4-pin PWM & DC mode 1 x Front panel audio connector (AAFP)
1x S/PDIF out connector
1x 24-pin EATX power connector 1 x 4-pin ATX 12V power connector 1 x TPM connector
1x System panel connector

BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE

OS
support Windows® 10 (64-bit)
Windows® 8.1 (64-bit) Windows® 7 (32-bit / 64-bit)*
* Please refer to ASUS website and download “Window® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.

Form factor
uATX form factor: 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
