Description
Features: Motherboard – M-ATX | Socket 1151 6e, 7e generation | 4x DDR4 | Intel ® H170 Chipset | M.2 | SATA-600 | Sata-Express | PCI-e 3.0 x1 | PCI-e 3.0 x16 | USB 2.0 | 8x USB 3.2 (Gen1, 5Gb/s)| HDMI | DVI-D

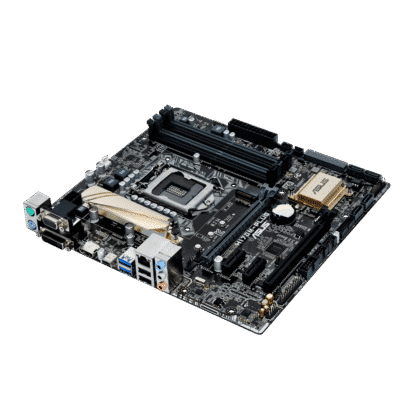

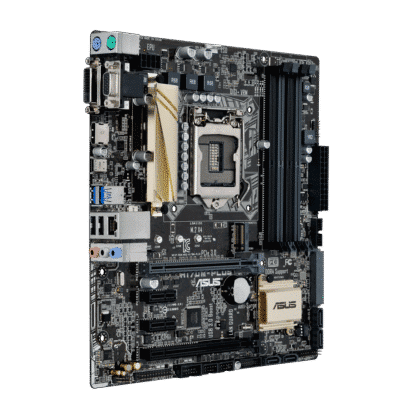

Product: Asus H170M Plus
Socket: Socket 1151
Suitable for: 6th and 7th generation processors
Category: Motherboards
Brand: Asus
EAN: 4712900150025
Condition: Refurbished – Bios updated to the latest version
SKU:90MB0MT0-M0EAY0, H170M-PLUS
Warranty: 6 Months
package contents:
– Motherboard (Asus H170M Plus)
– Backplate (blende)
– no manual
– no driver CD
– no cables
processor
LGA1151 Socket for Intel® 6th Generation Core™ i7 / i5 / i3, Pentium® and
Celeron® processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* Intel® Turbo Boost Technology 2.0 support is dependent on CPU type.
** Refer to www.asus.com for a list of Intel® CPU support.
Chipset
Intel® H170 Express chipset
Memory
4 x DIMM, up to 64 GB, DDR4 2133 MHz, non-ECC, unbuffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support depends on the physical characteristics of individual CPUs.
Refer to Memory QVL (Qualified Vendors List) for more information.
Graphic
Integrated graphics processor – Intel® HD Graphics support
Multiple VGA output support: HDMI, DVI-D, RGB ports
– Supports HDMI with maximum resolution of 4096 x 2160 @24Hz / 2560 x 1600@60Hz
– Supports DVI-D with maximum resolution of 1920 x 1200 @60Hz
– Supports RGB with a maximum resolution of 1920 x 1200 @60Hz
Supports up to three displays simultaneously
Supports Intel® InTruTM 3D, Quick Sync Video, Intel® Clear Video HD Technology, and Intel® InsiderTM
Maximum shared memory of 1024 MB
Expansion Slot
1 x PCI Express 3.0/2.0 x16 slot (in x16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max in x4 mode)
2 x PCI Express 3.0/2.0 x1 slots
Multi GPU
Support Supports AMD® Quad-GPU CrossFireX™ technology
Audio
Realtek® ALC887 7.1 Channel High Definition Audio CODEC
Audio features
– Audio shielding: Provides precise analog/digital separation and greatly reduced multilateral interference
– Dedicated audio PCB layers: separate layers for left and right channels to monitor the quality of the sensitive audio signals
– Japanese-made premium audio capacitors: provide warm, natural and immersive sound with exceptional clarity and fidelity.
– Supports front panel jack detection and jack retasking.
Storage
Intel® H170 Express chipset supporting RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 14
– 1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
– 1 x M.2 Socket 3 with M Key, support type 2242/2260/2280 storage devices (both SATA and PCIE mode)
– 6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)
– Supports Intel® Smart Response Technology*
* These functions work depending on the type of CPU installed.
LAN
Intel I219-V Gigabit LAN
Dual connection between the integrated Media Access Controller (MAC) and the physical layer (PHY)
USB
Intel® H170 Express chipset – supports ASUS USB 3.0 Boost
– 6 x USB 3.0/2.0 ports (4 ports on the mid-board, 2 ports on the back panel, blue, Type A)
– 1 x USB 5Gb/s Type C port supports 3A output power
– 6 x USB 2.0/1.1 ports (4 ports on the mid-board, 2 ports on the back panel)

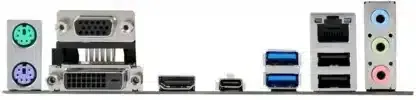

I/O ports on the back panel
1 x PS/2 Keyboard Port (Purple)
1 x PS/2 mouse port (green)
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN Port (RJ-45).
1 x USB 5Gb/s Type C port
2 x USB 3.0/2.0 ports (Type A, blue)
2 x USB 2.0/1.1 ports
3 x audio jacks support 7.1 channel audio output*
* Use a chassis with HD audio module in the front panel to support 8 channel audio output.

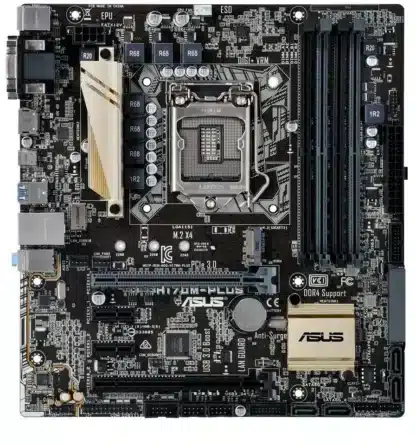

Internal I/O connectors
2 x USB 3.0/2.0 connector supports 4 additional USB 3.0/2.0 ports (19 pin)
2 x USB 2.0/1.1 connectors support 4 additional USB 2.0/1.1 ports
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices)
1 x SATA Express connector (compatible with 2 x SATA 6.0 Gb/s ports)
6 x SATA 6.0 Gb/s connectors (gray; 2 from SATA Express)
1 x 4 Pin CPU Fan Connector (PWM Mode)
2 x 4-pin chassis fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) cooler control
1 x Front Panel Audio Jack (AAFP)
1 x S/PDIF Out Header
1 x COM connector
1 x LPT Connector
1 x TPM Headpiece
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x system panel connector*
1 x Clear CMOS Jumper
* Chassis intrusion header is built into the system panel connector.
BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0,
ACPI 5.0, Multilingual BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS
3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last
Modified Log, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
OS support
Windows® 10 (64-bit)
Windows® 8.1 (64-bit)
Windows® 7 (32-bit/64-bit)*
* Refer to ASUS official website and download “Windows® 7 Installation
Guide” and “EZ Installer” to install Windows® 7.
Form Factor
Micro-ATX form factor: 9.6 in x 8.95 in (24.4 cm x 22.7 cm)
