Asus H61M-E

Merk: Asus
Model: H61M-E
Socket: LGA1155
Chipset: Intel H61
Geheugen: 2x DDR3 (16GB Max)
Form-Factor: M-ATX
EAN: 4716659404422

Out of stock

Vergelijk
SKU: H61M-E Categories: , , Tags: , ,

Description

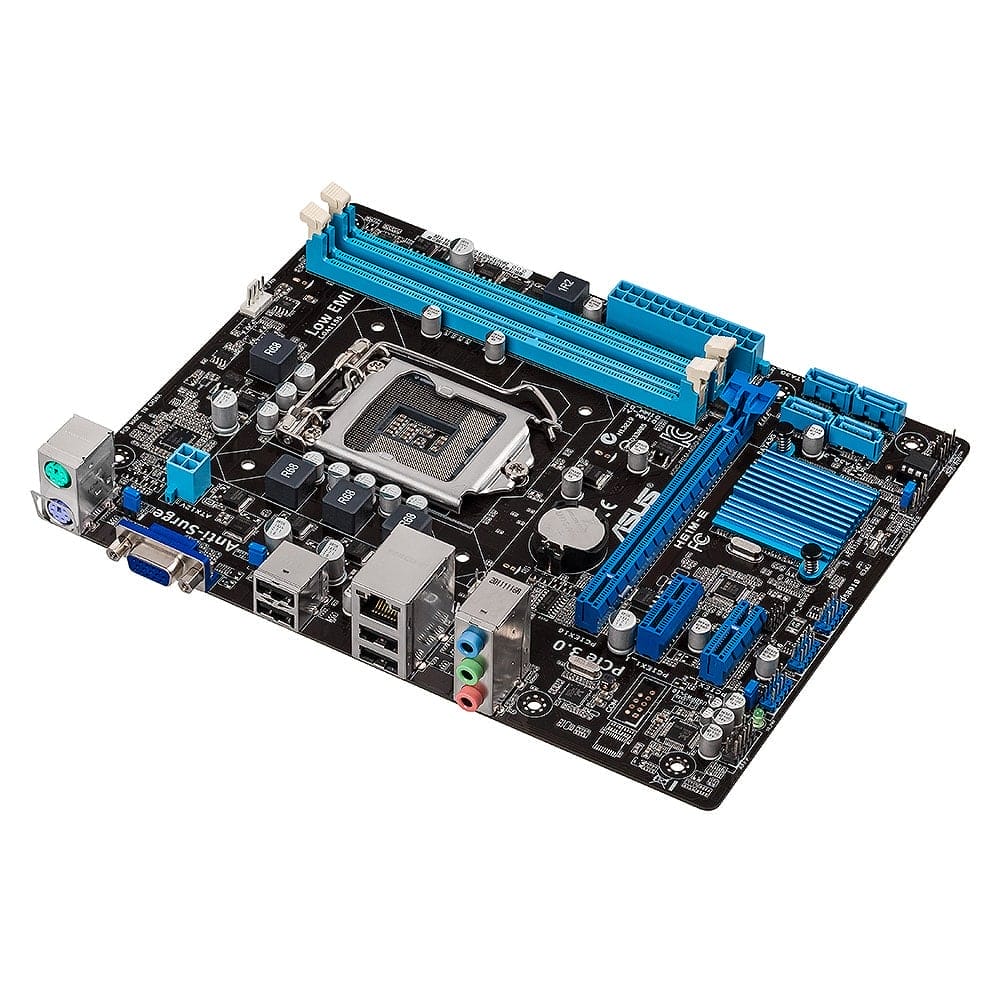

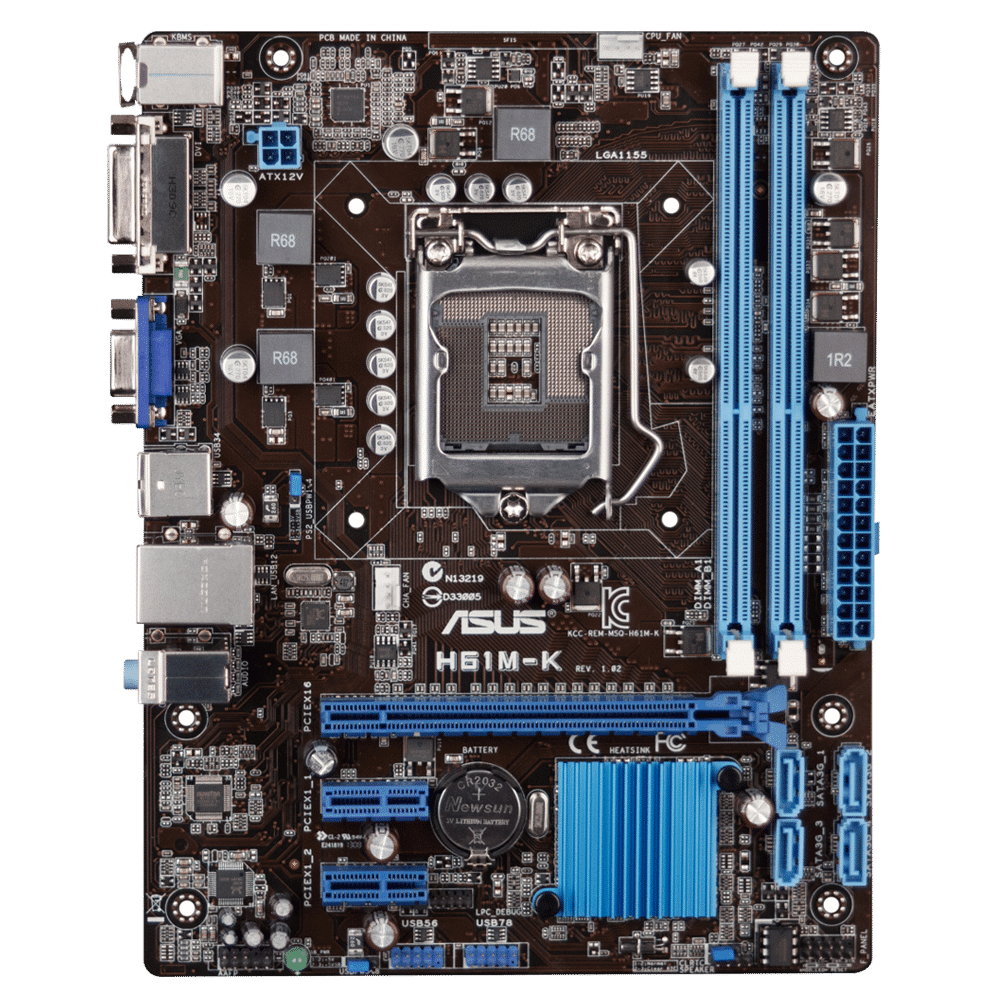

The Asus H61M-E socket 1155 motherboard is a Micro-ATX motherboard with room for 2 DDR3 memory modules, with a maximum of 16GB. The H61M-K motherboard features two PCI-e x1 slots and one PCI-e 3.0 x16 slot. it’s a nimble motherboard that fits nicely into the smaller cases.

Specifications:
 motherboard – LGA1155 – Intel H61 chipset – 2 x DDR3 up to 16 GB – Gigabit Ethernet – SATA – PCI-e 3.0 – VGA

Product: Asus Asus H61M-E Socket 1155 motherboard
Category: Motherboards
Brand: Asus
EAN: 4716659404422
SKU:
90MB0EN0-M0EAY0

Drivers for ASUS H61M-E
Processors used by the ASUS H61M-E are supported

Note: This is a refurbished motherboard updated with the latest BIOS version, the product warranty period is 6 months.

package content:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 77W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list


Chipset
Intel® H61(B3)


Memory
2xDIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133/1866MHz memory module will run at DDR3 2000/1800MHz frequency as default.


Graphic
Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory or 1024 MB


Expansion Slots
1 x PCIe 3.0/2.0 x16 *1
2 x PCIe 2.0 x1


Storage
Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue


LAN
Realtek® 8111F, 1 x Gigabit LAN Controller(s)


Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2


USB Ports
Intel® H61(B3) chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)


Special Features
ASUS Exclusive Features :
– AI Suite II
– Ai Charger
– Anti Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
ASUS Quiet Thermal Solution :
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS Crash Free BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2

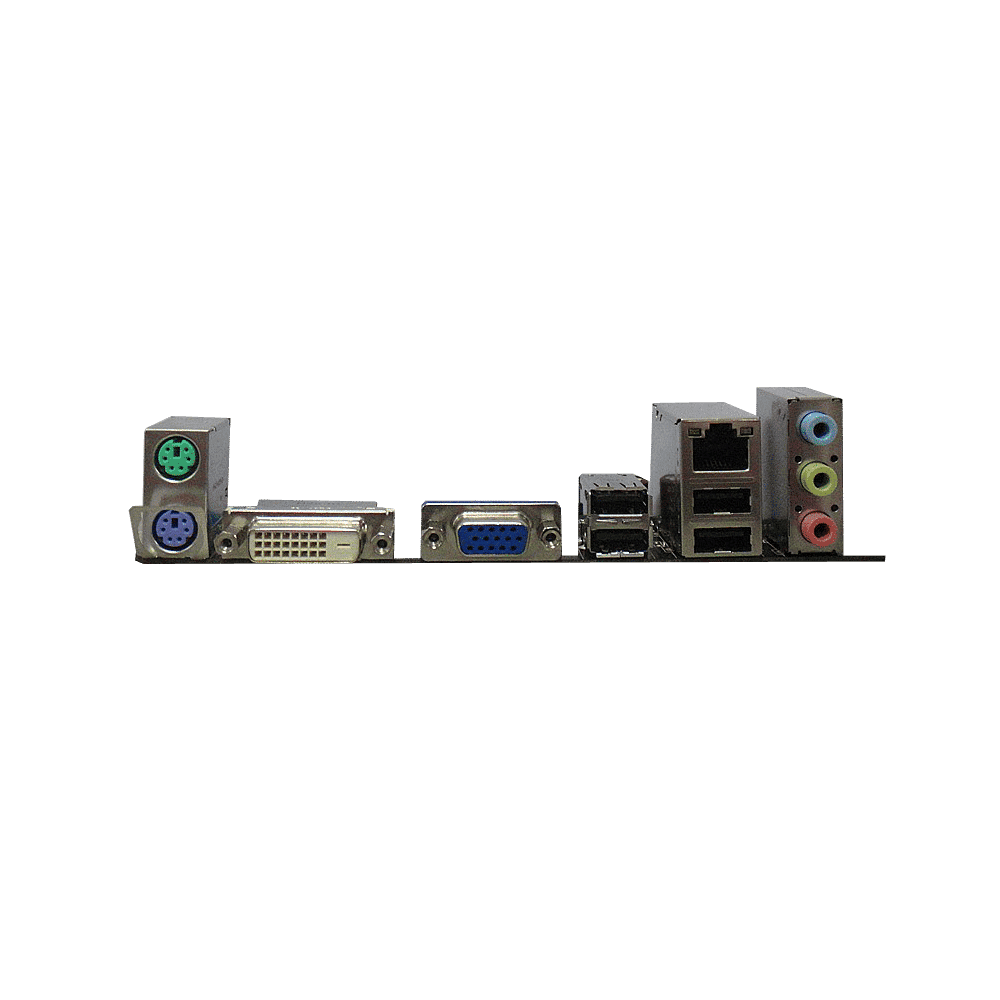

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)


Internal I/O Ports
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)


Accessories
I/O Shield


BIOS
64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP ready
manageability
WOL, PXE, PME Wake Up


Form Factor
uATX Form Factor
8.9 inches x 6.9 inches ( 22.6 cm x 17.5 cm )

Additional information

Weight 1 kg
Intel

LGA1155

Brand

Asus

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
