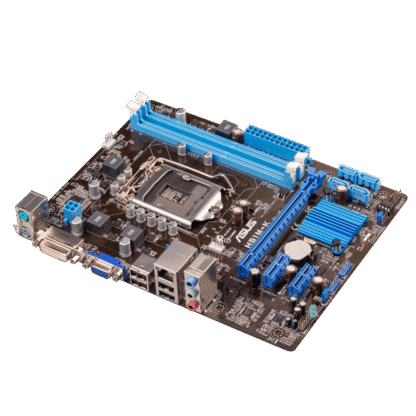

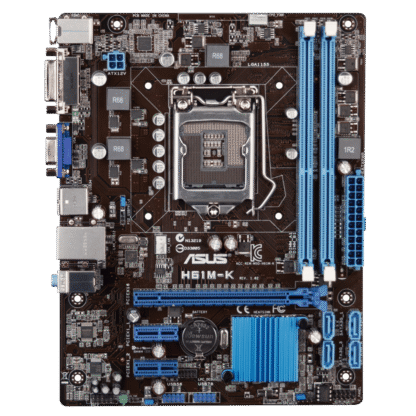

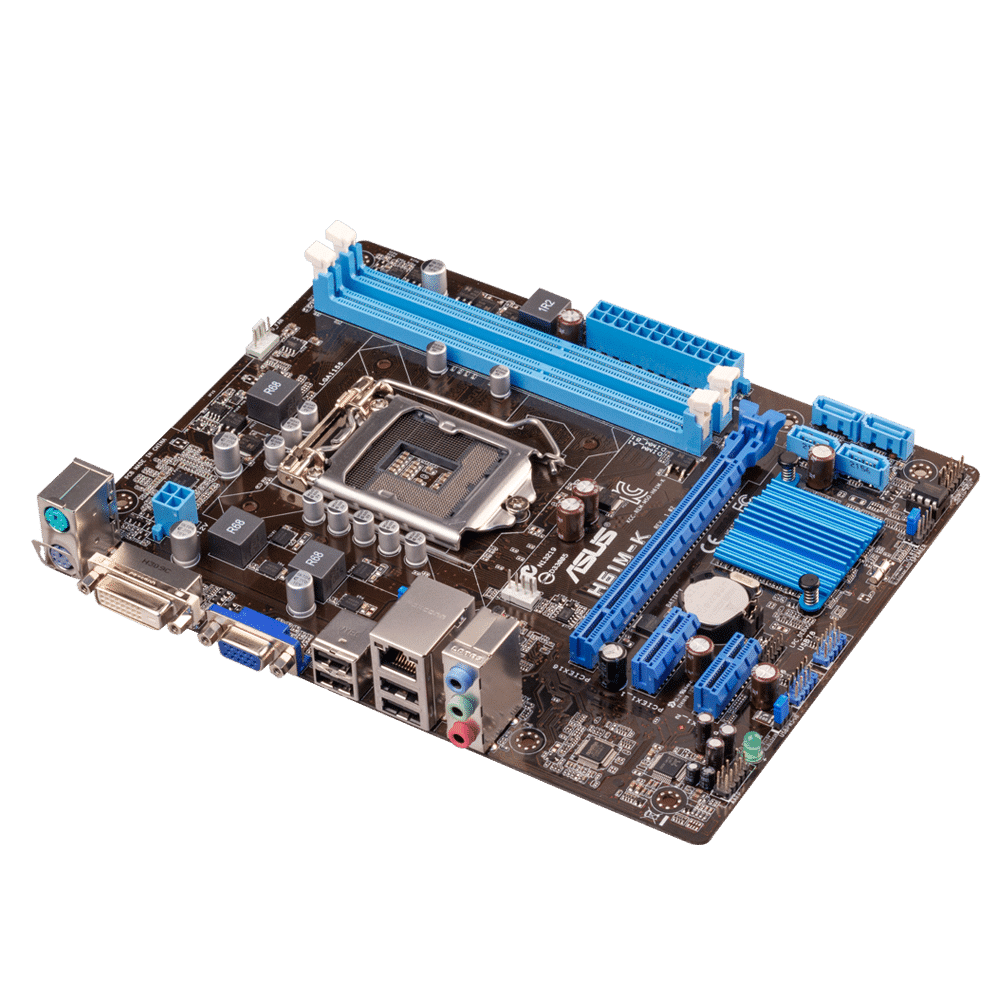

Asus H61M-K LGA1155 Motherboard

Brand: Asus
Model: H61M-K
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form-Factor: M-ATX
EAN: 4716659436225

Out of stock

Vergelijk
SKU: H61M-K Categories: , , Tags: , ,

Description

The Asus H61M-K socket 1155 motherboard is a Micro-ATX motherboard with space for 2 DDR3 memory modules, with a maximum of 16GB. The H61M-K motherboard has two PCI-e x1 slots and a PCI-e 3.0 x16 slot. it’s a nimble motherboard that fits nicely in the smaller cases.

Specifications:
motherboard – LGA1155 – Intel H61 chipset – 2 x DDR3 up to 16 GB – Gigabit Ethernet – SATA – PCI-e 3.0 – PCI – DVI – VGA

Product: Asus H61M-K Socket 1155 motherboard
Category: Motherboards
Brand: Asus
EAN: 4716659436225, 4716659587590
SKU:
90MB0FP0-M0EAY0, 90MB0FP0-M0UBY0, H61M-K

Drivers for the ASUS H61M-K
Processors supported by the ASUS H61M-K

Note: This is a refurbished motherboard.

Package Contents:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU
Intel® Socket 1155 for 3rd / 2nd Generation Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium® / Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 77 W.
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list


Chipset
Intel® H61 (B3)


Memory
2 x DIMM, Max. 16GB, DDR3 2200 (O.C.) / 2133 (O.C.) / 2000 (O.C.) / 1866 (O.C.) / 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* 1600MHz and higher frequency is supported by Intel® 3rd generation processors.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to the CPU behavior, DDR3 2133 / 1866MHz memory module will run at DDR3 2000 / 1800MHz frequency as default.


Graphic
Integrated Graphics Processor
Multi-VGA output support: DVI / RGB ports
Supports DVI with max. Resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. Resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1024 MB


Expansion Slots
1 x PCIe 3.0 / 2.0 x16 * 1
2 x PCIe 2.0 x1


Storage
Intel® H61 (B3) chipset:
4 x SATA 3Gb / s port (s), blue


LAN
Realtek® 8111F, 1 x Gigabit LAN Controller (s)


Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC * 2


USB Ports
Intel® H61 (B3) chipset:
8 x USB 2.0 port (s) (4 at back panel, black, 4 at mid-board)


Special Features
ASUS Exclusive Features:
– AI Suite II
– Ai Charger
– Anti-Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
ASUS Quiet Thermal Solution:
– ASUS Fan Xpert
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 2
– ASUS MyLogo 2

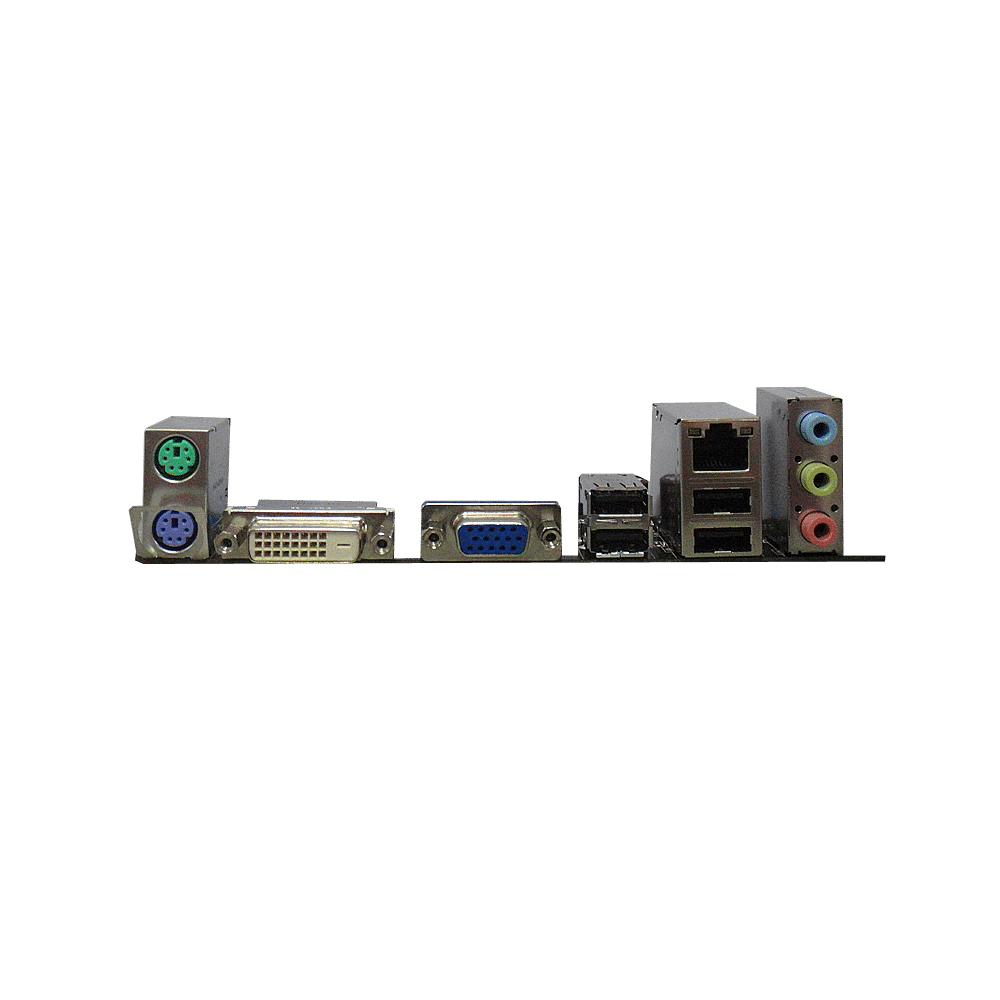

Back I / O Ports
1 x PS / 2 keyboard (purple)
1 x PS / 2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port (s)
4 x USB 2.0
3 x Audio jack (s)


Internal I / O Ports
2 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
4 x SATA 3Gb / s connector (s)
1 x CPU Fan connector (s) (4-pin)
1 x Chassis Fan connector (s) (4-pin)
1 x 24-pin EATX Power connector (s)
1 x 4-pin ATX 12V Power connector (s)
1 x Front panel connector (s)
1 x Front panel audio connector (s) (AAFP)
1 x Internal speaker connector (s)
1 x Clear CMOS jumper (s)


Accessories
I / O Shield


BIOS
64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a, SLP3.0, EUP ready
Manageability
WOL, PXE, PME Wake Up


Form Factor
uATX Form Factor
8.9 inch x 6.9 inch (22.6 cm x 17.5 cm)

Additional information

Weight 1 kg
Intel

LGA1155

Brand

Asus

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
