Product information

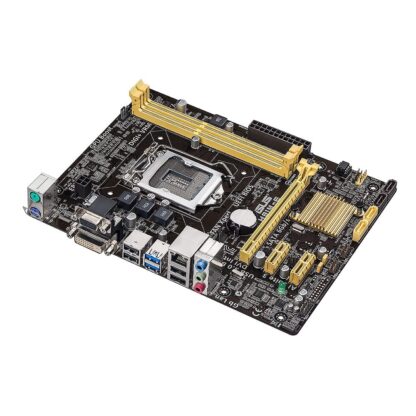

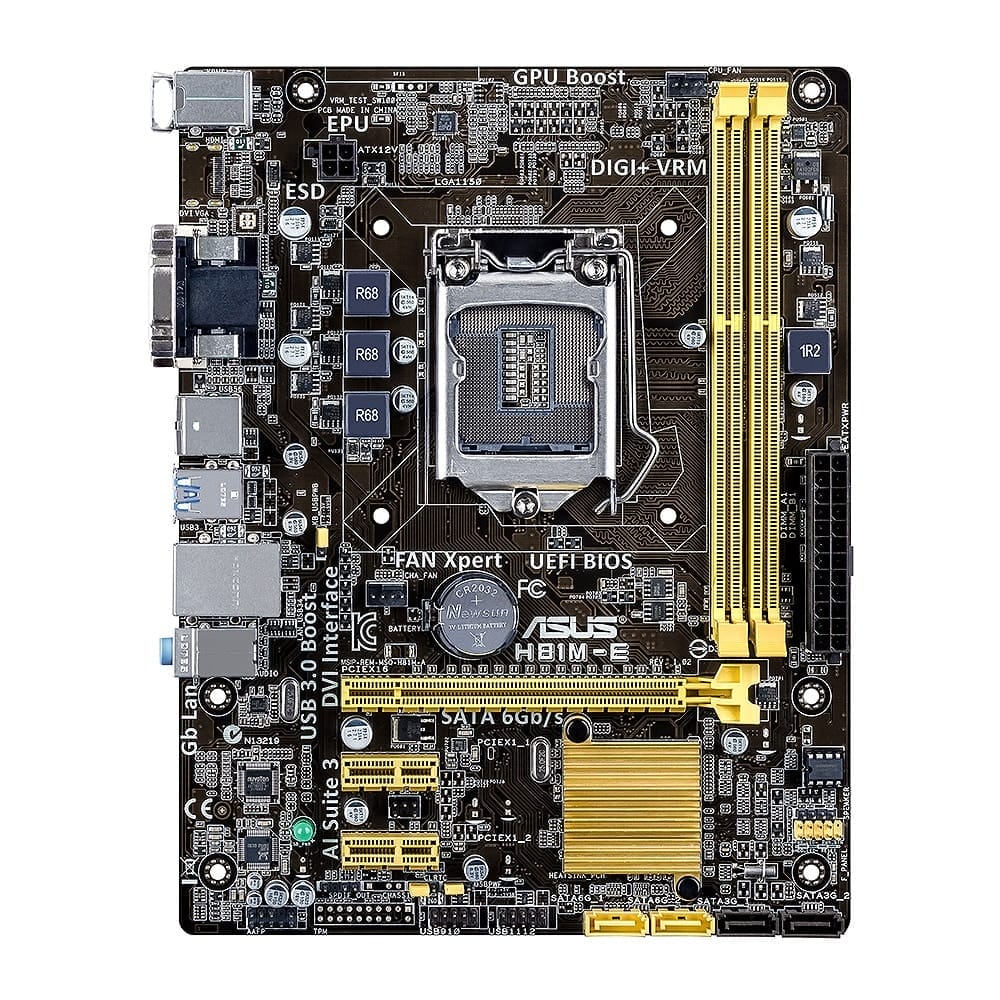

The Asus H81M-E is a Micro-ATX LGA1150 motherboard based on the Intel H81 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus H81M-E has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card offers 7.1-channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | Micro ATX | LGA1150 | 2x DDR3 | 2x SATA 600 | 2x SATA-300 | 1x PCI-e 2.0 x16| 2x PCI-e 2.0 x1 | USB 3.2 (Gen1.5 Gb/s) | USB 2.0  | DVI-D | D Sub (VGA)

Click here for the supporting CPUs
Click here for the drivers

Product: Asus H81M-E
Socket: LGA1150
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
0886227553075, 4716659553076
SKU: 90MB0GH0-M0EAY0, H81M-E
6 months

Package contents:
– Motherboard (Asus H81M-E )
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® H81

2xDIMM, Max. 16GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.

Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots
1 x PCIe x16
2 x PCIe 2.0 x1

Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Realtek ALC887/897 8-Channel High Definition Audio CODEC *2
– Supports : Front Panel Jack retasking, up to 24-Bit/192kHz playback

USB Ports
Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

Special Features
ASUS Exclusive Features :
– GPU Boost
-AI Suite 3
– Ai Charger
– Anti Surge
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Network iControl
– USB 3.0 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
– ASUS Crash Free BIOS 3
– ASUS EZ Flash 2
ASUS Q-Design :
– ASUS Q-Slot

Operating System Support
Windows® 8
Windows® 7

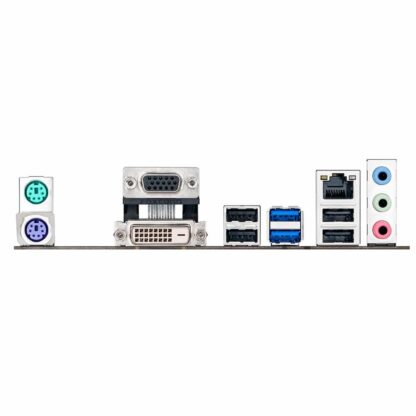

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

I/O Shield

64MB Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
WfM 2.0, DMI 2.0, WOL by PME, PXE

Form Factor
uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )


Weight 1 kg





Intel H81

Form Factor


Memory Type


Number of memory slots


Maximum memory size

16 GB


D-Sub (VGA), DVI-D, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-300, Serial ATA-600


PCI-e 2.0 x1, PCI-e 2.0 x16


Asus H81M-E LGA1150 motherboard

Fast delivery

Brand: Asus
Product: Asus H81M-E
Socket: Socket 1150
Category: motherboards
Memory: 2x DDR3 (16GB Max)
Form Factor: Micro-ATX
Condition: Used – BIOS updated to the latest version
6 months

SKU: H81M-E Categories: , , Tags: , ,
