Product information

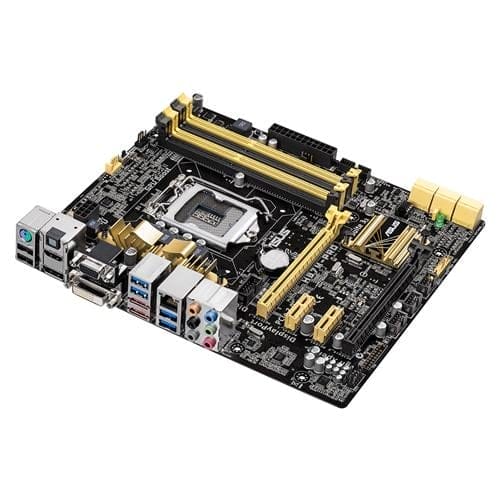

The Asus H87M-Pro  is a Micro-ATX LGA1150 motherboard based on the Intel H87 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus H87M-Pro has 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | LGA1150 | 4x DDR3 | 6x SATA 600 | 2x PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | LAN | 2x eSATA | 8x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s)| DisplayPort | DVI-D | HDMI | VGA (D Sub)

Click here for the supporting CPUs
Click here for the drivers

Product: Asus H87M-Pro
Socket: LGA1150
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:
0716659553649, 0886227486175, 4716659486176, 4716659553649
SKU: 90MB0F00-M0EAY0, 90MB0F00-M0EAY5, H87M-PRO, H87M-PRO(C1)
Warranty:
6 months

Package contents:
– Motherboard (AsusH87M-Pro)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables


CPU
Intel® Socket 1150 for 4rd Generation Core™ i7/Core™ i5/Core™ i3 Processors


Chipset
Intel H87


Memory
4xDIMM, Max. 32GB, DDR3 1600/1333MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)


Expansion Slots
2x PCI-e 2.0 x1,
1x PCI-e 2.0 x16,
1x PCI-e 3.0 x16


Storage
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10


LAN
iRealtek 8111G


Audio
Realtek® Realtek ALC892 8-Channel High Definition Audio CODEC
– Supports : Jack detection, Multi streaming, Front Panel Jack retasking


USB Ports
8x USB 2.0
6x USB 3.2 (Gen1, 5Gb/s)


Operating System Support
Windows® 8
Windows® 7


Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-I
1 x IEEE 1394a
2 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
6 x USB 2.0
1 x Coaxial S/PDIF out
1 x Optical S/PDIF out
6 x Audio jack(s)


Internal I/O Ports
1 x USB 3.1 Gen 1 connector(s)
3 x USB 2.0 connector(s)
1 x COM port(s) connector(s)
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s) (1 x 20-pin)
1 x Front panel audio connector(s) (AAFP)


Accessories
I/O Shield


Form Factor
Micro ATX Form Factor


BIOS
16MB Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash Utility, ASUS CrashFree BIOS 3

Specification

Weight 1 kg
Intel

LGA1150

Brand

Asus

Chipset

Intel H87

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), Displayport, DVI-D, eSATA, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Asus H87M-Pro LGA1150 motherboard

Fast delivery

Product: Asus H87M Pro Socket 1150;
Brand: Asus;
EAN: 4716659553649
SKU: 90MB0F00-M0EAY0
Condition: Used
Warranty:
6 Months


SKU: H87M-Pro Categories: , Tags: , ,

Pros and cons
According to our computer expert

  • 4 DDR3 Geheugensloten
