Product information

The Asus H97 Plus is an ATX LGA1150 motherboard based on the Intel H97 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. USB 3.0 provides the board 6x and USB 2.0 6x. In total, the Asus H97 Plus  has 6 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC892 chip.

Specifications: Motherboard – LGA1150 | ATX | Intel H97 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | DVI-D | HDMI | VGA (D-Sub) | 2x PCI | 3x PCI-e 2.0 x1 | PCI-e 3.0 x16 | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s)

Click here for the supporting CPUs
Click here for the drivers

Product: Asus H97 Plus
Category: Motherboards
Brand: Asus
EAN: 4717677323580
SKU: 90MB0IN0-M0EAY0
Condition: Refurbished – Bios updated to the latest version
Warranty:
6 Months

package content:
– Motherboard (Asus H97 Plus)
– Backplate (Blende)
– No manual
– No driver CD
– No cables


Processor
Compatibility: Intel® Core™ i3/i5/i7, Pentium®, Celeron®
Processor family: Intel
Processor socket: Socket 1150


Chipset: Intel H97
Expansion Modules
PCI Express 2.0 x1 slots: 2
PCI Express 2.0 x16 slots: 1
PCI Express 3.0 x16 slots: 1
PCI slots: 2


Memory
Number of memory slots: 4
Memory channels support: Dual
Memory slots type: DIMM
Non-ECC: No
Supported memory speeds: 1333, 1600 MHz
Supported Memory Types: DDR3-SDRAM
Unbuffered: No


Connections
Display port(s):No
DVI-D port(s): 1
DVI-I port(s): No
eSATA port(s): No
Ethernet LAN (RJ-45) port(s): 1
HDMI port(s): 1
Headphones:
PS/2 port(s): 2
S/PDIF (output): 1
USB 2.0 port(s): 2
USB 3.1 (Gen 1) type A port(s): 4
VGA (D-Sub) port(s): 1


Audio
Audio chip: Realtek ALC887
Audio output channels: 7.1


BIOS
BIOS memory : 64 MB
BIOS type: UEFI AMI
Clear CMOS jumper: Yes


Physical properties
Width: 305mm
Depth: 218 mm
Model: ATX


Internal connections
4-pin CPU fan connector(s): 1
4-pin system fan connection(s): 2
Connection for ATX power supply (24-pin): Yes
Front audio panel connector: Yes
Connection for CPU cooler: Yes
EPS power connector (8 pin): JKA
EPU switch: No
M.2 format support: 2260, 2280
M.2 port(s): 1
S/PDIF output: Yes
SATA III port(s): 6
SATA port(s): 6
TPM connector:
USB 2.0 Header: 3
USB 3.0 Header: 1


Network & Communication
Bluetooth: No
Wireless network (Wi-Fi): No
LAN controller: Realtek® 8111GR
Network standard: Gigabit Ethernet
Network Connection (Wired): Yes

Specification

Weight 1 kg
Intel

LGA1150

Brand

Asus

Chipset

Intel H97

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.1 Gen1

Storage Interfaces

M.2 (PCI-e 2.0 x2 + SATA), Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

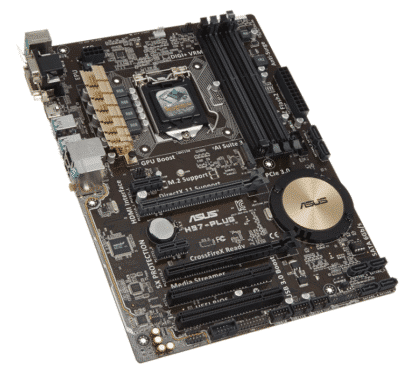

Asus H97 Plus LGA1150 motherboard

Fast delivery

Brand: Asus
Model: H97 Plus
Socket: LGA1150
Chipset: Intel H97
Memory: 4x DDR3 (32GB Max)
Form Factor: ATX
SKU: 90MB0IN0-M0EAY0


SKU: Asus-H97-Plus Categories: , , Tags: , ,

Pros and cons
According to our computer expert

  • 4 DDR3 geheugensloten
