Asus M4N68T V2 socket AM3 motherboard

Product: Asus M4N68T V2
Socket: Socket AM3
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
Warranty: 6 months

Out of stock

Vergelijk
SKU: Asus-M4N68T V2 Categories: , , Tags: , ,

Description

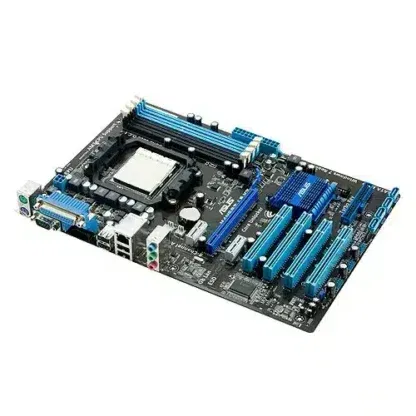

The Asus M4N68T V2  is an ATX Socket AM3 motherboard based on the AMD Nvidia GeForce 7025 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus M4N68T V2 has 4 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | ATX | AMD AM3| 4x DDR3 | SATA | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | LAN | USB 2.0 | Parallel Port

Product:Asus M4N68T V2
Socket: AMD AM3
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
Warranty: 6 months

Package contents:
– Motherboard (M4N68T V2)
– Backplate (blende)
– No manual
– No drivers CD
– No cables


CPU
AMD Socket AM3


Chipset
NVIDIA nForce 630a


Memory
4xDIMM, Max. 16GB, DDR3 1066.1333MHz MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture


Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe 2.0 x1
4x PCI


Storage
4 x SATA 3Gb/s port(s)
1x PATA-133
Support Raid 0, 1, 5, 10, JBOD


LAN
Realtek RTL8211CL


Audio
8-Channel High Definition Audio CODEC


USB Ports
7x USB 2.0


Operating System Support
Windows® 8
Windows® 7

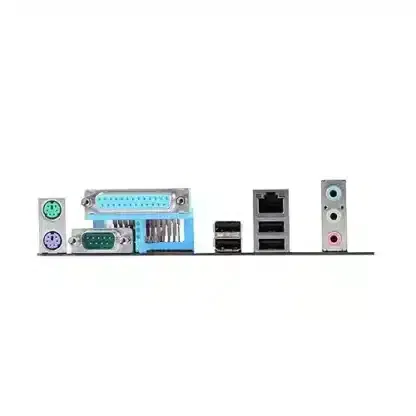

Back I/O Ports
4x USB 2.0
1x Ethernet LAN (RJ-45)
2x PS/2
1x VGA (D Sub)
1x Microphone in
1x S/PDIF out


Internal I/O Ports
3x USB 2.0 connectors
4x Number of SATA II connectors
1x S/PDIF out connector
1x Front panel audio connector
1x ATX Power connector (24 pin)
1x CPU fan connector
3x Number of chassis fan connectors
1x Chassis intrusion connector
1x power connector (4 pin)


Accessories
I/O Shield


Form Factor
ATX Form Factor


BIOS
8BM AMI, ACPI 2.0

Additional information

Weight 1 kg
AMD-en

AM3(+)

Brand

Asus

Chipset

NVIDIA® GeForce 7025 / nForce 630a

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

16 GB

Connectors

Ethernet (RJ-45), Parallel Port, Serial Port: COM1, USB 2.0

Storage Interfaces

PATA-133, Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
