Product information

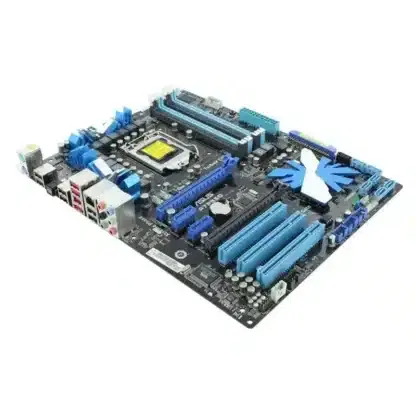

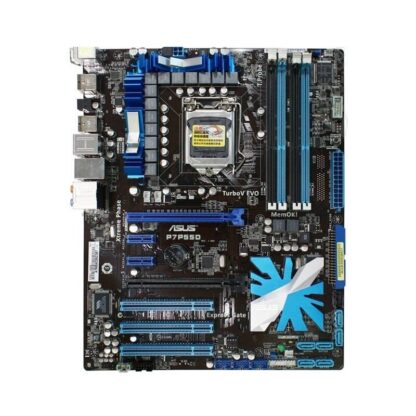

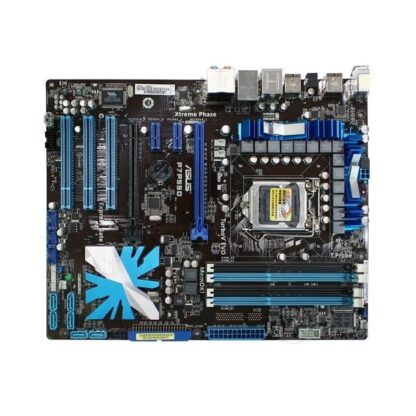

The Asus P7P55D is an ATX LGA1156 motherboard based on the Intel P55 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus P7P55D has 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | ATX | LGA1156 | 4x DDR3 | SATA-300 | PCI-e x16| PCI-e x1 |PCI | USB 2.0 | Firewire | eSata

Product:Asus P7P55D
Socket: LGA1156
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:0610839172665, 0610839172689, 4719543172667
SKU: 90-MIB960-G0EAY00Z, P7P55D
Warranty: 6 months

Package contents:
– Motherboard (Asus P7P55D)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

CPU
Intel® Socket 1156 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset
Intel® P55

Memory
4xDIMM, Max. 16GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory

Expansion Slots
1 x PCIe x16
2 x PCIe x1
3x PCI

Storage
Intel® P55 chipset :
6 x SATA 3Gb/s port(s)

LAN
Realtek® RTL8112L

Audio
– Analog (3.5mm), Digital Optical (S/PDIF)

USB Ports
Intel® P55 chipset :
14 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x eSata
8 x USB 2.0
2x IEEE 1394/Firewire ports

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (1 x 4-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
1x IEEE1394 connectors

Accessories
I/O Shield

Form Factor
ATX Form Factor
30.5cm x 24.4cm
