Product information

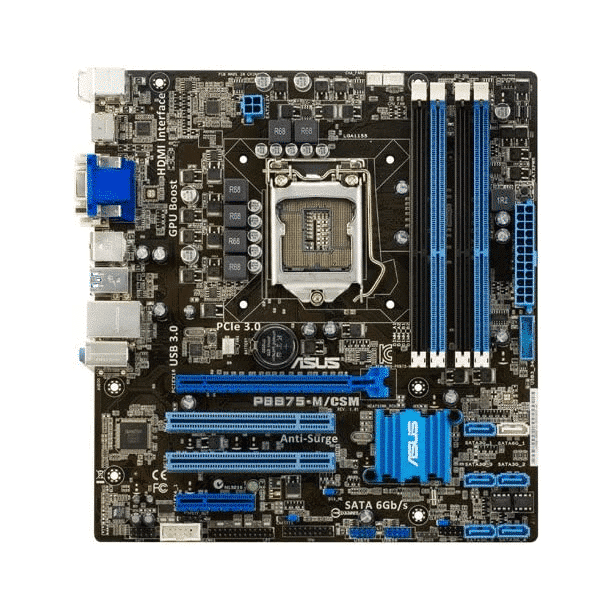

The Asus P8B75-M is a Micro-ATX Socket 1155 motherboard based on the Intel B75 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. The Asus P8B75-M has a total of 6 Serial ATA connections for hard disks and SSDs.

Features:Motherboard | Micro ATX | Socket 1155 | 4x DDR3 | SATA-300 | SATA-600 | PCIe 2.0 x16 | PCIe 2.0 x4 | PCI | USB2.0 | USB 3.0| VGA | HDMI | DVI-D

Product: Asus P8B75-M
Socket: Socket 1155
Category: motherboards
Brand: ASUS
EAN:0610839185269, 4719543185261, 6108391852698
Condition: Used
SKU: 90-MIBIB0-G0EAY0DZ, P8B75-M, P8B75-M/CSM
Warranty: 6 months

Package contents:
– Motherboard (Asus P8B75-M)
– Backplate (blende)
– No manual
– No driver CD
– No cables

processor
LGA1155 socket for Intel® 3rd/2nd generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium®/ Celeron® processors
Support Intel 22/32nm CPU
Supports Intel®Turbo Boost Technology 2.0

Chipset
Intel® B75 Express chipset

Memory
4x DIMM, max. 32 GB, DDR3 1600/1333/1066 MHz, non-ECC, unbuffered memory
Dual channel memory architecture

Graphic
Integrated graphics processor
Multiple VGA output support: HDMI, DVI-D and D-Sub ports
Supports HDMI with max. resolution of 1920 x 1200 @60Hz
Supports DVI with max. resolution of 1920 x 1200 @60Hz
Supports D-Sub with max. resolution of 2048 x 1536 @75Hz
Maximum shared memory of 1 GB

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot*
1 x PCI Express 2.0 x4 slot
2 x PCI slots
* PCIe 3.0 speed is supported by Intel® 3rd generation Core processors.

Storage
Intel® B75 Express Chipset:
– 5 x Serial ATA 3.0 Gb/s connectors (blue)
– 1 x Serial ATA 6.0 Gb/s connector (gray)

LAN
Realtek® 8111F-VB-CG PCIe Gigabit LAN controller

Audio
VIA® VT1708S 8-Channel* High Definition Audio CODEC
– Supports jack detection, multi-streaming, anti-pop function and jack retasking on the front panel
* Use a chassis with HD audio module in the front panel to support 8 channel audio output.

USB
Intel® B75 Express chipset
– 4 x USB 3.0/2.0 ports (2 ports on midboard, 2 ports on back panel)
– 8 x USB 2.0/1.1 ports (4 ports on midboard, 4 ports on back panel)

Ports on the rear panel
1 x PS/2 Keyboard Port (Purple)
1 x PS/2 mouse port (green)
1 x HDMI port
1 x DVI-D port
1 x D-Sub Port
1 x LAN Port (RJ-45).
4 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports (blue)
3 x audio jacks

Internal connectors/switches/buttons
1 x USB 3.0/2.0 connector supports 2 additional USB 3.0/2.0 ports
2 x USB 2.0/1.1 connectors support 4 additional USB 2.0/1.1 ports
5 x SATA 3.0 Gb/s connectors (blue)
1 x SATA 6.0 Gb/s connector (gray)
1 x CPU Fan Connector
2 x chassis fan connectors
1 x Chassis Intrusion Connector
1 x TPM connector
1 x COM connector
1 x LPT Connector
1 x Front Panel Audio Jack (AAFP)
1 x S/PDIF output connector
1 x system panel connector
1 x speaker connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Memo OK! knob
1 x Clear CMOS Jumper
1 x DIS_ME jumper

BIOS features
128 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0,
ACPI v2.0a, SM BIOS v2.5, multi-language BIOS, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, F12 PrintScreen function, F3 Shortcut function and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Accessories
1 x I/O Shield

Form Factor
MicroATX form factor: 9.6 in x 8.9 in (24.4 cm x 22.6 cm)
