Description

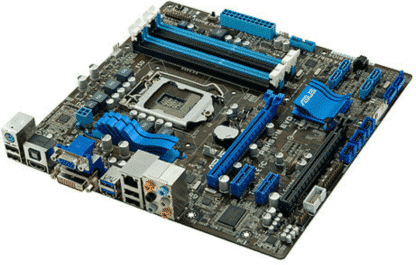

The Asus P8H61-M EVO is a Micro-ATX LGA1155 motherboard based on the Intel H61 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus P8H61-M EVO has 6 Serial ATA connections for hard drives and SSDs. The built-in sound card is based on a Realtek ALC887 chip.
Features: Motherboard | Micro ATX | LGA1155 | 4x DDR3 | 4x SATA-300 | 2x SATA 600 | PCI-e 2.0 x16 | 2x PCI-e 2.0 x1 | PCI | USB2.0 | USB 3.2 | DVI-D | HDMI | VGA (D Sub)
Product: Asus P8H61-M EVO
Socket: :LGA1155
Category: motherboards
Brand: ASus
EAN: 4719543181027
State: Used, with the latest BIOS version
SKU: 90-MIBG90-G0EAY0DZ, P8H61-M EVO, P8H61-M
Warranty: 6 months
Package contents:
– Motherboard (Asus P8H61-M EVO)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables
CPU
Processor manufacturer: Intel
Processor socket: LGA 1155 (Socket H2)
Compatible processor series: Intel® Core™ i3, Intel Core i5, Intel, Core i7
Chipset
– Intel® H61
Memory
Supported memory types: DDR3-SDRAM
Number of memory slots: 4
Memory channels: Dual channel
Non-ECC: Yes
Supported memory clock speeds: 1066.1333 MHz
Memory, maximum: 16 GB
BIOS
BIOS type: EFI
BIOS memory size: 32 Mbit
ACPI version: 2.0a
Graphics
Parallel processing technology support: Not supported
LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
LAN controller: Realtek RTL8111E
Network interface: Gigabit Ethernet
Slots
PCI Express x1 slots: 2
PCI Express x16 slots: 2
PCI Express slot version: 2.0
Storage
Supported storage drive interfaces: SATA II, SATA III
Connector
USB 2.0 connectors: 4
Number of SATA II connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1
Rear Panel I/O
USB 2.0: 4
USB 3.2: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
DVI-D Port quantity: 1
HDMI: 1
Headphone outputs: 1
Microphone in: Yes
Accessories
– I/O Shield
Form Factor
– Micro-ATX Form Factor: 24.4cm x 20.3cm
OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
