Product information

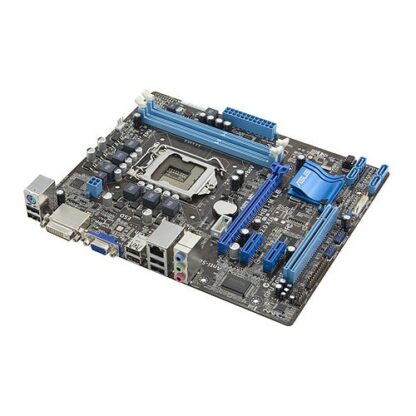

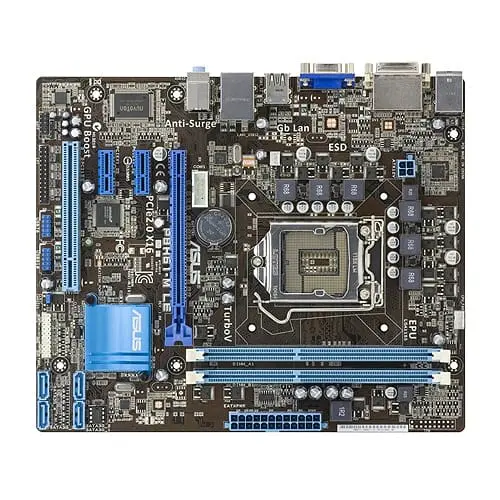

The Asus P8H61-M LE R2.0 is a Micro-ATX LGA1155 motherboard based on the Intel H61 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus P8H61-M LE R2.0 has 4 Serial ATA connectors for hard drives and SSDs. The built-in sound card is based on a Realtek ALC887 chip.


Features: Motherboard | Micro ATX | LGA1155 | 2x DDR3 | 4x SATA-300 | PCI-e 2.0 x16 | 2x PCI-e 2.0 x1 | PCI | USB2| DVI-D | VGA


Product: Asus P8H61-M LE R2.0
Socket: LGA1155
Category: motherboards
Brand: ASus
EAN: 0610839187478, 4719543187470
State: Used, with the latest BIOS version
SKU: 90-MIBJ40-G0EAY0GZ, P8H61-M LE R2.0
Warranty:
6 months

Package contents:
– Motherboard (Asus P8H61-M LE R2.0)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables


CPU
Processor manufacturer:  Intel
Processor socket:  LGA 1155 (Socket H2)
Compatible processor series : Intel® Core™ i3, Intel Core i5, Intel, Core i7


Chipset
– Intel® H61


Memory
Supported memory types: DDR3-SDRAM
Number of memory slots:  2
Memory channels:  Dual channel
Non-ECC: Yes
Supported memory clock speeds: 1066.1333 MHz
Memory, maximum: 16 GB


BIOS
BIOS type: EFI
BIOS memory size: 32 Mbit
ACPI version: 2.0a


Graphics
Parallel processing technology support: Not supported


LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
LAN controller: Realtek RTL8111E
Network interface: Gigabit Ethernet


Slots
PCI Express x1 slots: 2
PCI Express x16 slots: 1
PCI slots: 1
PCI Express slot version: 2.0


Storage
Supported storage drive interfaces: SATA II


Connector
USB 2.0 connectors: 4
Number of SATA II connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1

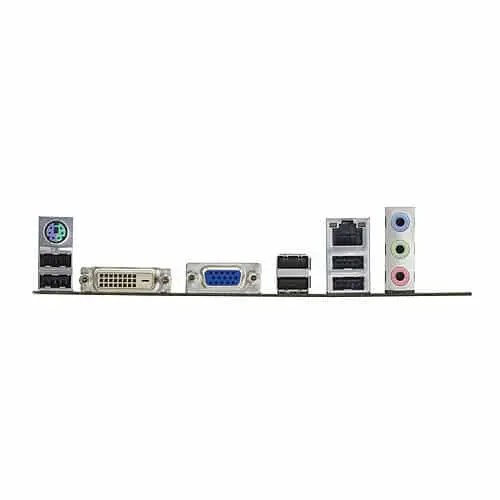

Rear Panel I/O
USB 2.0
port quantity : 6
Ethernet LAN (RJ-45) ports:  1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity:  1
DVI-D Port quantity: 1
Headphone outputs:  1
Microphone in: Yes


Accessories
– I/O Shield


Form Factor

– Micro-ATX Form Factor: 24.4cm x 20.3cm


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

Specification

Intel

LGA1155

Brand

Asus

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), USB 2.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

P8H61-M-LE-R2

Length

24.4 cm

Width

20.3

package content

Motherboard and Backplate (Blende)

Asus P8H61-M LE R2.0 LGA1155 motherboard

Fast delivery

Brand: Asus
Model: Asus P8H61-M LE R2.0
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form Factor: Micro-ATX
EAN: 0610839187478, 4719543187470
SKU: 90-MIBJ40-G0EAY0GZ, P8H61-M LE R2.0
