Asus P8H61-M LE/USB3

0 in stock

Fast delivery

Brand: Asus
Model: Asus P8H61-M LE / USB3
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form-Factor: Micro-ATX
EAN: 4719543180099
SKU: 90-MIBF66-G0EAY00Z, 90-MIBF66-G0UAY00Z, P8H61-M LE / USB, P8H61-M LE / USB3, P8H61-M LE / USB3


SKU: P8H61-M LE / USB3 Categories: , Tags: , ,

Product information

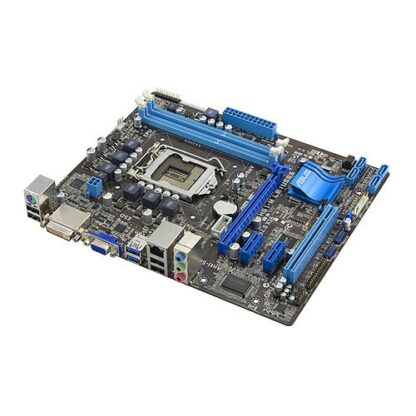

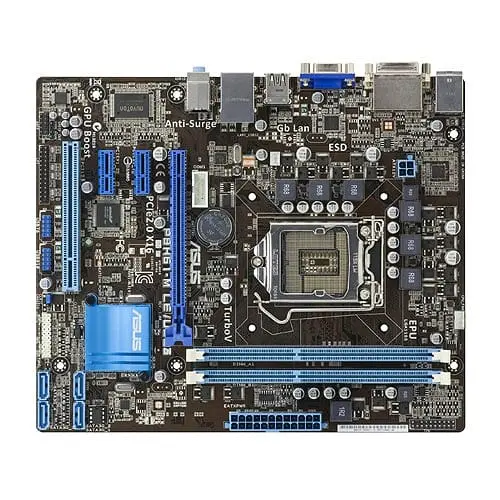

The Asus P8H61-M LE / USB3 is a Micro-ATX Socket 1155 motherboard based on the Intel H61 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus P8H61-M LE / USB3 has 4 Serial ATA connections for hard drives and SSDs. The built-in sound card is based on a Realtek ALC887 chip.

Features: Motherboard | Micro-ATX | Connection S1155 | 2x DDR3 | 4x SATA-300 | PCI-e 2.0 x16 | 2x PCI-e 2.0 x1 | 2x PCI | USB3 | DVI-D

Click here for the supporting CPUs
Click here for the drivers

Product: Asus P8H61-M LE / USB3
Connection: Socket 1155
Category: motherboards
Brand: ASus
EAN: 0610839180097, 4719543180099
Condition: Used
SKU: 90-MIBF66-G0EAY00Z, 90-MIBF66-G0UAY00Z, P8H61-M LE / USB, P8H61-M LE / USB3, P8H61-M LE / USB3
Warranty:
6 months

Package content:
– Motherboard (Asus P8H61-M LE / USB3)
– I / O-Shield (tin back plate)
– No manual
– No CD with drivers
– No cables


CPU
Processor manufacturer: Intel
Processor socket: LGA 1155 (Socket H2)
Compatible processor series: Intel® Core ™ i3, Intel Core i5, Intel, Core i7


Chipset
– Intel® H61


Memory
Supported memory types: DDR3-SDRAM
Number of memory slots: 2
Memory channels: Dual-channel
Non-ECC: Yes
Supported memory clock speeds: 1066.1333 MHz
Memory, maximum: 16 GB


BIOS
BIOS type: EFI
BIOS memory size: 32 Mbit
ACPI version: 2.0a


Graphics
Parallel processing technology support: Not supported


& nbsp;

LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
LAN controller: Realtek RTL8111E
Network interface: Gigabit Ethernet


Slots
PCI Express x1 slots: 2
PCI Express x16 slots: 1
PCI slots: 1
PCI Express slots version: 2.0


Storage
Supported storage drive interfaces: SATA II


Connector
USB 2.0 connectors: 2
Number of SATA II connectors: 4
S / PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1
TPM connector: Yes
Parallel connector: Yes

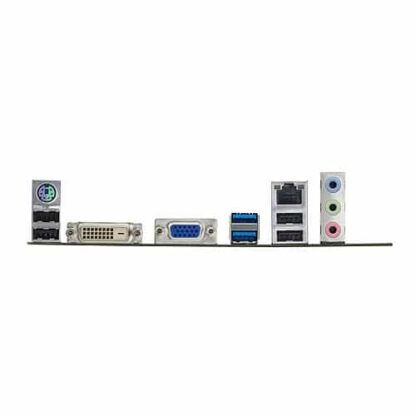

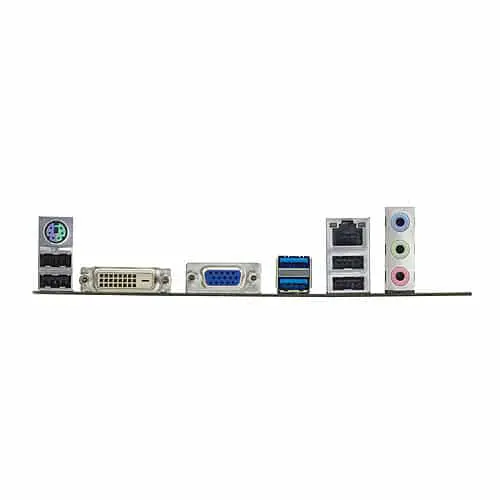

Rear Panel I / O
USB 3.2 Gen 1 (3.1 Gen 1): Type-A
ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS / 2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
Headphone outputs: 1
Microphone in: Yes


Accessories
– I / O Shield


& nbsp;

Form Factor
– Micro-ATX Form Factor: 24.4 cm x 20.3 cm


OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

Specification

Intel

LGA1155

Brand

Asus

Chipset

Intel H61

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket
