Description

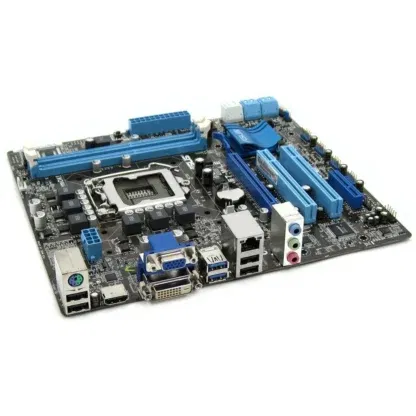

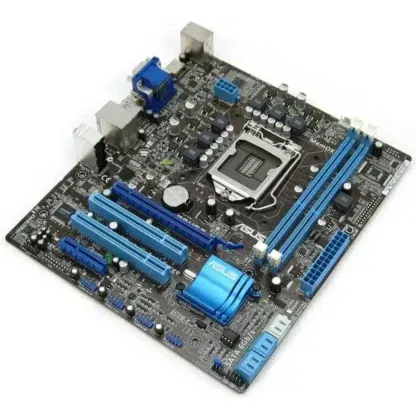

The Asus P8H67-M LE is a Micro-ATX LGA1155 motherboard based on the Intel H67 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus P8H67-M LE has 6 Serial ATA connections for hard drives and SSDs.
Features: Motherboard | Micro ATX | LGA1155 | 2x DDR3 | 4x SATA-300 | 2x SATA 600 | PCI-e 2.0 x16 | PCI-e 2.0 x1 | PCI | USB2.0 | USB 3.2 Gen 1 | VGA | HDMI | DVI-D
Product:Asus P8H67-M LE
Socket: Socket 1155
Category: motherboards
Brand: ASus
EAN: 4719543178041
State: Used, with the latest BIOS version
SKU: 90-MIBEN0-G0EAY0GZ, P8H67-M LE
Warranty: 6 months
Package contents:
– Motherboard (Asus P8H67-M LE)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables
CPU
Processor manufacturer: Intel
Processor socket: LGA 1155 (Socket H2)
Compatible processor series : Intel® Core™ i3, Intel Core i5, Intel, Core i7
Chipset
– Intel® H67
Memory
Supported memory types: DDR3-SDRAM
Number of memory slots: 2
Memory channels: Dual channel
Non-ECC: Yes
Supported memory clock speeds: 1066.1333 MHz
Memory, maximum: 16 GB
BIOS
BIOS type: EFI
BIOS memory size: 32 Mbit
ACPI version: 2.0a
Graphics
Parallel processing technology support: Not supported
LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
LAN controller: Realtek RTL8112L
Network interface: Gigabit Ethernet
Slots
PCI Express x1 slots: 2
PCI Express x16 slots: 1
PCI slots: 1
PCI Express slot version: 2.0
Storage
Supported storage drive interfaces: SATA II, III
Connector
USB 2.0 connectors: 4
Number of SATA II connectors: 4
Number of SATA III connectors: 2
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1
Rear Panel I/O
4x USB 2.0
2x USB 3.2 Gen 1 (3.1 Gen 1) Type-A
1x Ethernet LAN (RJ-45)
1x PS/2 ports
1x DVI-D
1x VGA (D Sub)
1x HDMI
3x Headphone outputs
Microphone in: Yes
Accessories
– I/O Shield
Form Factor
– Micro-ATX Form Factor: 24.4cm x 20.3cm
OS
– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
