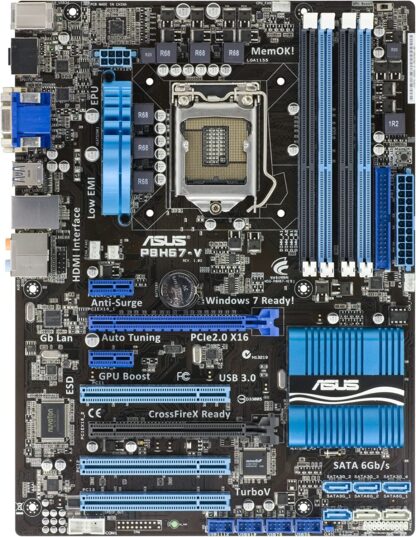

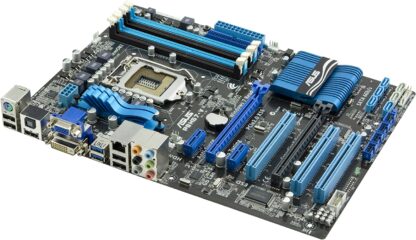

Asus P8H67-V LGA1155 motherboard

Features: Motherboard | ATX | Socket 1155 | 4x DDR3 | SATA-300 | SATA 600 | Pata-133 | PCI-e 2.0 x16 | PCI-e 2.0 x1 | PCI | USB2.0 | USB 3.2 Gen 1 | VGA | HDMI | DVI-D

Product: Asus P8H67-V
Socket: Socket 1155
Category: motherboards
Brand: ASus
EAN: 4719543178188
Condition: Used
SKU: 90-MIBE10-G0EAY0GZ, P8H67-V
Warranty: 6 months

Package contents:
– Motherboard (Asus P8H67-V)
– Backplate (blende)
– No manual
– No drivers CD
– No cables

processor
GA1155 socket for Intel® Second Generation Core™ i7 /
Core™ i5 / Core™ i3 Processors
Supports 32nm CPU
Supports Intel® Turbo Boost Technology 2.0

chipset
Intel® H67 Express Chipset

Memory
Dual-channel memory architecture
– 4 x 240-pin DIMM sockets support unbuffered non-ECC
DDR3 1333/1066MHz Memory Modules
– Supports up to 32 GB system memory
Supports Intel® Extreme Memory Profile (XMP)

Expansion slots
1 x PCI Express 2.0 x16 slot (blue, x16 mode only)
1 x PCI Express 2.0 x16 slot (black, in x4 mode, compatible with
PCI Express x 1 and x 4 devices)
2 x PCI Express 2.0 x1 slots
3 x PCI slots

Multi-GPU
support Supports ATI® Quad-GPU CrossFireX™ ​​technology

Storage
Intel® H67 Express Chipset:
– 4 x Serial ATA 3Gb/s connectors (blue)
– 2 x Serial ATA 6Gb/s connectors (grey)
– Intel® Rapid Storage technology supports RAID 0, 1, 5, 10
VIA® VT6415
– 1 Ultra DMA 133/100 for up to 2 PATA devices

LAN
Realtek® 8111E Gigabit LAN Controller

Audio
ALC887 Supports 8 Channel High Definition Audio CODEC
– Optical S/PDIF out ports on the back I/O
– Jack detection, multi-streaming and front panel
Jack-Retasking Technologies

USB
Intel® H67 Express Chipset:
– 12 x USB 2.0/1.1 ports (6 ports on mid-board, 6 ports on the)
back panel)
ASMedia® USB 3.0 Controller:
– 2 x USB 3.0 ports (blue) on the back panel

Internal connectors
3 x USB 2.0/1.1 connectors support 6 additional USB 2.0/1.1 ports
1 x IDE connector
1 x System Panel Connector
1 x S/PDIF Out Connector
4 x SATA 3.0 Gb/s Connectors
2 x SATA 6.0 Gb/s connectors
1 x audio jack on the front panel
1 x CPU Fan Connector
2 x Chassis Fan Connector
1 x Power Fan Connector
1 x COM Connector
1 x 24 Pin EATX Power Connector
1 x 8 Pin EATX 12V Power Connector
1 x Turbo Key II Switch
1 x Memo OK! knob

Ports on the back panel
1x DVI-D
1x HDMI
1x VGA(D-Sub)
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x Optical S/PDIF output
1 x LAN (RJ-45) port
2 x USB 3.0/2.0 ports (blue)
4 x USB 2.0/1.1 ports (black)
8-channel audio ports

BIOS Features
32 MB Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0,
SMBIOS v2.6, ACPI v2 0a, Multilingual BIOS

Manageability
WOL by PME, WOR by PME, PXE

Accessories
1 x I/O Shield

Shape Factor
ATX form factor: 12 inches x 8.7 inches (30.5 cm x 22.1 cm)
