Product information

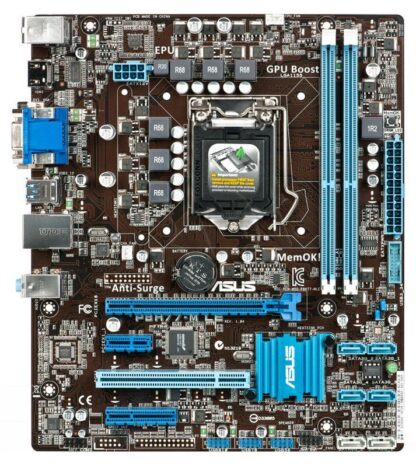

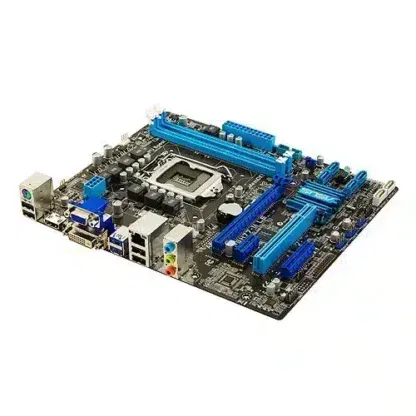

The Asus P8H77-M LE is a Micro-ATX LGA1155 motherboard based on the Intel H77 chipset. The board must be combined with DDR3 memory, for which 2 slots are available. In total, the Asus P8H77-M LE has 6 Serial ATA connections for hard drives and SSDs. The built-in sound card is based on a Realtek ALC887 chip.

Features: Motherboard | Micro ATX | LGA1155 | 2x DDR3 | 4x SATA-300 | 2x SATA 600 | PCI-e 3.0 x16 | PCI-e 2.0 x4 | PCI-e 2.0 x1 | PCI | USB 2.0 | USB 3.0| DVI-D | HDMI | VGA

Click here for the supporting CPUs
Click here for the drivers

Product:Asus P8H77-M LE
Socket: LGA1155
Category: motherboards
Brand: ASus
EAN:0610839185160, 0719543185162, 4719543185162
State: Used, with the latest BIOS version
SKU:90-MIBI80-G0EAY0DZ, P8H77-M LE, P8H77-MLE
Warranty:
6 months

Package contents:
– Motherboard (Asus P8H77-M LE)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables


CPU
Processor manufacturer:  Intel
Processor socket:  LGA 1155 (Socket H2)
Compatible processor series: Intel® Core™ i3, Intel Core i5, Intel, Core i7


Chipset
– Intel® H77


Memory
Supported memory types: DDR3-SDRAM
Number of memory slots:  2
Memory channels:  Dual channel
Non-ECC: Yes
Supported memory clock speeds: 1066.1333 MHz
Memory, maximum: 16 GB


BIOS
BIOS type: EFI
BIOS memory size: 32 Mbit
ACPI version: 2.0a


Graphics
Parallel processing technology support: Not supported


LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
LAN controller: Realtek RTL8111F
Network interface: Gigabit Ethernet


Slots
PCI Express x1 slots: 1
PCI Express x16 slots: 1
PCI Express X4: 1
PCI slots: 1
PCI Express slots version: 2.0, 3.0


Storage
Supported storage drive interfaces: SATA II, SATA III


Connector
USB 2.0 connectors: 4
Number of SATA II connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
Number of COM connectors: 1


Rear Panel I/O
USB 2.0: 4
USB 3.2: 2
port quantity : 6
Ethernet LAN (RJ-45) ports:  1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity:  1
DVI-D Port quantity: 1
HDMI: 1
Headphone outputs:  1
Microphone in: Yes


Accessories
– I/O Shield


Form Factor

– Micro-ATX Form Factor: 24.4cm x 20.3cm


OS

– Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

Specification

Intel

LGA1155

Brand

Asus

Chipset

Intel H77

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.1 Gen1 Type-A

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x4, PCI-e 3.0 x16

Socket

Model

P8H77-M-LE

Suitable for

Regular use

particularities

Onboard Audio

Length

24.4 cm

Width

20.3 cm

package content

Motherboard and Backplate (Blende)

Asus P8H77-M LE LGA1155 motherboard

1 in stock

Fast delivery
64,95

Brand: Asus
Model: Asus P8H77-M LE
Socket: LGA1155
Chipset: Intel H61
Memory: 2x DDR3 (16GB Max)
Form Factor: Micro-ATX
EAN: 0610839185160, 0719543185162, 4719543185162
SKU: 90-MIBI80-G0EAY0DZ, P8H77-M LE, P8H77-MLE
