Description

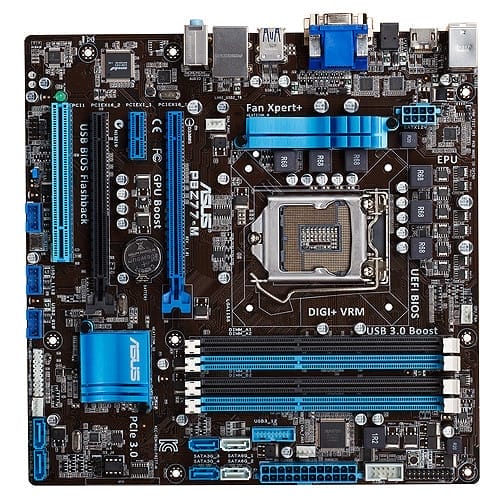

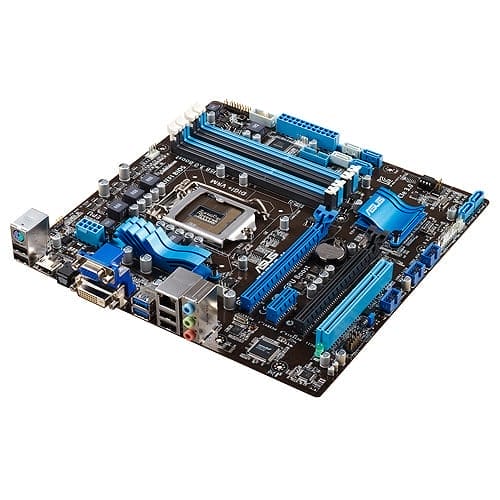

The Asus P8Z77-M is a Micro-ATX LGA1156 motherboard based on the Intel Z77 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus P8Z77-M has 6 Serial ATA connections for hard drives and SSDs.
Features: Motherboard | Micro ATX | LGA1155 | 4x DDR3 | 4x SATA-300 | 2x SATA 600 | PCI-e x16| PCI | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI | HDMI | VGA
Click here for the supporting CPUs
Click here for the drivers
Product: Asus P8Z77-M
Socket: LGA1155
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN:0088020614452, 0610839185993, 4719543185995, 6108391859932
SKU: 90-MIBI10-G0EAY0GZ, P8Z77-M
Warranty: 6 months
Package contents:
– Motherboard (Asus P8Z77-M)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables
CPU
Intel® Socket 1155 for 2/3th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset
Intel® Z77
Memory
4xDIMM, Max. 32GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory
Expansion Slots
1 x PCIe x16
1 x PCIe x1
277x PCI
Storage
Intel® B75 chipset :
4 x SATA 3Gb/s port(s)
2 x SATA 6Gb/s port(s)
LAN
Realtek RTL8111F
Audio
-Realtek ALC887
USB Ports
Intel® Z77 chipset :
10x USB 2.0
4x USB 3.2 (Gen1, 5Gb/s)
Operating System Support
Windows® 8
Windows® 7

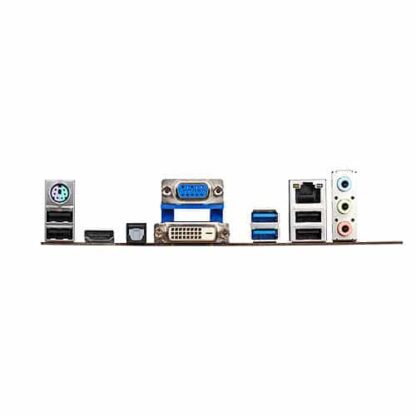

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x LAN (RJ45) port(s)
1x DVI
1x HDMI
1x VGA
4x USB 2.0
2x USB 3.2
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 8-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
4 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
2x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1x TPM connector
1 x Clear CMOS jumper(s)
Accessories
I/O Shield
Form Factor
Micro ATX Form Factor
