Product information

Features: Motherboard | ATX | Socket 1155 | Intel Z77 Chipset | 4x DDR3 | SATA-300 | SATA 600 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | PCI-e 3.0 x16 | USB 2.0 | USB 3.0 | eSata | HDMI | DVI-D | Display port | VGA (D Sub)

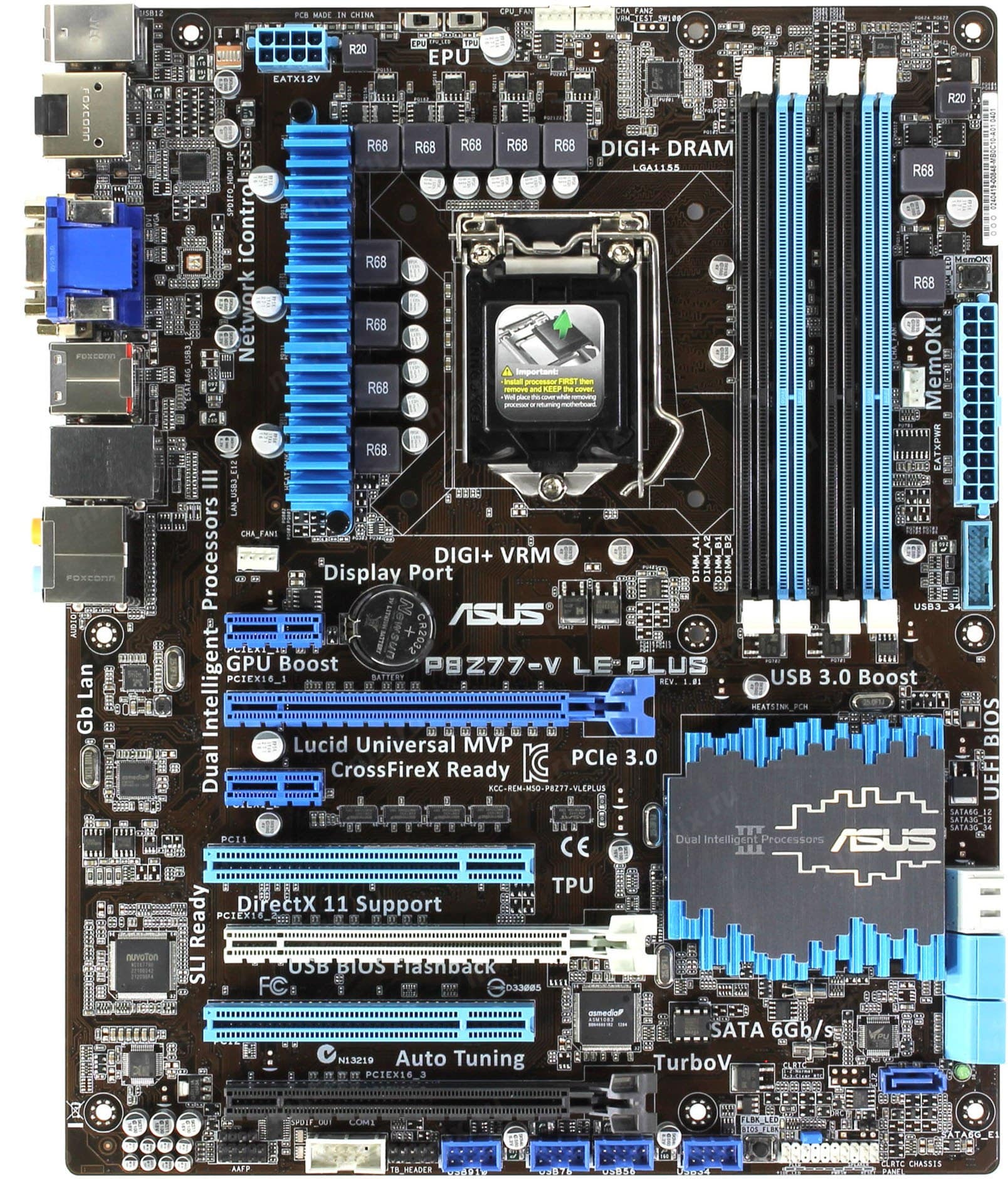

Product:ASUS P8Z77-V LE Plus
Socket: Socket 1155
Category: motherboards
Brand: ASus
EAN: 0610839186617, 4719543186176, 4719543186619, 5711045802942
Condition: Used
SKU:90-MIBIN0-G0EAY0MZ, 90-MIBIN0-G0EAY0VZ, P8Z77-V LE PLUS
Warranty:
6 months


Package contents:
– Motherboard (ASUS P8Z77-V LE Plus)
– Backplate (blende)
– No manual
– No drivers CD
– No cables


processor
LGA1155 socket for Intel® 3rd/2nd Gen Core™ i7 / Core™ i5 /
Core™ i3 / Pentium® / Celeron® Processors
Supports 22nm/32nm CPU
Supports Intel® Turbo Boost Technology 2.0*


chipset
Intel® Z77 Express Chipset


Memory
4 x DIMMs, max. 32 GB, DDR3 2400 (Overclocked) / 2200 (Overclocked) / 2133 (Overclocked) /
1866 (overclocked) / 1600 / 1333 / 1066 MHz, non-ECC, unbuffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)


Graphic
Integrated graphics processor
– Intel® HD graphics support
Multiple VGA output support: DisplayPort, HDMI, DVI, RGB ports
– Supports DisplayPort 1.1a with max. resolution of 2560 x 1600 @60Hz
– Supports HDMI with max. resolution of 1920 x 1200 @60Hz
– Supports DVI with max. resolution of 1920 x 1200 @60Hz
– Supports RGB with max. resolution of 2048 x 1536 @75Hz
– Supports Intel® InTruTM 3D / InsiderTM / Quick Sync Video / Clear Video
HD technology / HD graphics
– Maximum shared memory of 1696 MB


Support for multiple GPUs
Supports NVIDIA® Quad-GPU SLI™ technology (with 2 PCIe x16
Graphics Card)
Supports AMD® Quad-GPU CrossFireXTM Technology*
Supports AMD® 3-Way CrossFireXTM Technology*
Supports LucidLogix® Virtu MVP technology**
* Disable the PCIe x1_1 and PCIe x1_2 slots and set the PCIe manually
x16_3 to x4 mode in BIOS when configuring CrossFireX™ ​​with dual
graphics cards.
** LucidLogix Virtu® MVP supports Windows® 7 operating systems.


Expansion slots
2 x PCI Express 3.0* / 2.0 x16 slots (single on x16, or dual on x8 / x8
mode)
1 x PCI Express 2.0 x16 slot [black] (max. in x4 mode, compatible with
PCIe x1 and PCIe x4 devices)**
2 x PCI Express 2.0 x1 slots
2 x PCI slots
* PCIe 3.0 speed is supported by Intel® 3rd Generation CoreTM processors.
** The PCIe x16_3 slot shares bandwidth with the PCIe x1_1 and
PCIe x1_2 slots. The default setting is x2 mode. Go to BIOS Settings
to change the settings.


Storage
Intel® Z77 Express Chipset:
– 2 x Serial ATA 6.0 Gb/s connectors (gray) with RAID 0, 1, 5, 10 support
– 4 x Serial ATA 3.0 Gb/s connectors (blue) with RAID 0, 1, 5, 10 support
– Supports Intel® Smart Response technology, Intel® Rapid Start
Technology, Intel® Smart Connect Technology*
Marvell® PCIe SATA 6.0Gb/s Controller**:
– 1 x eSATA port on the back I/O (6.0Gb/s ready)
– 1 x Serial ATA 6.0Gb/s connectors (navy blue)
* Supports on Intel® CoreTM processor family with Windows® 7 control
systems.
** These SATA ports are for data storage only. ATAPI devices are not:
supported.


LAN
Realtek® 8111F Gigabit LAN Controller


Audio
Realtek® ALC889 8 Channel High Definition Audio CODEC
– Support 192khz/24bit BD lossless sound
– BD Audio Layer content protection
– Supports Jack-Detection, Multi-streaming and Front Panel JackRetasking
– Optical S/PDIF out ports on the back I/O


USB
Intel® Z77 Express Chipset – Supports ASUS USB 3.0 Boost UASP Mode*
– 2 x USB 3.0 / 2.0 ports on the center board for front panel support
– 2 x USB 3.0 / 2.0 ports on the back panel (blue)
Intel® Z77 Express Chipset
– 10 x USB 2.0 ports (8 ports on mid-board, 2 ports on back panel)
ASMedia USB 3.0 Controllers – Supports ASUS USB 3.0 Boost UASP Mode
– 2 x USB 3.0 ports on the back panel (blue)
* The USB 3.0 ports only support Windows® 7 or later versions. UASP
standard only supports Windows® 8.


I/O ports on the back panel
1 x PS/2 keyboard/mouse combo port
1 x DisplayPort
1 x Optical S/PDIF output
1 x HDMI Port
1 x DVI-D Port
1 x RGB Port
1 x LAN (RJ-45) port
1 x eSATA port
4 x USB 3.0/2.0 ports (blue, 1 supports USB BIOS Flashback)
2 x USB 2.0/1.1 ports
8-channel audio I/O ports


Internal I/O connectors
1 x USB 3.0/2.0 connector supports additional 2 USB ports (19-pin)
4 x USB 2.0/1/1 connectors support additional 8 USB ports
3 x SATA 6.0Gb/s connectors (2 x gray, 1 x navy blue)
4 x SATA 3.0Gb/s connectors (blue)
1 x COM Connector
1 x CPU Fan Connector (4 Pin)
3 x Chassis Fan Connectors (4 Pin)
1 x audio jack on the front panel
1 x S/PDIF Out header
24-pin EATX power connector
8-pin EATX 12V power connector
1 x System Panel Connector
1 x Clear CMOS jumper
1 x Memo OK! knob
1 x USB BIOS Flashback Button
1 x EPU Switch
1 x TPU Switch (embedded with GPU Switch)


BIOS Features
64MB Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7,
ACPI 2.0a, Multilingual BIOS, ASUS EZ Flash 2, ASUS CrashFree
BIOS 3, F12 PrintScreen function, F3 shortcut function and ASUS
DRAM SPD (Serial Presence Detect) Memory Information
Controllability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE


Accessories
1 x I/O shield


Shape Factor
ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)

Specification

Weight 1 kg
Intel

LGA1155

Brand

Asus

Chipset

Intel Z77

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), Displayport, DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket

Model

P8Z77-V LE Plus

Length

30.5 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)

ASUS P8Z77-V LE Plus LGA1155 motherboard

Fast delivery

Brand: Asus
Model: P8Z77-V LE PLUS
Socket: LGA1155
Chipset: Intel Z77
Memory: 4x DDR3 (32GB Max)
Form Factor: ATX
EAN: 4719543186619
SKU: 90-MIBIN0-G0EAY0MZ, 90-MIBIN0-G0EAY0VZ, P8Z77-V LE PLUS
