Product information

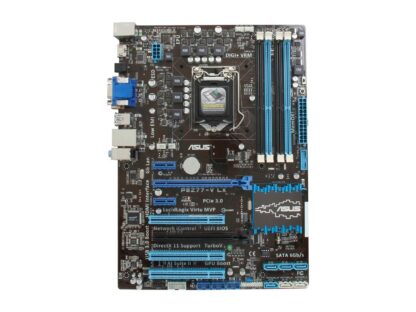

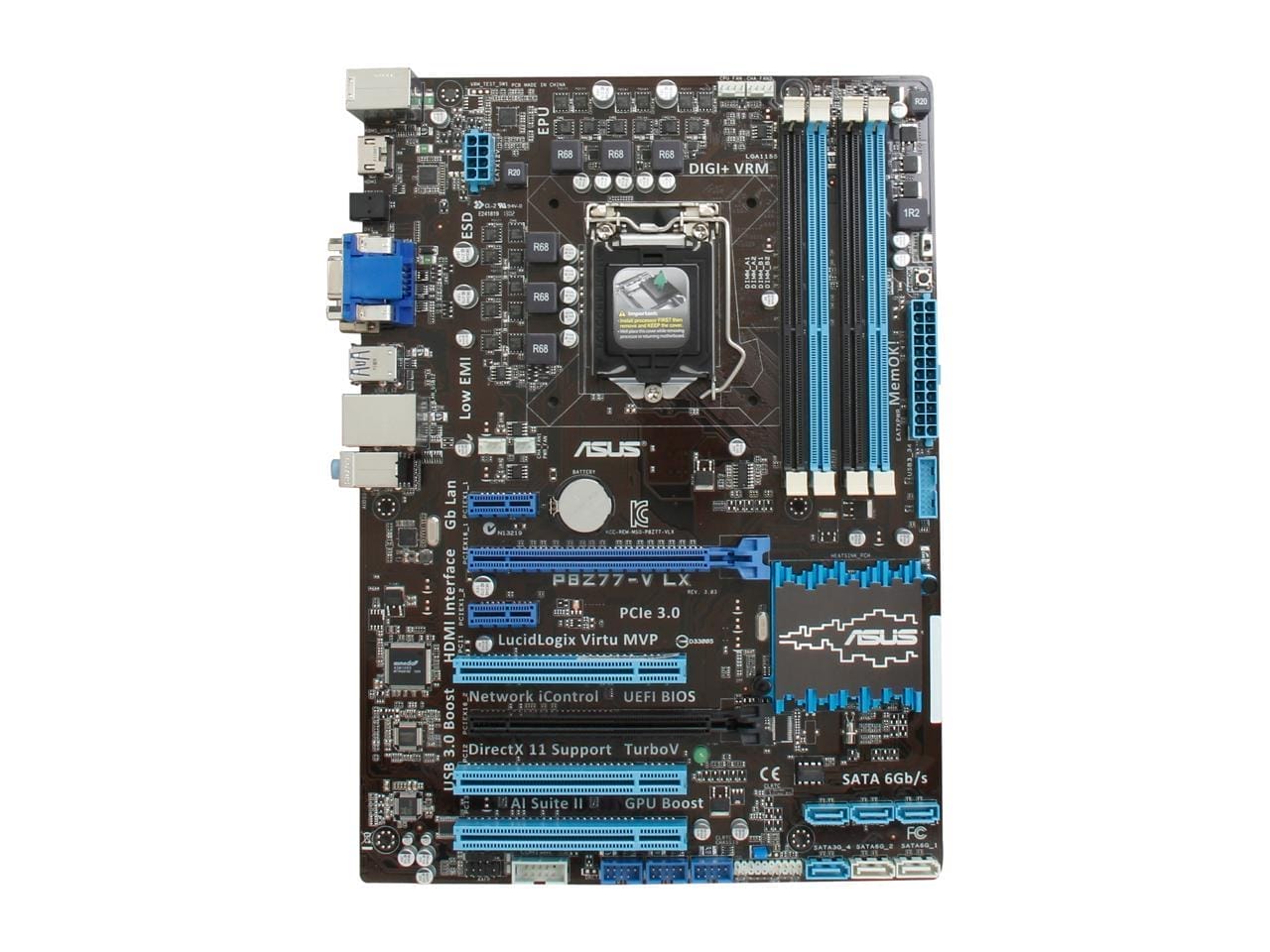

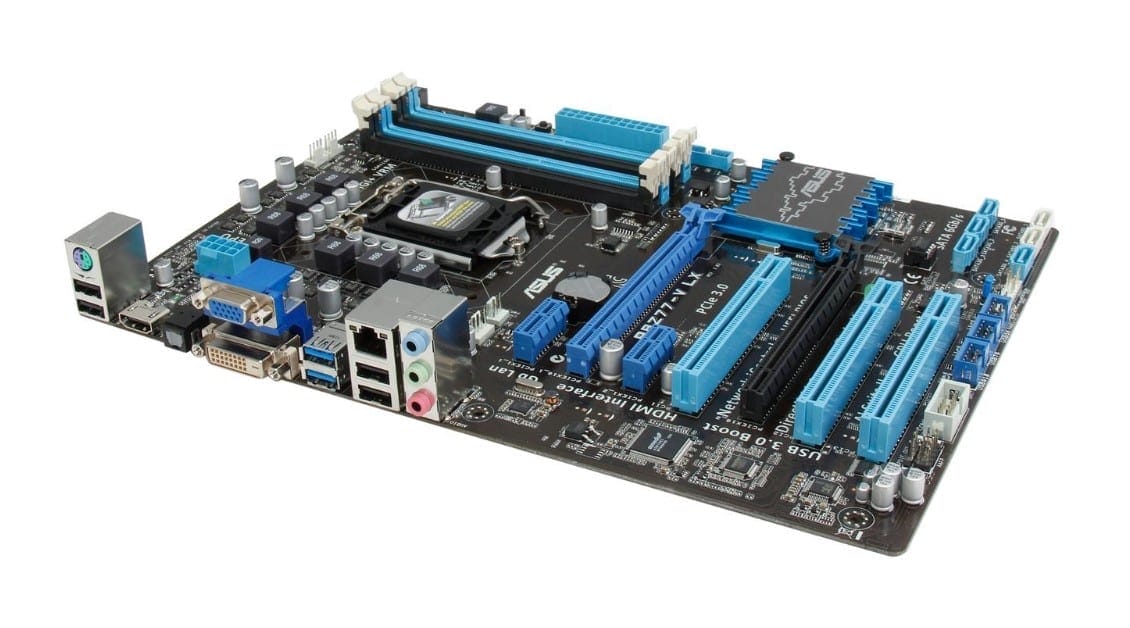

The Asus Asus P8Z77-V LX is an ATX LGA1155 motherboard based on the Intel Z77 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Asus Asus P8Z77-V LX has 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | ATX | LGA1155 | 4x DDR3 | 4x SATA-300 | 2x SATA 600 | PCI-e x16| PCI | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | DVI | HDMI | VGA

Product:Asus P8Z77-V LX
Socket: Socket 1155
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN: 0610839185856, 4719543185858, 4719543185865, 5053313964151
SKU: 90-MIBHT0-G0EAY0VZ, P8Z77-V LX
Warranty: 6 months

Package contents:
– Motherboard (Asus P8Z77-V LX)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

CPU
Intel® Socket 1155 for 2/3th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset
Intel® Z77

Memory
4xDIMM, Max. 32GB, DDR3 1333.1600,1800,1866,2000,2133.2200,2400MHz Non-ECC, Un-buffered Memory

Expansion Slots
2 x PCIe x16
2 x PCIe x1
3x PCI

Storage
Intel® B75 chipset :
4 x SATA 3Gb/s port(s)
2 x SATA 6Gb/s port(s)

LAN
Realtek RTL8111E

Audio
-Realtek ALC887

USB Ports
Intel® Z77 chipset :
6x USB 2.0
2x USB 3.2 (Gen1, 5Gb/s)

Operating System Support
Windows® 8
Windows® 7

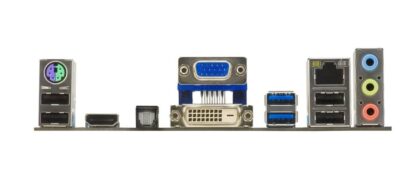

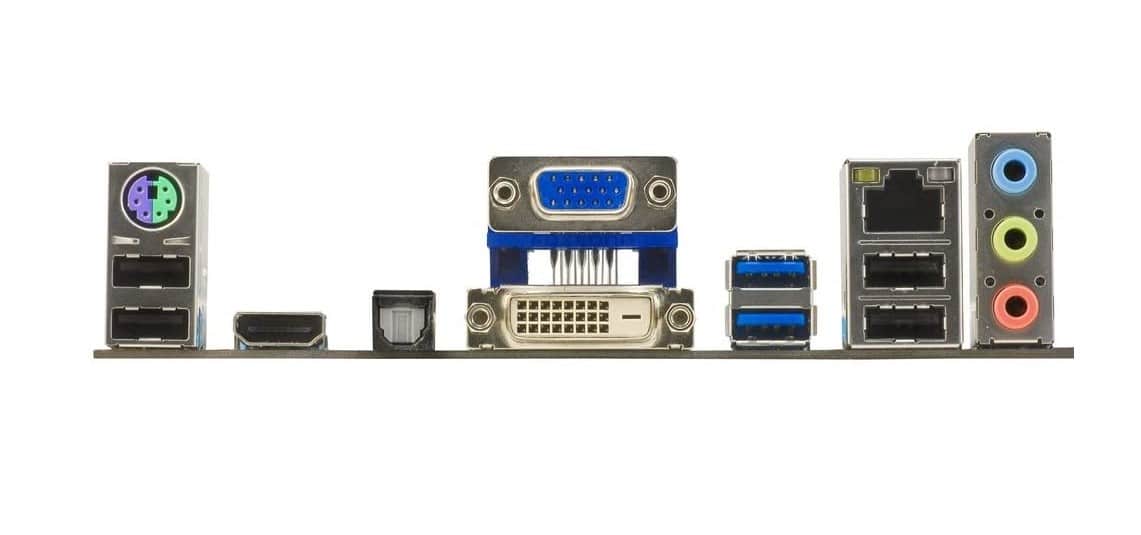

Back I/O Ports
4x USB 2.0
2x USB 3.2 Gen 1 (3.1 Gen 1) Type-A
1x Ethernet LAN (RJ-45)
1x PS/2
1x VGA (D Sub)
1x HDMI

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 8-pin)
2 x Chassis Fan connector(s) (1 x 4-pin)
6 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2x USB 3.2 Gen 1 (3.1 Gen 1)
4 x SATA 3Gb/s connector(s)
2x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1x TPM connector
1 x Clear CMOS jumper(s)

Accessories
I/O Shield

Form Factor
ATX Form Factor
