Product information

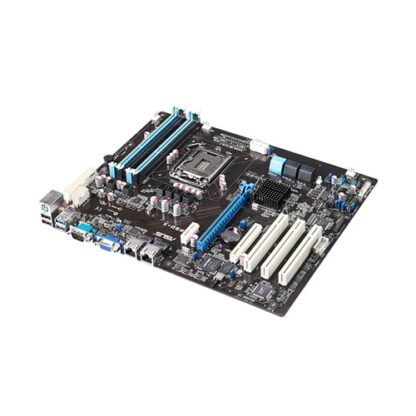

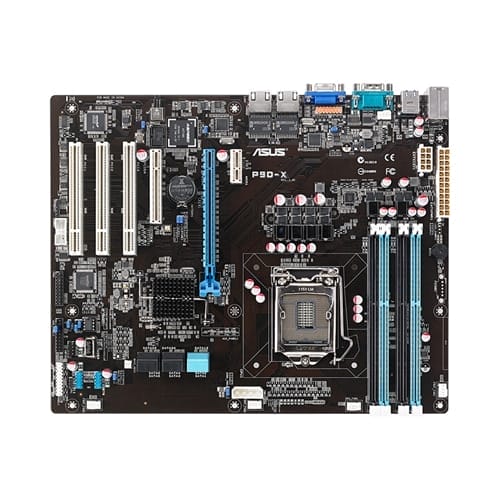

The Asus P9D-X Server motherboard is an ATX motherboard with space for 4 DDR3 memory modules, with a maximum of 32GB.

Specifications:  motherboard | Socket LGA1150 | Intel H97 chipset | PCI | PCI-e 2.0 x8 | PCI-e 3.0 x16 | Sata-300 | Sata-600 | USB 2.0 | 6x USB 3.0 | VGA (D Sub)

Product: Asus P9D-X
Socket: 1150
Category: Motherboards
Brand: Gigabyte
Condition: Used
EAN: 4716659505785, 4716659559498
SKU: 90SB0380-M0UAY0, 90SB0380-M0UAY5, P9D-X
Warranty: 6 months

package content:
– Motherboard (Asus P9D-X)
– Backplate (blende)
– No manual
– No driver CD
– No cables

CPU
Intel^® Xeon^® processor E3-1200 v3 product family
4th Gen Intel^® Core™ i3 processors

Chipset
Intel® C222 Chipset

Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
Capacity : Maximum up to 32GB UDIMM
Memory Type : DDR3 1600/1333 UDIMM with ECC
Memory Size : 8GB, 4GB, 2GB

LAN
2 x Intel® I210AT

Expansion Slots
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI 32bit/33MHz
Slot Location 4 : PCI-E x8 (Gen2 X4 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Slot Location 7 : MIO Slot for Audio card

Storage:
SATA Controller : Intel® C222
2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )0

Internal I/O Connectors
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB 2.0 pin header , Up to 4 Devices
1 x Internal A Type USB Port
5 x Fan Header , 4pin
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x SATA DOM Power Connector
1 x VGA Header

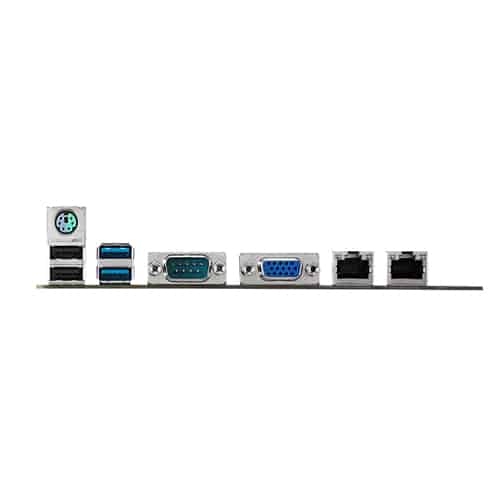

Back Panel Connectors
1 x External Serial Port
4 x External USB Port (2 x USB 3.1 Gen 1, 2 x USB 2.0)
1 x VGA Port
2 x RJ-45
1 x PS/2KB/Mouse

BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System
Support for Windows 10/8.1/8/7

Form Factor
ATX Form Factor; 30.5cm x 24.4cm
