Beschrijving

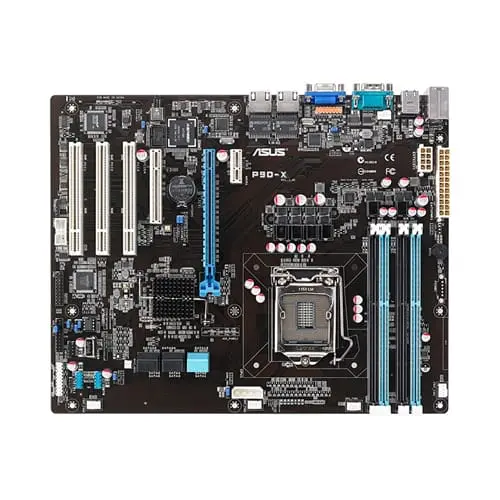

Het Asus P9D-X Server moederbord is een ATX moederbord met plaats voor 4 DDR3 geheugen modules, met een maximum van 32GB.
Specificaties: moederbord | Socket LGA1150 | Intel H97-chipset | PCI | PCI-e 2.0 x8 | PCI-e 3.0 x16 | Sata-300 | Sata-600 | USB 2.0 | 6x USB 3.0 | VGA (D-Sub)
Product: Asus P9D-X
Socket: 1150
Categorie: Moederborden
Merk: Gigabyte
Staat: Gebruikt
EAN: 4716659505785, 4716659559498
SKU: 90SB0380-M0UAY0, 90SB0380-M0UAY5, P9D-X
Garantie: 6 maanden
Drivers voor de Asus P9D-X
Processoren die door de Asus P9D-X worden ondersteund
pakketinhoud:
– Moederbord (Asus P9D-X)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels
CPU
Intel® Xeon® processor E3-1200 v3 product family
4th Gen Intel® Core™ i3 processors
Chipset
Intel® C222 Chipset
Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
Capacity : Maximum up to 32GB UDIMM
Memory Type : DDR3 1600/1333 UDIMM with ECC
Memory Size : 8GB, 4GB, 2GB
LAN
2 x Intel® I210AT
Expansion Slots
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI 32bit/33MHz
Slot Location 4 : PCI-E x8 (Gen2 X4 Link)
Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Slot Location 7 : MIO Slot for Audio card
Opslag:
SATA Controller : Intel® C222
2 x SATA3 6Gb/s ports
4 x SATA2 300MB/s ports
Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )0
Internal I/O Connectors
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB 2.0 pin header , Up to 4 Devices
1 x Internal A Type USB Port
5 x Fan Header , 4pin
1 x Chassis Intruder
2 x Front LAN LED
1 x Serial Port Header
1 x SATA DOM Power connector
1 x VGA Header

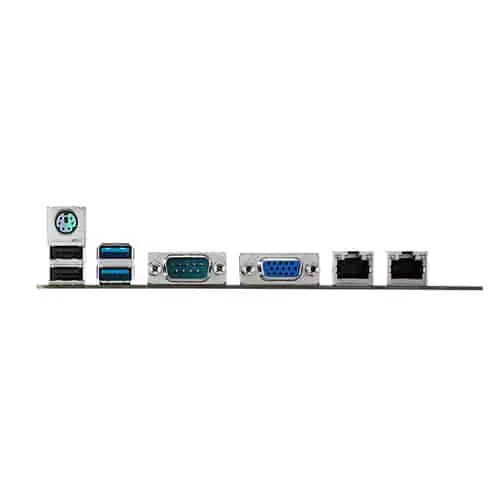

Back Panel Connectors
1 x External Serial Port
4 x External USB Port (2 x USB 3.1 Gen 1, 2 x USB 2.0)
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse
BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System
Support for Windows 10/8.1/8/7
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
