Product information

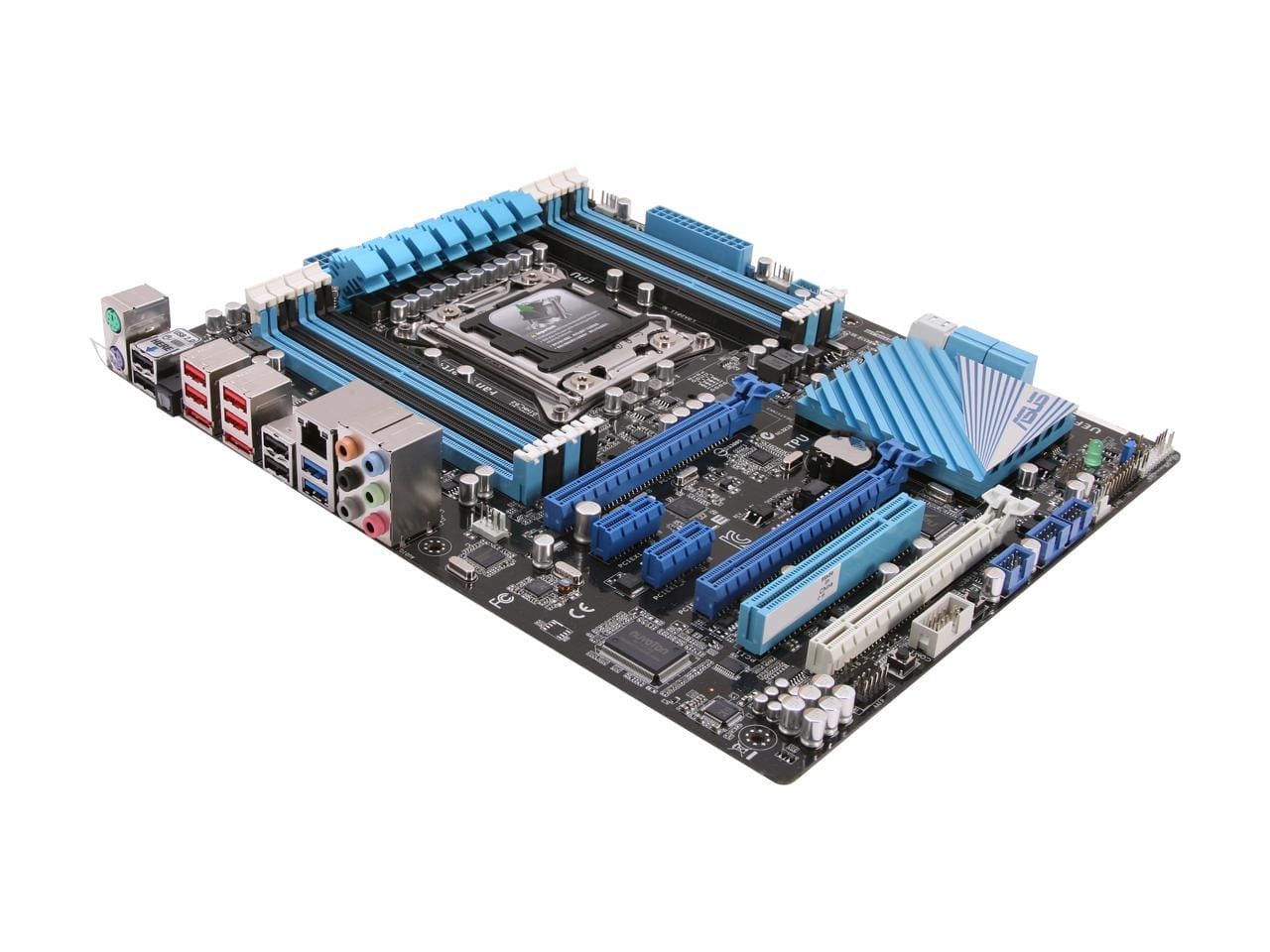

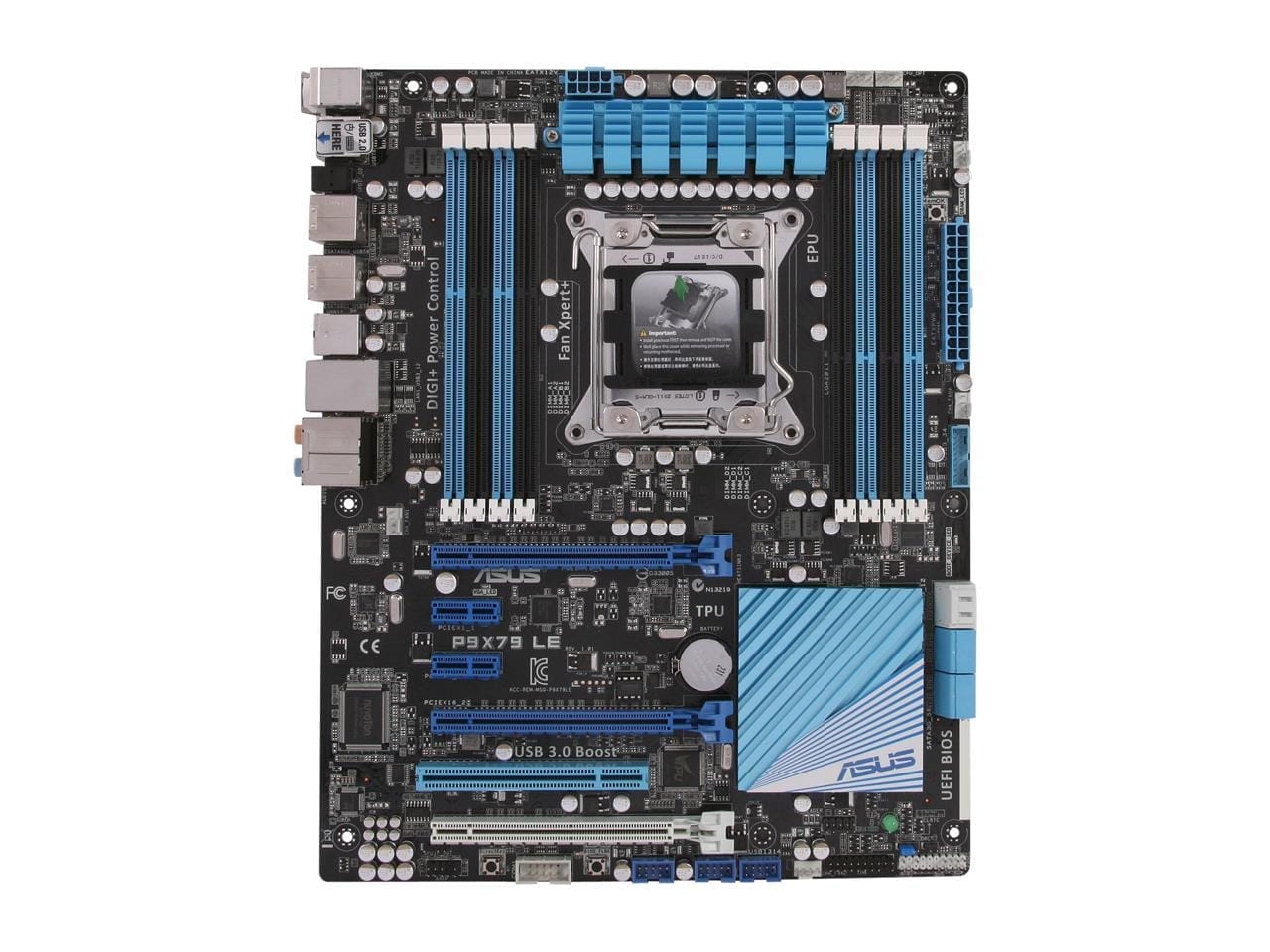

Asus P9X79 LE: Motherboard | ATX | Socket 2011 | 8x DDR3 (max 64GB) | eSata | USB2.0 | USB3.2 | Sata-300 | Sata-600 |

Product: Asus P9X79 LE
Socket: Socket 2011
Category: motherboards
Brand: Asus
Condition: Used
EAN: 4717677334210
SKU: 90-MIBIM0-G0EAY0KZ, 90-MIBIM1-G0UBY0KZ, P9X79 LE
Warranty: 6 months

Package contents:
– Motherboard (Asus P9X79 LE)
– backplate (blende)
– No manual
– No drivers CD
– No cables

CPU
2nd Generation Intel® Core™ i7 Processor family for the LGA
2011 Socket
Supports Intel® Turbo Boost Technology 2.0

Chipset
Intel® X79 Express Chipset

Memory
8 x DIMM, max 64GB, DDR3 2400(O.C.) / 2133(O.C.) /
1866 / 1600 / 1333 / 1066 MHz, non-ECC, unbuffered
memory
Quad channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
** Hyper DIMM support is subject to the physical characteristics
or individual CPUs.
** Refer to www.asus.com for the Memory QVL (Qualified
Vendor List).

Expansion slots
2 x PCI Express 3.0 x16 slots (Dual at x16/ x16 mode, Triple at
x16/ x16/ x8)
1 x PCI Express 3.0 x16 slot (PCIe x16_3 at x8 mode)
2 x PCI Express 2.0 x1 slots
1 x PCI slot
* This motherboard is ready to support PCIe 3.0 SPEC. Functions
will be available when using PCIe 3.0 compliant devices. please
refer to www.asus.com for updated details.

Multi-GPU support
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD® Quad-GPU CrossFireX™ ​​Technology

Storage
Intel® X79 Express Chipset
– 2 x SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support
– 4 x SATA 3 Gb/s ports with RAID 0, 1, 5 and 10 support
ASMedia® 1061 SATA controller
– 2 x eSATA 6Gb/s ports

LAN
Realtek® 8111F Gigabit LAN Controller

USB
2 x ASMedia® USB 3.0 controllers
– 2 x USB 3.0/2.0 ports at mid-board for front panel support
– 2 x USB 3.0/2.0 ports at back panel (Blue)
Intel® X79 Express Chipset
– 14 x USB 2.0/1.1 ports
(6 ports at mid-board; 8 ports at back panel)

Audio
Realtek® ALC892 8 Channel High Definition Audio CODEC
– Support 192khz / 24bit BD Lossless Sound
– BD Audio Layer Content Protection
– Supports Jack-Detection, Multi-Streaming and
Front Panel Jack-Retasking
– Optical S/PDIF Out port at back I/O

ASUS exclusive
overclocking features
Precision tweaker 2:
– vCore: Adjustable CPU voltage at 0.005V increment
– vTTCPU: Adjustable I/O voltage at 0.00625V increment
– vCCSA: 255-step system agent voltage control
– vDRAM Bus: 160-step Memory voltage control
– vPCH: 96-step Chipset voltage control
– vCPU_PLL: 48-step CPU & PCH PLL voltage control
SFS (Stepless Frequency Selection):
– BCLK/PEG frequency tuning from 80MHz up to 300MHz at
0.1MHz increment
Overclocking Protection:
– ASUS C.P.R.(CPU Parameter Recall)

ASUS Unique Features
ASUS Dual Intelligent Processors 3
with New DIGI+ Power Control:
CPU Power
– Industry leading Digital 6+2 Phase Power Design
– CPU Power Utility
DRAM Power
– Industry leading Digital 2+2 Phase Power Design
– DRAM Power Utility
ASUS TPU
– Auto Tuning, TurboV
ASUS EPU
– EPU Utility
ASUS Exclusive Features:
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user
interface
– USB 3.0 Boost
– MemoOK!
-RemoteGO!
– AI Suite II
– Ai Charger
ASUS Quiet Thermal Solution:
– ASUS Fanless Design: Stylish Heat-sink solution
– ASUS FanXpert+
ASUS EZ DIY:
– USB BIOS Flashback with USB BIOS Flashback Wizard for
EZ BIOS download scheduling
– ASUS O.C. Profile
– ASUS MyLogo 2
-Percision Tweaker 2
– ASUS Crash Free BIOS 3
– ASUS EZ Flash 2
– DirectKey
– Multi-language BIOS
ASUS Q-Design:
– ASUS Q Shield
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Connector

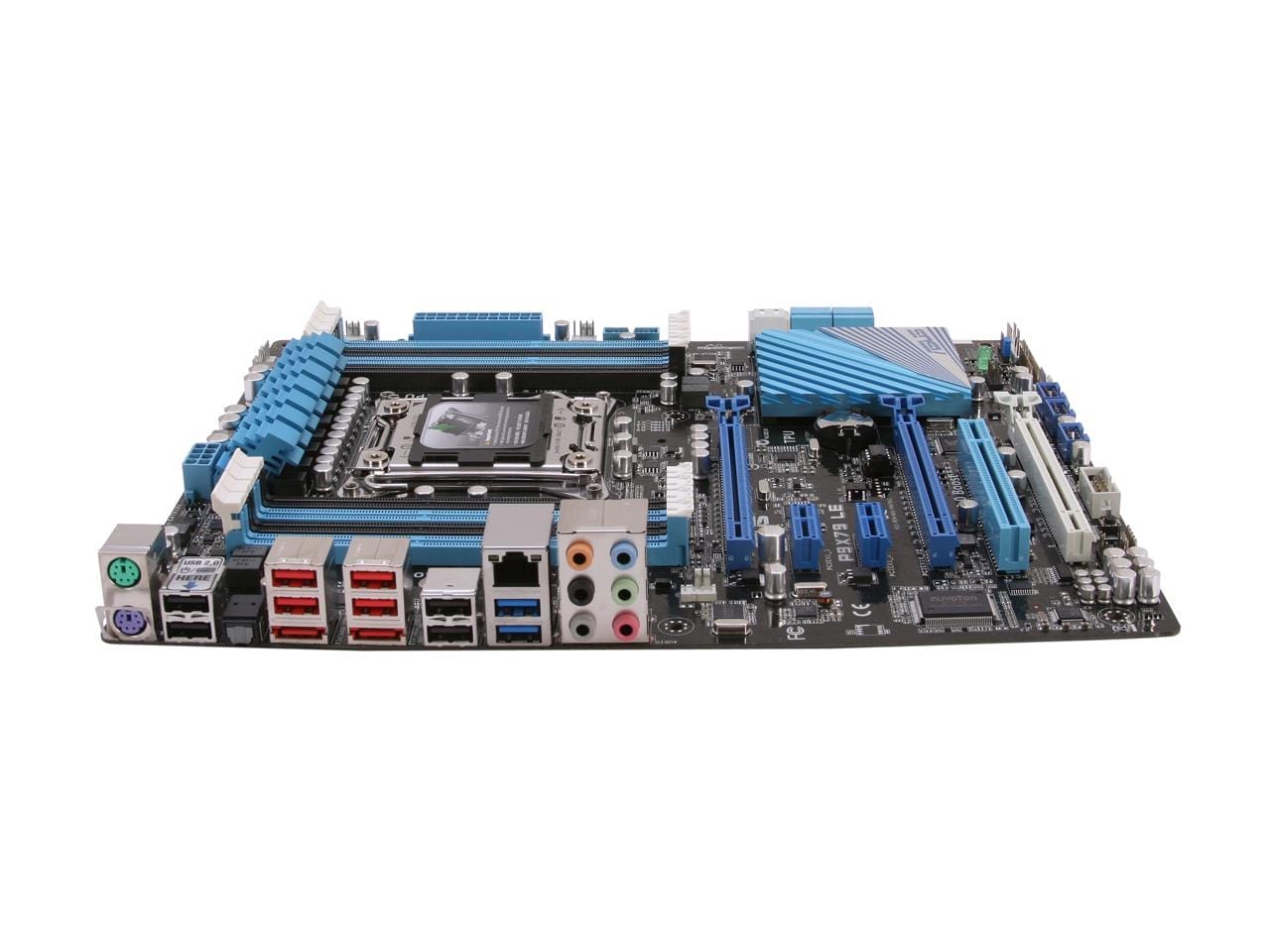

Back panel I/O ports
1 x PS/2 Keyboard Port
1 x PS/2 Mouse port
2 x USB 3.0/2.0 ports (blue)
8 x USB 2.0/1.1 ports
1 x LAN (RJ-45) port
1 x Optical S/PDIF Out port
2 x eSATA 6Gb/s ports (red)
8-channel Audio I/O

Internal I/O connectors
3 x USB 2.0/1.1 connectors support additional 6 USB ports
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU Fan connector (4-pin)
1 x CPU Optional Fan connector (4-pin)
4 x Chassis Fan connectors (4-pin)
1 x Front panel audio connector (AAFP)
1 x COM connector
1 x TPM connector
1 x S/PDIF Out header
1 x Clear CMOS jumper
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel (Q-Connector)
1 x MemOK! button
1 x DirectKey button
1 x DRCT header
1 x USB BIOS Flashback button

BIOS features
64 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0,
SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Form factor
ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm
