Product information

Asus Prime H370M Plus:  motherboard | Micro ATX | Socket 1151 | 8th and 9th Gen CPU Support | Intel H370| 4x DDR4 | PCIe 3.0 x16 | PCIe 3.0 x1 | M.2 Socket (Key E) | SATA 600 | Ultra M.2 Socket (M2_1) | M.2 Socket (M2_2) | USB 2.0 | USB 3.1 Gen2 Type-A | USB 3.1 Gen2 Type-A | D Sub | HDMI | DVI-D

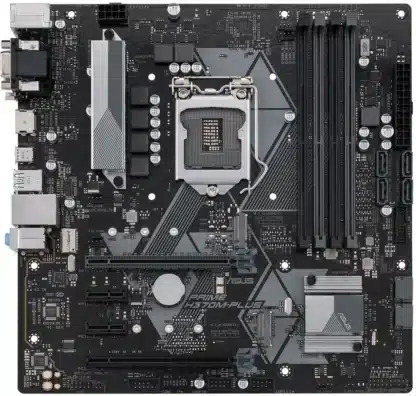

Product: Asus Prime H370M Plus
Socket: Socket 1151
Suitable for: 8th and 9th generation processors
Category: Motherboards
Brand: ASRock
Condition: Refurbished – with the latest available bios version
EAN: 0889349972823, 4712900972825
SKU: 90MB0WC0-M0EAY0, PRIME H370M-PLUS
Warranty:6 months

package content:
– Motherboard (Asus Prime H370M Plus)
– backplate (blende)
– No manual
– No driver CD
– No cables

CPU
LGA1151 socket for 8th Gen Intel® Core™ Processor
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel® H370 Chipset

Memory
4 x DIMM, max. 64GB, DDR4 2666/2400/2133 MHz, non-ECC, un-buffered

memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum memory frequency supported varies by processor.
** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).

Expansion slots
1 x PCIe 3.0/2.0 x16 slot
1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)
2 x PCIe 3.0/2.0 x1 slots

Multi-GPU
support Supports AMD® 2-Way/Quad-GPU CrossFireX™ Technology

VGA
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/D-sub ports
– Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
– Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/ Insider™
Maximum shared memory of 1024 MB (for iGPU exclusively)

Storage
Intel® H370 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support
– 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE x2 mode)*
– 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE x4 mode)
– 6 x SATA 6.0 Gb/s ports
– Ready for Intel® Optane Memory
* The M.2_1 socket shares SATA_1/2 port when using M.2 SATA mode devices. Adjust BIOS settings to use a SATA device.

LAN
Intel® I219-V Gigabit LAN
– Dual interconnect between the integrated Media Access Controller (MAC) and
physical layer (PHY)
ASUS LANGuard
ASUS Turbo LAN Utility

Audio
Realtek® ALC887 8-channel* high definition audio CODEC
– Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
– Supports jack-detection and front panel jack-retasking

USB
Intel® H370 Chipset
– 2 x USB 3.1 Gen 2 ports (up to 10Gbps) at back panel (Type-A)
– 5 x USB 3.1 Gen 1 ports (up to 5Gbps) (2 ports @mid-board; 3 ports @back panel<2*TypeA, 1*TypeC™)
– 6 x USB 2.0 ports (4 ports @mid-board; 2 ports @back panel)

Back Panel
I/O Ports
1 x D-sub port
1 x HDMI port
1 x DVI-D port
1 x PS/2 combo port
1 x LAN (RJ45) port
2 x USB 3.1 Gen 2 ports (Type-A)
2 x USB 3.1 Gen 1 ports
1 x USB 3.1 Gen 1 TypeC™ port
2 x USB 2.0 ports
8-channel Audio I/O ports

Internal I/O Connectors
1 x USB 3.1 Gen 1 connectors support additional 2 USB ports (19-pin)
2 x USB 2.0 connectors support additional 4 USB ports
2 x M.2_1 Socket 3 (for M Key, type 2242/2260/2280 devices)
6 x SATA 6.0Gb/s connectors
1 x CPU Fan connector (support DC/PWM mode)
1 x AIO_Pump header (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel*
1 x COM port
1 x Mono Out header
1 x TPM header (14-1pin)
1 x Clear CMOS jumper
* Chassis intrusion header is built in the system panel connector.

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard,
F6 Qfan Control, F3 My Favorites, F9 Search, Last Modified log, F12 PrintScreen,
and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WOL by PME, PXE

OS
Support Windows® 10 (64-bit)

Form factor
mATX form factor: 9.6 in. x 9.6 in. (24.4 cm x 24.4cm)
