Product information

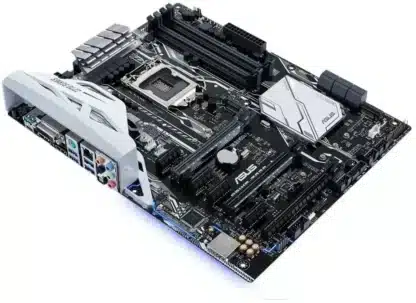

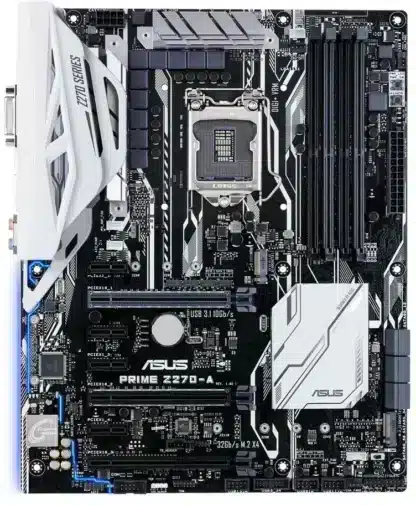

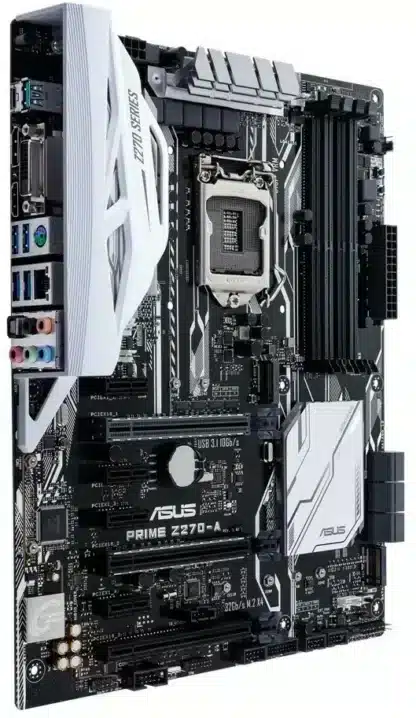

Asus Prime Z270-A:  Motherboard | ATX | Socket 1151 | 6th and 7th Gen CPU Support | Intel Z270 | 4xDDR4 | PCI-e 3.0 x16 | PCI-e 3.0 x1 | PCI | M.2 | Sata-600 | USB 3.1 Gen2 Type-A | USB 3.1 Gen2 Type-C | DVI-D | Display port | HDMI

Product:Asus Prime Z270-A
Socket:Socket 1151
Suitable for: 6th and 7th generation processors
Category:Motherboards
Brand:ASRock
Condition: Refurbished – with the latest available BIOS version
EAN: 0889349578858, 4058154158159, 4712900578850
SKU:90MB0RU0-M0EAY0, Prime Z270-A
Warranty: 6 months

Drivers for the Asus Prime Z270-A
Processors supported by the Asus Prime Z270-A

package contents:
– Motherboard (Asus Prime Z270-A)
–IO-Shield (tin back plate)
– No manual
– No driver CD
– No cables

CPU
Intel® Socket 1151 for 7th / 6th Generation Core™ i7/Core™ i5/Core™ i3/ Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* Support of these features depends on the CPU types.
Chipset Intel® Z270 Chipset

Memory
4 x DIMM, max. 64GB DDR4 3866(O.C.) / 3733(O.C.) / 3600(O.C.) /
3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) /
3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133(O.C.) MHz
Non-ECC, Un-buffered Memory Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.

Expansion slots
2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode)
1 x PCI Express 3.0/2.0 x16 slot* (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
4 x PCI Express 3.0/2.0 x1 slots

VGA
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support: DisplayPort/HDMI/DVI-D ports
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@24Hz Supports DVI-D with max. resolution 1920 x 1200@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Supports up to 3 displays simultaneously Maximum shared memory of 1024MB
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU support Supports NVIDIA® 2-Way SLI® Technology Supports AMD® 3-Way CrossFireX™ Technology

LAN
Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
ASUS LAN Guard ASUS Turbo LAN Utility

USB
Intel® Z270 Express Chipset
– 6 x USB 3.0/2.0 ports (2 ports @mid-board, 4 ports @back panel, blue)
– 6 x USB 2.0/1.1 ports (6 ports @mid-board)
Asmedia® USB 3.1 controller – supports 3A power output
– 1 x USB 3.1/3.0/2.0 port @back panel (teal blue, Type-A)
– 1 x USB 3.1/3.0/2.0 port @back panel (Type-C)

Storage
Intel® Z270 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support*
– 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)**
– 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)***
– 6 x SATA 6.0 Gb/s ports (gray)
– Ready for Intel® Optane Memory****
– Supports Intel® Smart Response Technology*****
* Supports PCIE RAID configurations via onboard M.2 storages.
** The M.2_1 socket shares bandwidth with SATA_1 port when using M.2 SATA devices. Adjust BIOS settings to use a SATA device.
*** The M.2_2 socket shares bandwidth with SATA_56 ports when using M.2 PCIE devices in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode.
**** Intel® Optane Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from the ASUS support website.
*****These functions will work depending on the CPU installed.

Audio
Realtek® S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3
– Power pre-regulator reduces power input noise to ensure consistent performance
– Separate layer for left and right track, ensuring both sound deliver equal quality
– Impendance sense for front and rear headphone outputs
– Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference
– EMI protection cover to prevent electrical noise to affect the amplifier quality
– Internal audio amplifier to enhance the highest quality sound for headphone and speakers
– Unique de-pop circuit to reduce start-up popping noise to audio outputs
– Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
– High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR recording input (Line-in) support
– Supports up to 32-Bit/192kHz playback*
– DTS® HeadphoneX
– DTS® Connect
– Supports jack-detection, multi-streaming, front panel jack-retasking (MIC)
– Optical S/PDIF out port at back I/O
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows® 10.

Internal I/O connectors
1 x USB 3.0/2.0 connectors support additional 2 USB ports (19-pin) 3 x USB 2.0/1/1 connectors support additional 6 USB ports
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices, PCIE mode)
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices, PCIE & SATA mode)
6 x SATA 6.0Gb/s connectors (gray)
1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan header (4-pin) 1 x AIO Pump header (4-pin)
1 x High AMP Fan header (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
1 x RGB header
2 x 3D Mount screw ports
1 x Front panel audio connector (AAFP)
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x TPM connector
1 x COM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector 1 x System Panel (Q-Connector)
1 x MemOK! button 1 x Power-on button 1 x CPU OV jumper
1 x Clear CMOS header 1 x EZ XMP switch
1 x 5-pin EXT_FAN (Extension Fan) connector

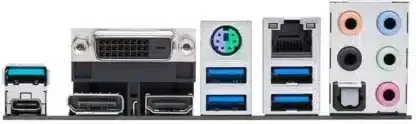

Back Panel I/O Ports
1 x DisplayPort 1 x HDMI port 1 x DVI-D
1 x Optical S/PDIF out
1 x Intel LAN (RJ45) port
1 x USB 3.1/3.0/2.0 port (teal blue, Type A) 1 x USB 3.1/3.0/2.0 port (Type C)
4 x USB 3.0/2.0 ports (blue)
8-channel Audio I/O ports

BIOS Features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI
6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE

Operating system support
Windows® 10 64-bit
Windows® 8.1 64-bit* Windows® 7*
* Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
Form factor ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
