Description

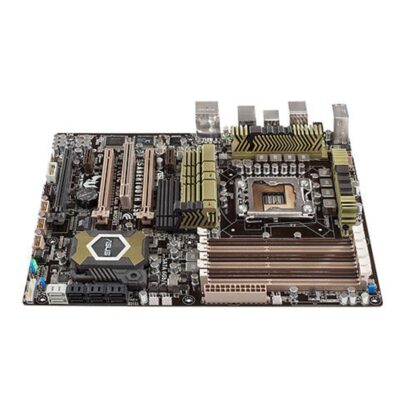

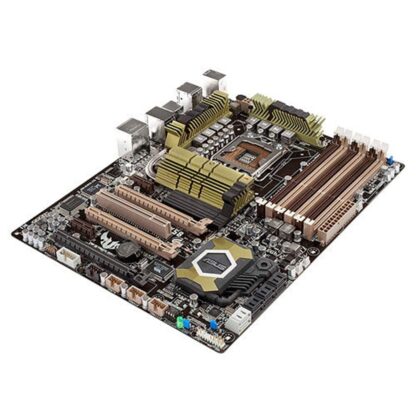

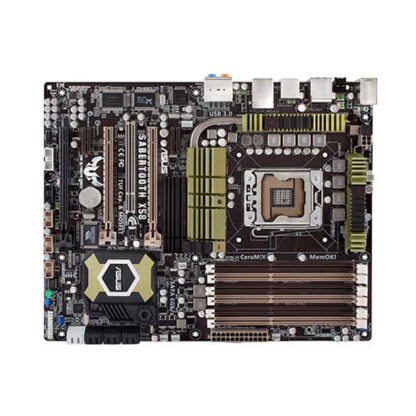

The Asus SABERTOOTH X58 Socket 1366 motherboard is an ATX motherboard which is equipped with 6 DDR3 memory slots. The Asus SABERTOOTH X58 Socket 1366 motherboard motherboard is a luxury LGA1366 motherboard which is equipped with a network (RJ-45) connection, IEEE1394, eSATA and no less than 6 DDR3 memory slots
Motherboard – Socket LGA1366 | ATX | Intel X58 Chipset | 6 x DDR3 up to 24GB | 1x Gigabit Ethernet | PCI | 2x PCI-e 2.0 x1 | 2x PCI-e 2.0 x16 | PCI-e x4 | eSATA | 12x USB 2.0 | 2x USB 3.2 (Gen1, 5Gb/s) | 6x SATA-300 | 2x SATA 600
Product: ASUS SABERTOOTH X58 Socket 1366;
Category: Intel socket 1366 Motherboards;
Brand: ASUS ;
EAN: 4719543177075
SKU: 90-MIBDK0-G0AAY00Z, 90-MIBDK0-G0EAY00Z, SABERTOOTH X58
Condition: Used – Bios updated to the latest version
Warranty: 3 Months
package content:
– Motherboard (Asus Sabertooth X58)
– Backplate (blende)
– no manual
– no driver CD
– no cables
CPU
– Intel® Socket 1366 Core™ i7 Extreme Edition/Core™ i7 Processors
– Supports Intel® Turbo Boost Technology
Chipset
– Intel® X58 / ICH10R
Memory
– 6x DIMM, Max. 24GB, DDR3 1866/1800/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
– Triple Channel Memory Architecture
– Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
*Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
BIOS
– 16 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a
Audio
Realtek® ALC 892 8-Channel High Definition Audio CODEC
– Supports : Jack detection, Multi streaming, Front Panel Jack retasking
Audio Feature :
– Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
– ASUS Noise Filter
– Optical S/PDIF out port(s) at back panel
LAN
Realtek® 8110SC, 1 x Gigabit LAN Controller(s), featuring AI NET2
IEEE 1394
VIA® 6308P controller
2 x IEEE 1394a port(s)
(1 at mid board, 1 at back panel)
Slots:
– 2 x PCIe 2.0 x16 (dual x16)
– 1 x PCIe x16 (x4 mode)
– 2 x PCIe x1
– 1 x PCI
Storage
Intel® ICH10R controller :
– 6 x SATA 3Gb/s port(s), black
– Support Raid 0, 1, 5, 10
Marvell® PCIe 9128 controller : *1
– 2 x SATA 6Gb/s port(s), gray
JMicron® JMB362 controller :
– 1 x Power eSATA 3Gb/s port(s), green
– 1 x eSATA 3Gb/s port(s), red
USB
NEC® USB 3.0 controller :
– 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® ICH10R controller :
– 12 x USB 2.0 port(s) (6 at back panel, black+red, 6 at mid-board)
Connector
– 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
– 1 x COM port(s) connector(s)
– 2 x SATA 6Gb/s connector(s)
– 6 x SATA 3Gb/s connector(s)
– 1 x IEEE 1394a connector(s)
– 1 x CPU Fan connector(s)
– 3 x Chassis Fan connector(s) (1 x 4-pin, 2 x 3-pin)
– 1 x Power Fan connector(s)
– 1 x Optional Fan connector(s)
– 1 x S/PDIF out header(s)
– 1 x 24-pin EATX Power connector(s)
– 1 x 8-pin ATX 12V Power connector(s)
– 1 x Front panel audio connector(s) (AAFP)
– 1 x System panel(s) (Q-Connector)
– 1 x MemoOK! button(s)

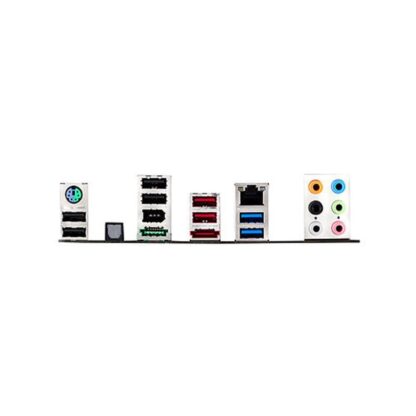

Rear Panel I/O
I/O Panel
– 1 x PS/2 keyboard/mouse combo port(s)
– 1 x eSATA 3Gb/s
– 1 x Power eSATA 3Gb/s
– 1 x IEEE 1394a
– 1 x LAN (RJ45) port(s)
– 6 x USB 2.0
– 1 x Optical S/PDIF out
– 6 x Audio jack(s)
Accessories
– I/O Shield
Form Factor
– ATX Form Factor
– 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
