Description

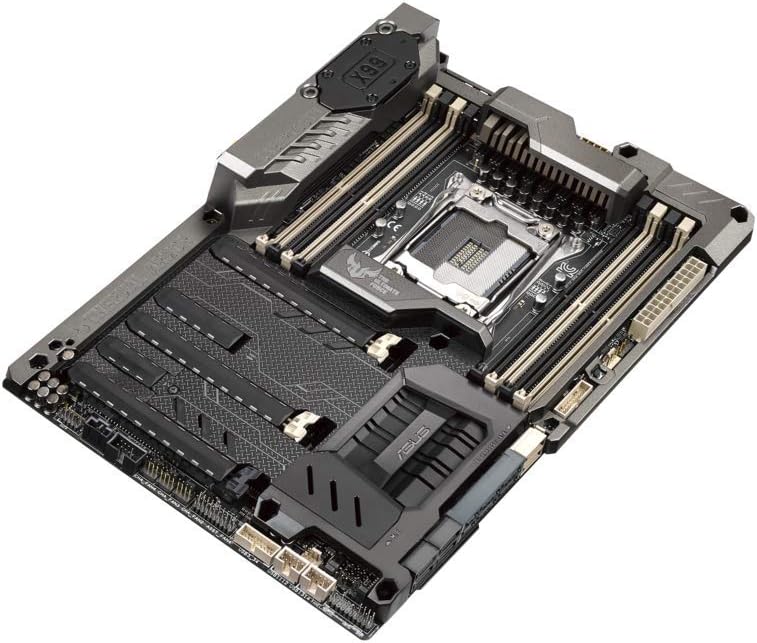

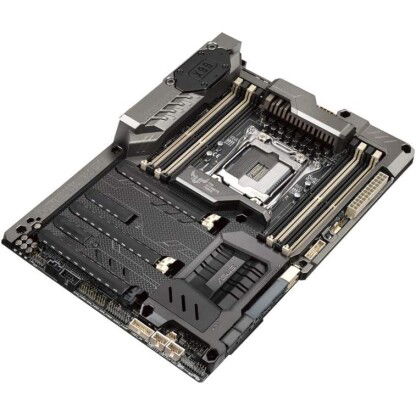

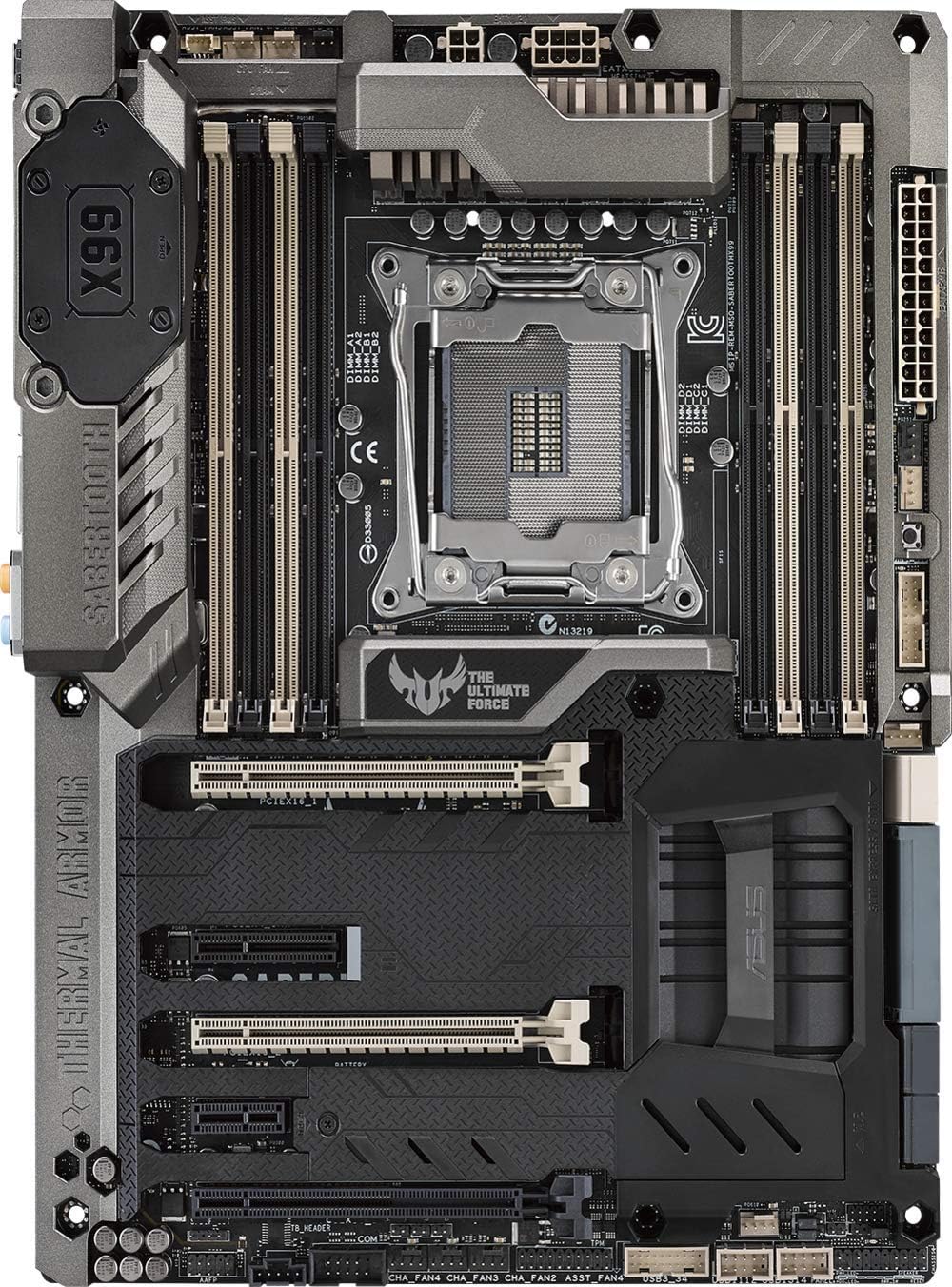

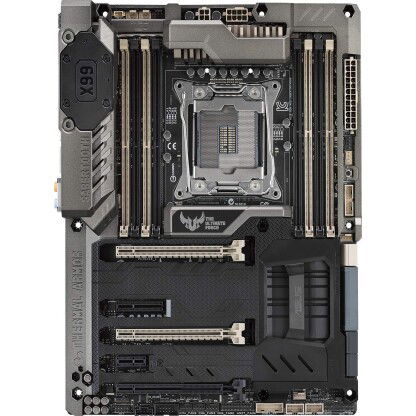

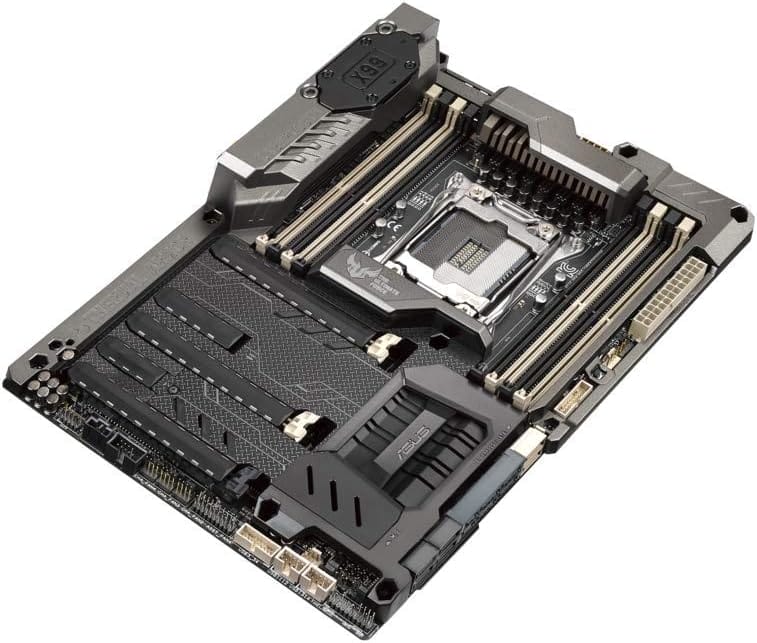

ASUS X99 Sabertooth is a socket 2011-3 ATX motherboard, featuring 8 DDR4 memory slots with a maximum capacity of 64GB.
Features: Motherboard | ATX | Socket 2011-3 | 8x DDR4 (max 128GB) | Sata-600 | M.2 | SATA Express | USB 3.1 (Type-A)
Click here for supported processors.
Click here for drivers
Product: ASUS X99 Sabertooth
Socket: Socket 2011-3
Category: Motherboards
Brand: ASRock
Condition: Refurbished
EAN: 4712900024326
SKU: 90MB0L00-M0EAY0, 90MB0L00-M0EAY1, SABERTOOTH X99
Warranty: 6 months
Package contents:
– Motherboard (ASUS X99 Sabertooth)
– I/O Shield (metal rear panel)
– No antennas
– No manual
– No CD with drivers
– No cables
CPU
New Intel® Core™ i7 processors on LGA 2011-v3 Socket
Supports 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
Support for these features depends on the CPU type.
** Please refer to www.asus.com for a complete list of supported CPUs.
Chipset
Intel® X99 Express Chipset
Memory
8 x DIMM, max. 64 GB, DDR4 2400/2133 MHz, non-ECC, unbuffered memory
Quad-channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
Hyper DIMM support depends on the physical characteristics of individual CPUs. Refer to the Memory QVL (Qualified Vendors List) for details.
Check www.asus.com or this user manual for the complete Memory QVL (Qualified Vendors List).
Expansion slots
40-Lane CPU-
3 x PCI Express 3.0/2.0 x16 slots (single @x16, dual @x16/x16, triple @x16/x16/x8)
1 x PCI Express 2.0 x4 slot (maximum x2 mode, compatible with PCIe x1 and x2 devices)
1 x PCI Express 2.0 x1 slot
28-Lane CPU-
3 x PCI Express 3.0/2.0 x16 slots* (single @x16, dual @x16/x8, triple @x16/x8/x4)
1 x PCI Express 2.0 x4 slot (maximum x2 mode, compatible with PCIe x1 and x2 devices)
2 x PCI Express 2.0 x1 slots
The PCIe x16_3 slot shares bandwidth with the M.2 x4. When the M.2 socket is in use, the PCIe x16_3 slot is disabled.
Multi-GPU support
Supports NVIDIA® 3-Way/Quad-GPU SLI™ technology (with 2 PCIe x16 graphics cards)
Supports AMD® 3-Way/Quad-GPU CrossFireX™ technology
LAN
Dual Gigabit LAN controller – 802.3az Energy Efficient Ethernet (EEE) device
Intel® I218-V Gigabit LAN controller – Dual interconnect between the integrated LAN controller and physical layer (PHY)
Realtek® 8111GR Gigabit LAN controller
Storage
New Intel® Core™ i7 processors
1 x M.2 x4 Socket 3 with M Key, supports 2242/2260/2280/22110 storage devices (supports only PCIe SSD)
Intel® X99 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 13 support
1 x SATA Express port (gray, compatible with 2 x SATA 6.0 Gb/s ports)
8 x SATA 6.0 Gb/s ports* (4 x beige/gray from controller 1, 4 x black from controller 2)
Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology**
Due to chipset behavior, SATA6G_78, SATA6G_910 ports (black) do not support IRST, including RAID
** These features work depending on the installed CPU.
Audio
Realtek® ALC1150 8-channel High Definition audio CODEC
– Audio shielding ensures precise analog/digital separation and greatly reduced interference
– Separate layers for left and right channels ensuring equal sound quality for both
– Top-quality audio experience based on audio configuration
– Audio amplifier for improving sound quality for headphones and speakers
– High-quality 112dB SNR stereo playback output (Line-out rear) and 104dB SNR recording input (Line-in) support
– Absolute pitch 192kHz/24bit true BD lossless sound
– BD Audio Layer Content Protection
– Supports Jack Detection, Multi-streaming, and Front Panel Jack-Retasking
– Optical S/PDIF output ports at the rear I/O
USB
Intel® X99 Express Chipset – supports ASUS USB 3.1 Boost
4 x USB 3.0/2.0 ports on the motherboard for front panel support
4 x USB 3.0/2.0 ports on the rear (blue)
8 x USB 2.0/1.1 ports (4 ports on the motherboard, 4 ports on the rear)
1 x ASMedia® USB 3.1 controller – supports ASUS USB 3.1 Boost
2 x USB 3.1/3.0 ports on the rear (teal blue)
Exclusive TUF Features
“Ultimate COOL!” Thermal Solution
TUF Thermal Armor
TUF Thermal Radar 2 with Thermistors
TUF ICe
“We Got Your Back” Shape Force

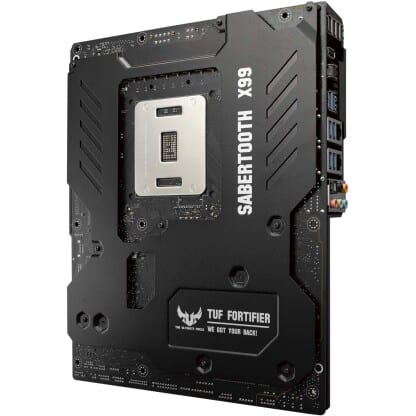

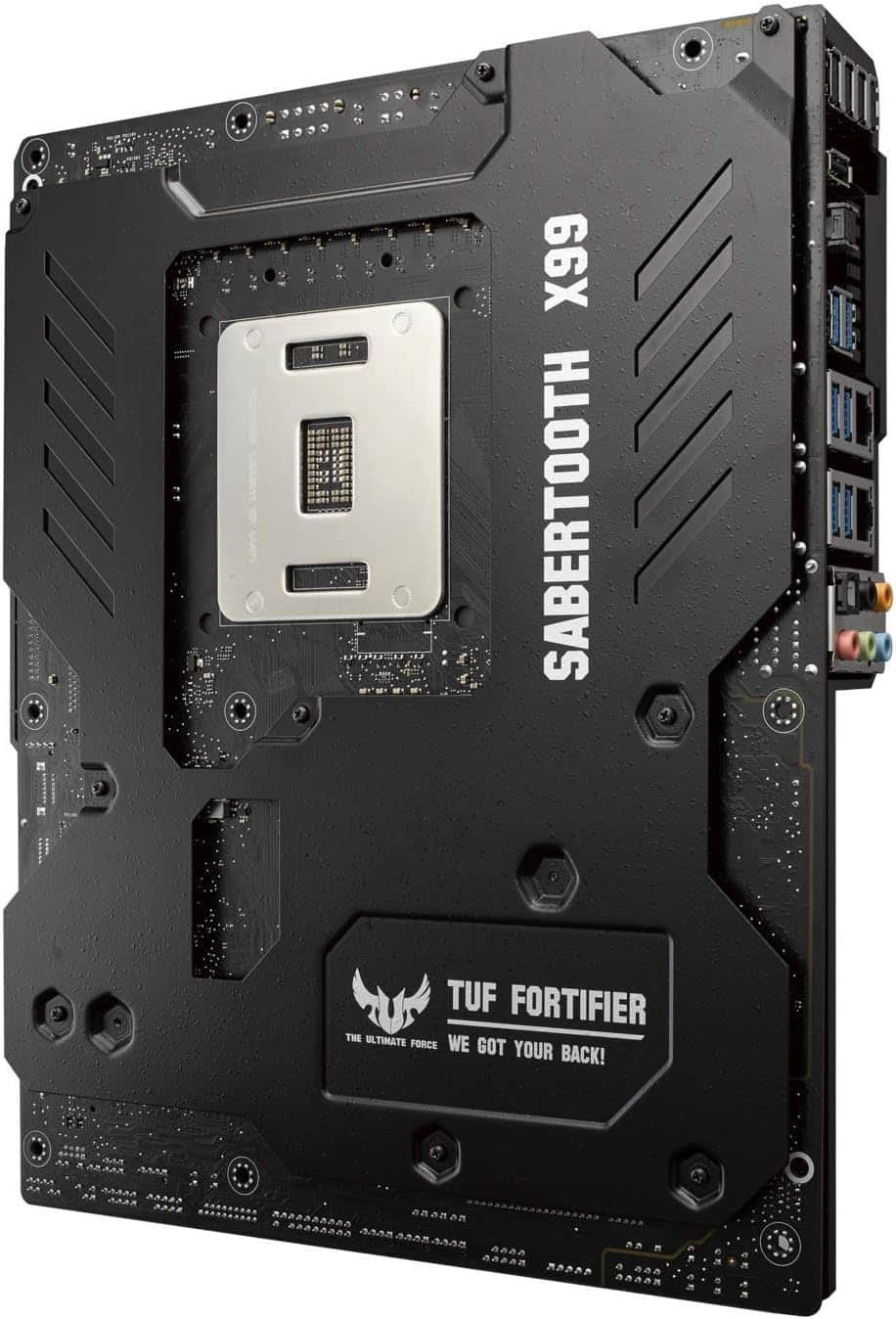

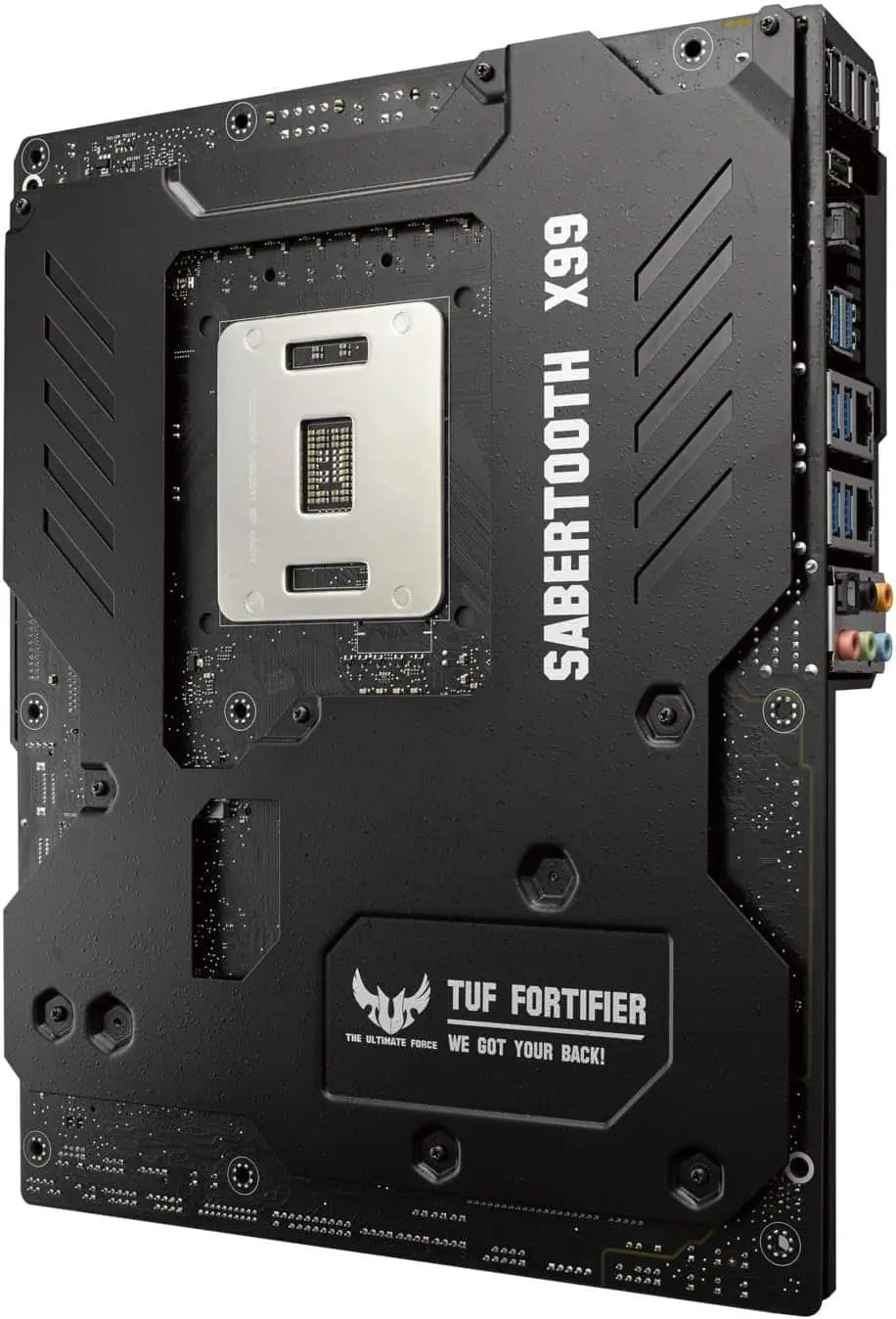

TUF Fortifier
“TUF ENGINE” Power Design
8+2 Digital Phase Power Design
TUF Components (10K Ti-Cap, Choke & MOSFET; certified according to military standards)
ASUS DIGI+ Power Control Utility
“SAFE & Stable!” Guardian Angel
TUF Detective
TUF ESD Guards 2
Dust Defenders with connector caps and rear I/O dust filter
MemOK!
Other Special Features
USB 3.1 Boost with fast USB 3.1 transfer
USB BIOS Flashback with USB BIOS Flashback Wizard for easy BIOS download planning
USB Charger+ with fast charging function for all smart devices
ASUS Remote GO! with Cloud GO! Remote Desktop, Remote Keyboard and Mouse, and File Transfer
ASUS UEFI BIOS EZ Mode with user-friendly graphical interface
Turbo LAN for smooth online gaming experience with lower pings and less lag
Push Notice monitors the status of your PC in real time with smart devices
AI Suite 3
ASUS Q-Connector
ASUS Q-Shield
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Slot
ASUS Q-DIMM
ASUS O.C. Profile
ASUS CrashFree BIOS 3
ASUS EZ Update
Disk Unlocker
ASUS EZ Flash 2
Multilingual BIOS

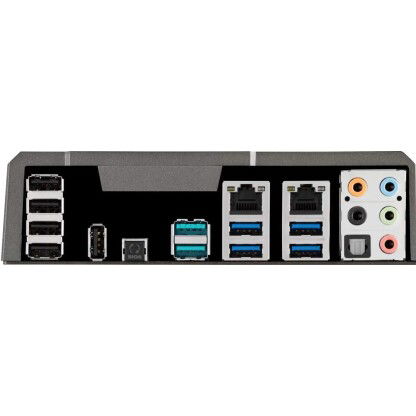

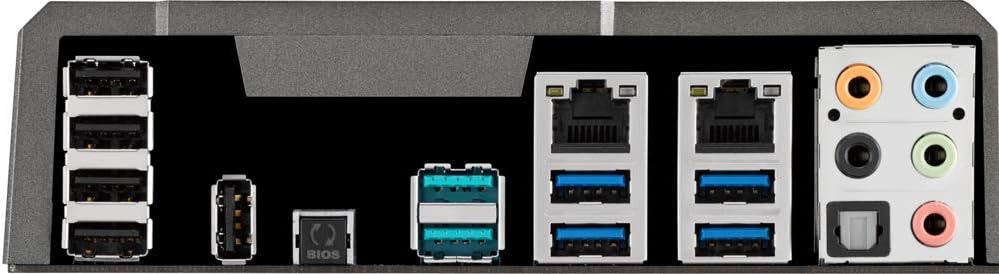

Rear I/O ports
1 x Optical S/PDIF output
1 x USB BIOS Flashback button
2 x LAN (RJ45) ports
2 x USB 3.1/3.0 ports (teal blue, supports ASUS USB 3.1 Boost)
4 x USB 3.0/2.0 ports (blue, 1 supports USB BIOS Flashback)
4 x USB 2.0/1.1 ports
8-channel Audio I/O ports
Internal I/O Connectors
2 x USB 3.0/2.0 connectors support 4 additional USB 3.0/2.0 ports (19-pin; beige)
2 x USB 2.0/1.1 connectors support 4 additional USB 2.0/1.1 ports
8 x SATA 6 Gb/s connectors (2 x beige; 2 x gray under SATA Express connector; 4 x black)
1 x CPU fan connector (4-pin white) for both 4-pin (PWM mode) and 3-pin (DC mode) CPU coolers with auto-detection support
1 x CPU OPT fan connector (4-pin black) for both 4-pin (PWM mode) and 3-pin (DC mode) CPU coolers
4 x Chassis fan connectors (4-pin black) for both 4-pin (PWM mode) and 3-pin (DC mode) CPU coolers
5 x Assistant fan connectors (4 x 4-pin [beige]; 1 x 4-pin for dust-de-fan [white])
Front panel audio connector (AAFP)
24-pin EATX power connector, 8 + 4-pin EATX power connector
System panel (Q-Connector)
1 x MemOK! button
1 x DRCT (DirectKey) connector
3 x Thermal Sensor (T_Sensor) headers
1 x chassis intrusion header
1 x S/PDIF Out header
1 x TPM header
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x Clear CMOS jumper
BIOS Features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Multilingual BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.7, WOL via PME, PXE
Form Factor
ATX Form Factor: 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
