Product information

Specifications: Motherboard | Socket LGA1150 | M-ATX | Intel Z97 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet – DVI-D | HDMI | VGA | 6x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s) | 2x PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16

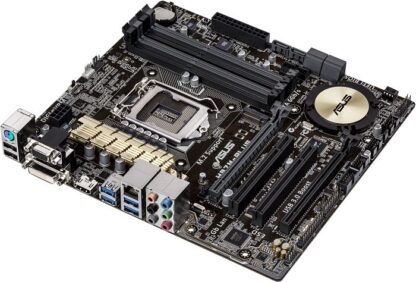

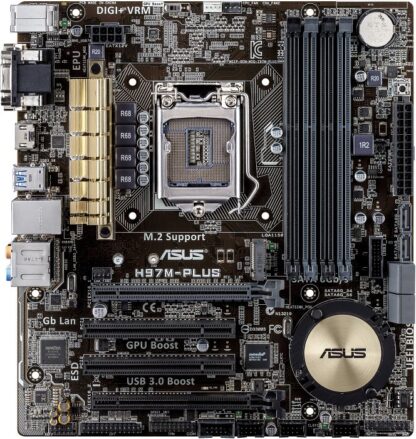

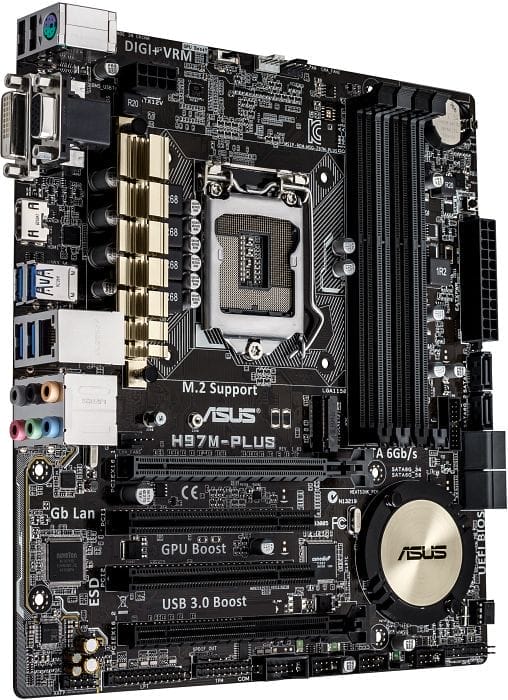

Product: Asus Z97M Plus
Category: Motherboards
Brand: Asus
EAN: 0886227758296, 4716659758297, 5054230928462
SKU: 90MB0IH0-M0EAY0, 90MB0IH0-M0EAY5, Z97M-PLUS
Condition: Used
Warranty: 6 Months

package content:
– Motherboard
– IO-Shield (tin back plate)
– No manual
– No driver CD
– No cables

CPU
LGA1150 socket for the 4th, New 4th & 5th Generation Intel® Core™ i7/
Core™ i5 / Core™ i3, Pentium®, and Celeron® processors
Supports 22nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset
Intel® Z97 Express Chipset

Memory
4 x DIMM, max. 32GB, DDR3 3200(O.C.)*/3100(O.C.)*/3000(O.C.)*/
2933(O.C.)*/2800(O.C.)*/2666(O.C.)*/2600(O.C.)*/2400(O.C.)*/
2250(O.C.)*/2200(O.C.)*/2133(O.C.)*/2000(O.C.)*/ 1866(O.C.)*/
1600/1333MHz, non-ECC, unbuffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual
CPUs. Please refer to Memory QVL (Qualified Vendors List) for details.

Expansion slots
1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 2.0 x16 slot (max. at x4 mode, compatible with PCIe x1
and x4 devices)
2 x PCI slots

Graphics
Integrated Graphics Processor – Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB port
Supports HDMI with max. resolution of 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
Supports DVI-D with max. resolution of 1920 x 1200 @60Hz
Supports RGB with max. resolution of 1920 x 1200 @60Hz
Supports Intel® InTru™ 3D, Intel® Quick Sync Video, Intel® Clear Video
HD Technology, and Intel® Insider™
Supports up to three displays simultaneously
Maximum shared memory or 512MB

Multi-GPU
support Supports AMD® Quad-GPU CrossFireX™ ​​Technology

Storage
Intel® Z97 Express Chipset with RAID 0, 1, 5, 10 and Intel®
Rapid Storage Technology 13 support
– 1 x M.2 Socket 3*
– 6 x SATA 6.0 Gb/s ports (gray)
– Supports Intel® Smart Response Technology, Intel® Rapid Start
Technology, and Intel® Smart Connect Technology**
* This socket supports M Key and type 2242/2260/2280 storage devices (Type
2242 storage device is supported on Rev. 2.00 or later versions of this
motherboard).
** These functions will work depending on the CPU installed.

LAN
Gigabit Intel LAN controllers- 802.3az Energy Efficient Ethernet (EEE)
appliance
Intel® I218-V Gigabit LAN- Dual interconnect between the integrated
LAN controller and physical layer (PHY)

Audio
Realtek® ALC887 7.1 Channel High Definition Audio CODEC featuring Crystal Sound 2
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Audio amplifier: Provides the highest-quality sound for headphone and speakers
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Unique de-pop circuit: Reduces start-up popping noise to audio outputs
– Supports jack detection, multi-streaming, and front panel jack retasking

USB
Intel® Z97 Express Chipset
– supports ASUS USB 3.0 Boost
– 6 x USB 3.0/2.0 ports (2 ports at mid-board, 4 ports at rear panel [blue])
– 8 x USB 2.0/1.1 ports (6 ports at mid-board, 2 ports at rear panel)

Back Panel I/O Ports
1 x PS/2 mouse/keyboard combo port
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ-45) port
4 x USB 3.0/2.0 ports (blue)
2 x USB 2.0/1.1 ports
6 x audio jacks support 7.1 channel

Internal I/O connectors / jumpers / buttons
1 x 19-pin USB 3.0/2.0 connector supports additional 2 USB ports
3 x USB 2.0/1.1 connectors support additional 6 USB ports
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices)*
6 x SATA 6.0 Gb/s connectors (gray)
1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control**
2 x 4-pin Chassis Fan connectors for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System panel connector
1 x MemOK! button
1 x GPU Boost switch (advanced two-stage adjustments)
1 x Parallel port connector
1 x Clear CMOS jumper
1 x TPM header
1 x COM port
* This socket supports M Key and type 2242/2260/2280 storage devices (Type 2242
storage device is supported on Rev. 2.00 or later versions of this motherboard).
** The CPU Q-Fan control setting is set as default in Auto mode for detecting the
type of CPU fan installed and switches to the control mode automatically.

BIOS features
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.7, WfM 2.0, SM BIOS 2.8,
ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11
EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last
Modified Log, F12 PrintScreen function, F3 Shortcut function, and ASUS
DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE

Operating system support
Windows® 8.1
Windows® 8
Windows® 7

Form factor
uATX form factor: 9.6 in. x 8.8 in. (24.4 cm x 22.4 cm)
