Description

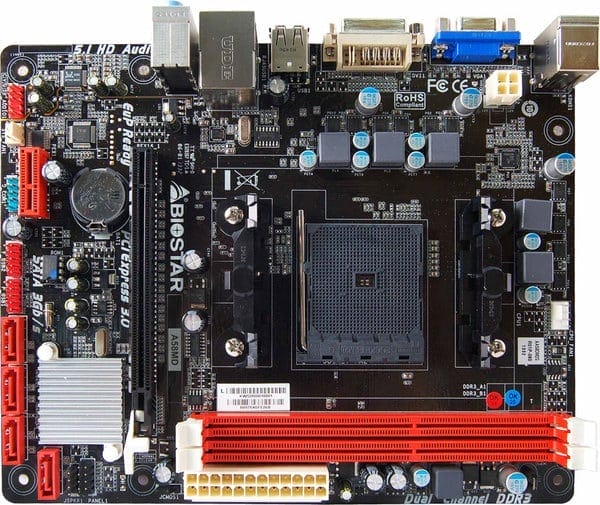

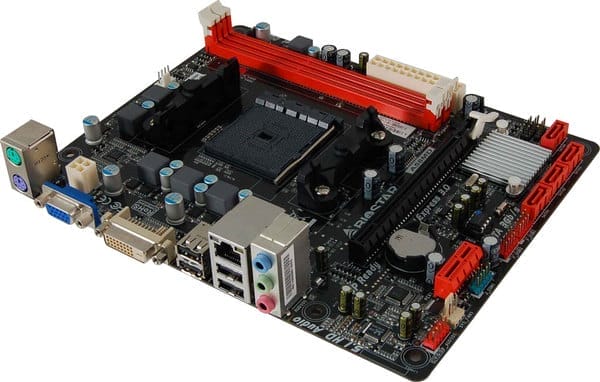

The Biostar A58MD V6.2 is an AMD FM2+ motherboard, equipped with 2 DDR3 memory slots with a maximum capacity of 32GB.
Motherboard – AMD FM2+ | Micro ATX | DDR3 (Max 32GB) | Gigabit Ethernet | PCI-e 3.0 x16 | PCI-e 2.0 x1 | SATA-300 | Sata-600 | eSATA | USB 2.0 | DVI | VGA
Product: Biostar A58MD V6.2
Brand: Biostar;
EAN: 0802700505478, 4712795658385
SKU: A58MD
Condition: Used
Warranty: 6 Months
CPU
AMD A10 Processor
AMD A8 Processor
AMD A6 Processor
AMD A4 Processor
AMD E2 Processor
AMD Athlon™ II X4 Processor
Maximum CPU TDP (Thermal Design Power) : 100Watt
Memory
Support Dual Channel DDR3 2600(OC)/2400(OC)/2133/1866/1600/1333/1066/800MHz
2 x DDR3 DIMM Memory Slot
max. Supports up to 32GB Memory
LAN
Realtek RTL8111G – 10/100/1000 Controller
Slots
1 x PCI-E 3.0 x16 Slot(supported by FM2+ CPU)
1 x PCI-E 2.0 x1 Slot
SATA
4 x SATA II Connector
Support SATA RAID: 0,1,10
Connector
2 x USB 2.0 Header
4 x SATA II Connector (3Gb/s )
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x COM Port Header

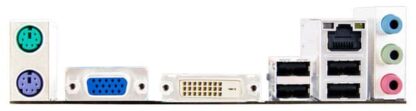

Rear Panel I/O
I/O Panel
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x DVI (Dual Link) Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
Accessories
I/O Shield
Form Factor
Micro ATX Form Factor Dimension: 21.8cm x 17.4cm (W x L)
OS
Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
