Description

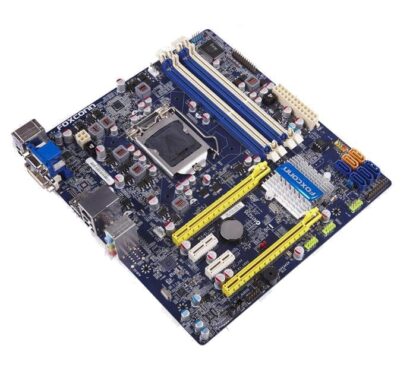

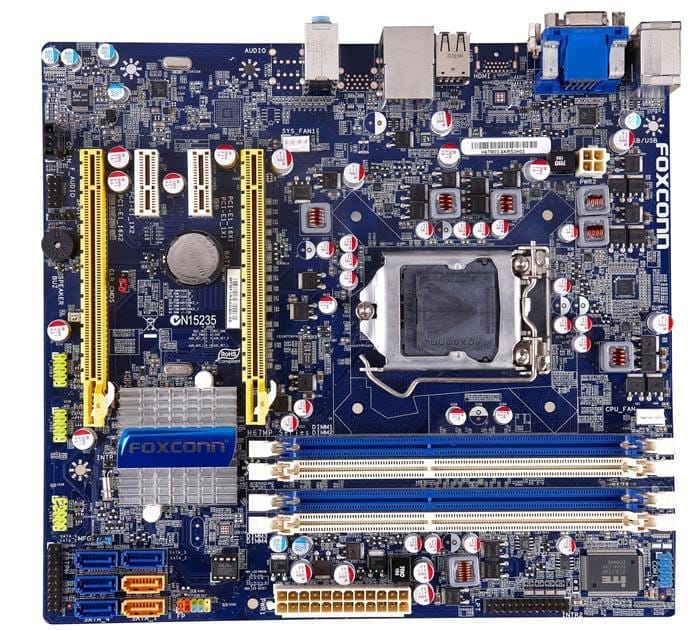

The Foxconn H67MP-V V2.0 LGA1155 motherboard is a micro-ATX motherboard that is equipped with 4 DDR3 memory slots. The Foxconn H67MP-V V2.0 Socket 1155 motherboard is an LGA1155 motherboard that is equipped with VGA, DVI, of course, the standard connections such as USB, Audio, and RJ-45 are also not missing on this motherboard.
Specifications:
Motherboard – LGA1155 | M-ATX | Intel H67 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | DVI-D | VGA (D-Sub) | 2x PCI-e 2.0 x16 | 2x PCI-e 2.0 x1
Product: Foxconn H67MP-V V2.0 Socket 1155;
Category: Intel LGA1155 Motherboards;
Brand: Foxconn
EAN: 6943296907957
SKU: H67MP-V
Condition: Used
Warranty: 6 Months
Processors Supported by the Foxconn H67MP-V R2.0
Extensive product specifications:
CPU
– Supports 3rd and 2nd Generation Intel® Core ™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology
Chipset
– Intel® H67
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
* Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
Memory
– Dual-Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
Supports DDR3 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB *
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
** The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to the Intel® official website.
*** To maximize the system memory, please install an 8GB memory module with 16 cells
BIOS
– 64Mb flash EEPROM w / LAN boot PnP, ACPI, WfM, DMI 2.0
Graphics
Built-in graphics adapter: Yes
- Graphics adapter: HD Graphics
- Graphics adapter family: Intel
- Parallel processing technology support:
Audio
– 5.1 CH HD Audio
LAN
– Gigabit Ethernet
Slots
– 2 x PCI Express 2.0 x16 slot
– 2 x PCI Express 2.0 x1 slot
– Supports SLI
Connector
– 4 x SATA2 3.0 Gb / s connectors
– 2 x SATA3 6.0 Gb / s connectors
– 1 x COM port header
– 1 x SPDIF header
– 1 x CPU Fan connectors (1 x 4-pin)
– 1 x Chassis Fan connectors (1 x 4-pin)
– 24 pin ATX power connector
– 4 pins 12V power connector
– 3 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I / O
I / O Panel
– 1 x PS / 2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 6 x Ready-to-Use USB 2.0 Ports
– 1 x RJ-45 LAN Ports with LED (ACT / LINK LED and SPEED LED)
HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Accessories
– I / O Shield
Form Factor
– Micro ATX Form Factor
