Product information

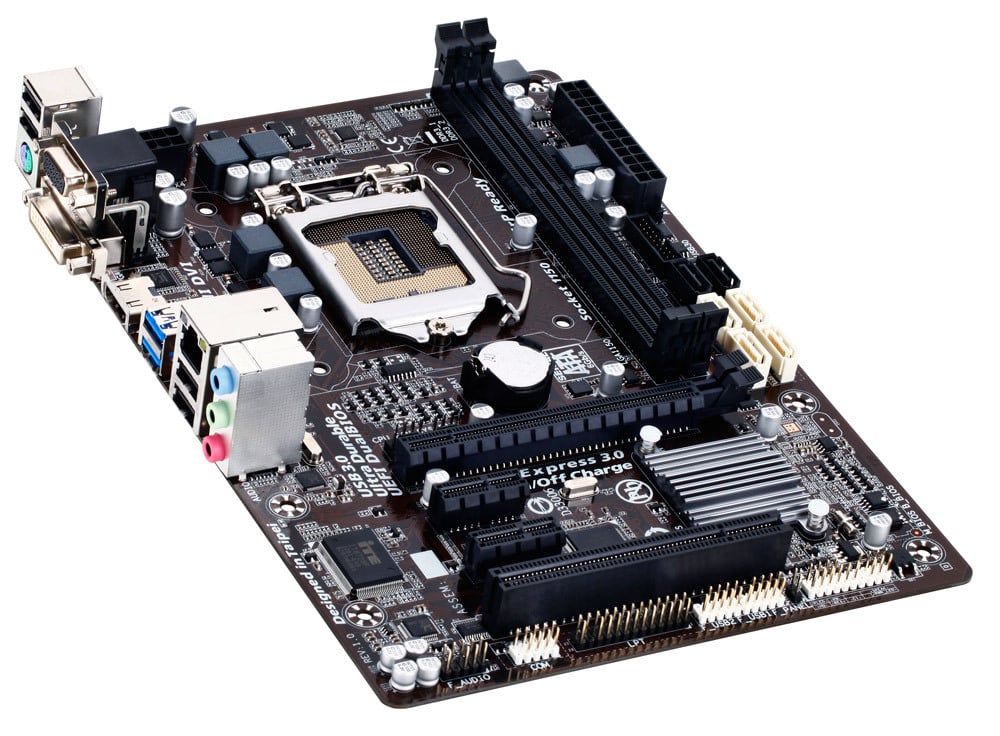

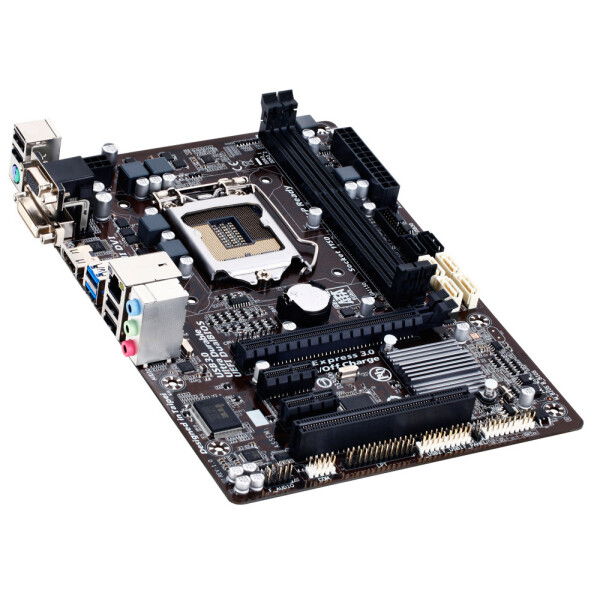

The GA-B85M-HD3G motherboard is a Micro-ATX motherboard with space for 2 DDR3 memory modules, with a maximum of 16GB. The GA-B85M-HD3G motherboard is equipped with two PCI slots and one PCI-e 3.0 x16 slot. it’s a nimble motherboard that fits nicely into the smaller cases.

Specifications:
 motherboard – LGA1150 – Intel B85 chipset – 2x PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16 | 4x USB 2.0 | 3x USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D Sub)


Product: GA-B85M-HD3G
Category: Motherboards
Brand: Gigabyte

Note: This is a refurbished motherboard updated with the latest BIOS version, the product warranty period is 6 months.


package content:
– Motherboard
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)


Chipset
Intel® B85 Express Chipset


Memory
2 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)


Onboard Graphics
Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz
* Support for HDMI 1.4a version.
Maximum shared memory or 1GB


Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1 channel


LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slot
1 x PCI slots


Chip set:

4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) supporting up to 4 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 0/1) supporting up to 2 SATA 3Gb/s devices


USB Chipset:
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x SATA 3Gb/s connectors
1x CPU fan header
1x system fan header
1x front panel header
1x front panel audio header
1x USB 3.0/2.0 header
2x USB 2.0/1.1 headers
1x serial port header
1x parallel port header
1x Clear CMOS jumper

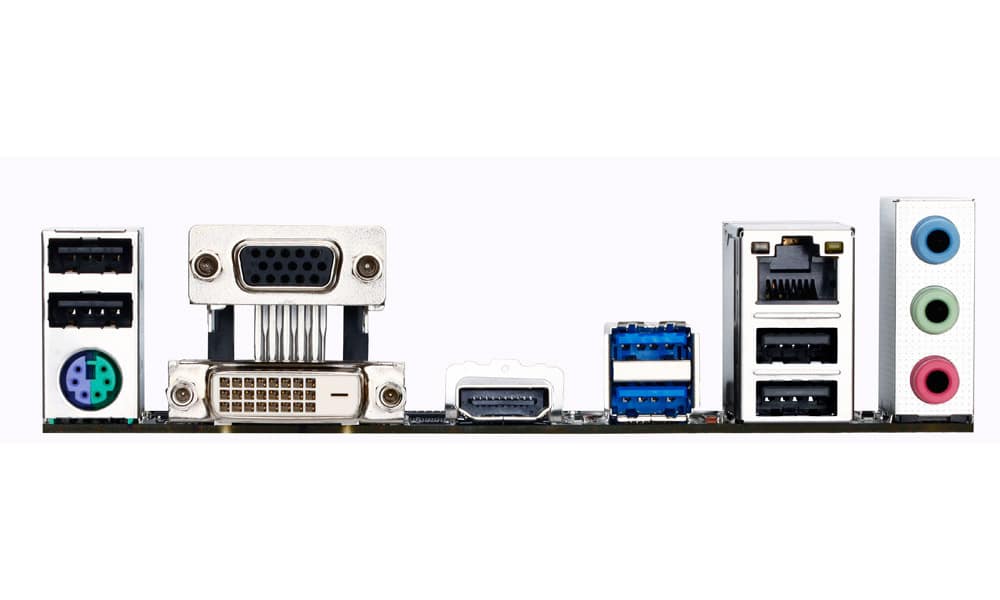

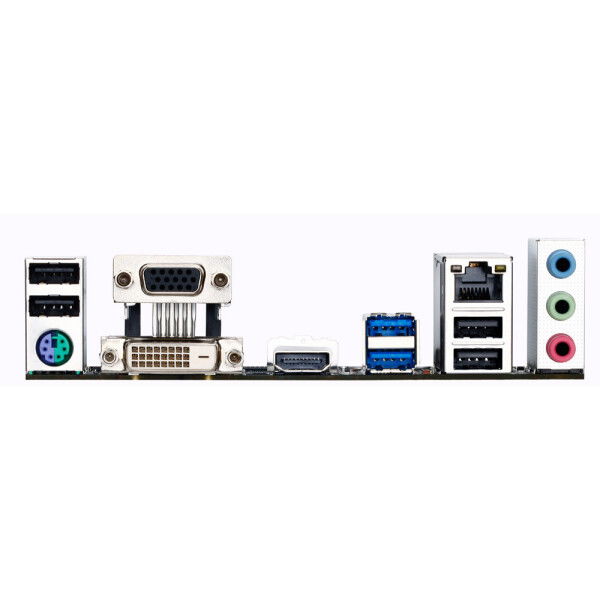

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)


I/O Controller
iTE® I/O Controller Chip


H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.


BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)


Operating System
Support for Windows 10/8.1/8/7


Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm

Specification

Weight 1 kg
Intel

LGA1150

Brand

Gigabyte

Form Factor

Micro-ATX

Chipset

Intel B85

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

D-Sub (VGA), DVI-D, HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

mini-PCIe 2.0 x1, PCI, PCI-e 3.0 x16

Socket

Model

GA-B85M-HD3G

Suitable for

Regular use

particularities

Video Chipset

Length

24.4 cm

Width

22.5 cm

package content

Motherboard and Backplate (Blende)

GA-B85M-HD3G LGA1150 motherboard

Fast delivery

Brand: Gigabyte
Model:GA-B85M-HD3G
Socket: LGA1150
Chipset: Intel B85
Memory: 2x DDR3 (16GB Max)
Form Factor: M-ATX
