Description

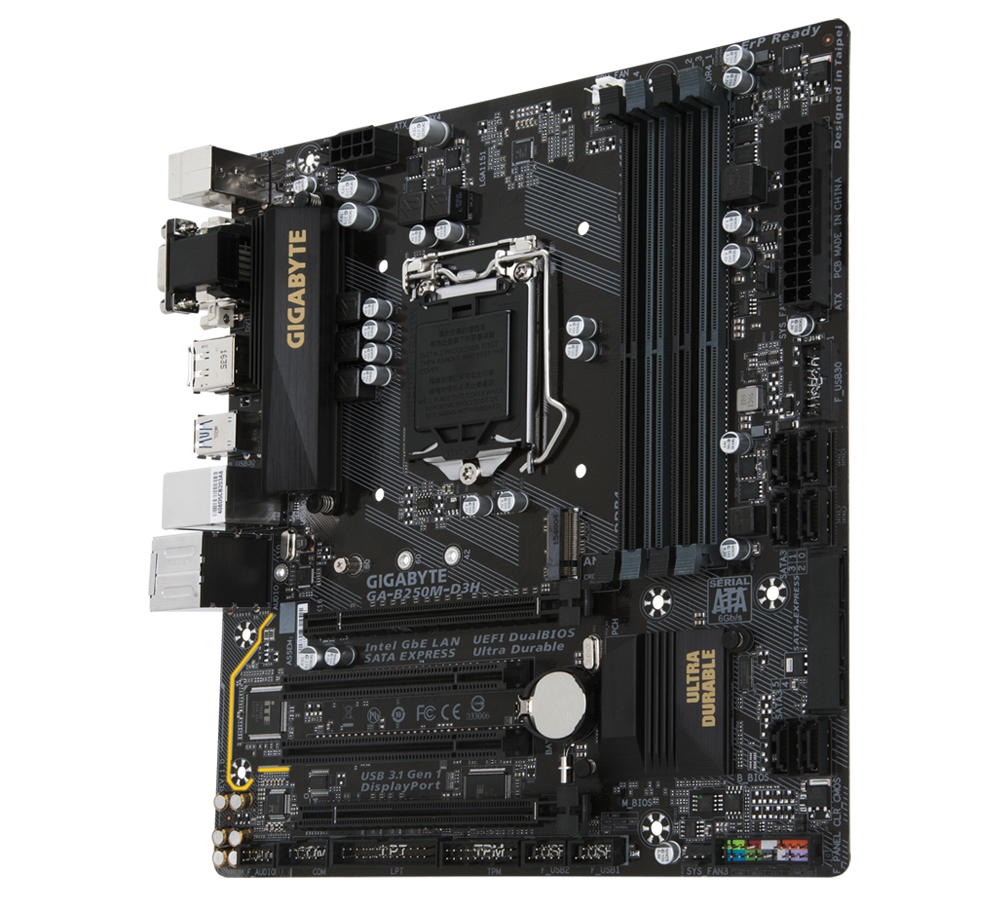

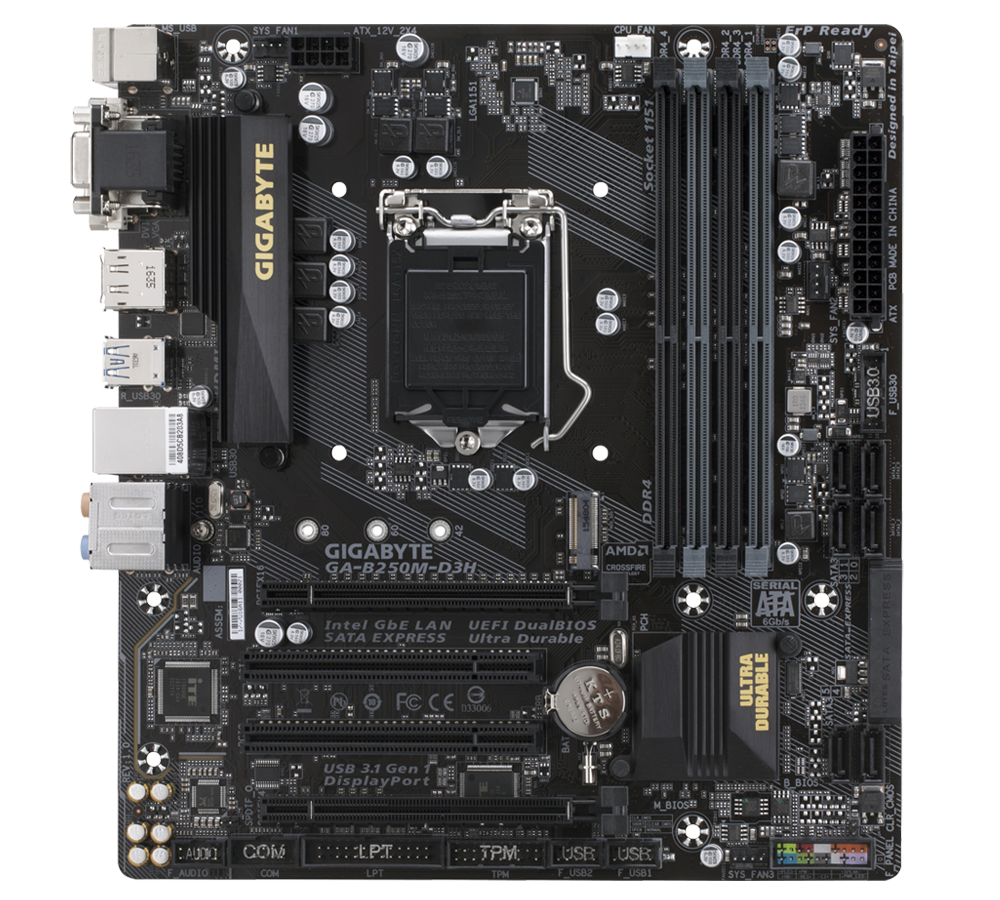

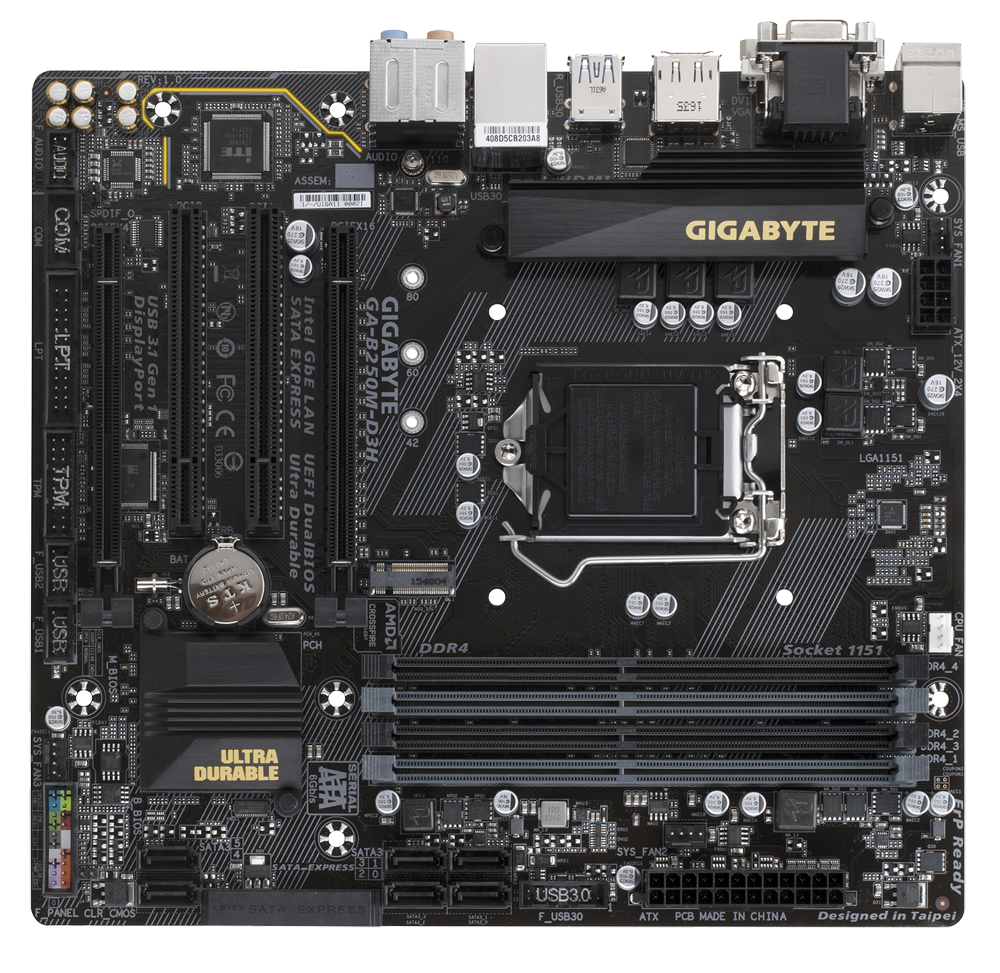

The Gigabyte GA-B250M-D3H is a reliable micro-ATX motherboard, ideal for both home users and office setups. This board supports Intel 6th and 7th generation Core i7, i5, i3, Pentium, and Celeron processors thanks to the LGA1151 socket. It offers excellent connectivity with 4 DDR4 memory slots, 6 SATA III ports, 1 M.2 slot for fast SSDs, and extensive expansion options via PCIe x16 and PCIe x1 slots. For external connections, the motherboard features USB 3.1 and 2.0 ports, HDMI, DVI-D, and VGA for video output, as well as audio and LAN ports. The GA-B250M-D3H combines stability with versatile connectivity, perfect for a powerful and flexible PC build.
Supported CPUs for the Gigabyte GA-B250M-D3H
Drivers for the Gigabyte GA-B250M-D3H
Product: Gigabyte GA-B250M-D3H
Socket: Socket 1151
Compatible with: 6th and 7th generation processors
Category: Motherboards
Brand: Gigabyte
Status: Refurbished
EAN: 4719331847241
SKU: GA-B250M-D3H
Warranty: 6 months
Package contents:
– Motherboard (Gigabyte GA-B250M-D3H)
– I/O Shield (metal backplate)
– No manual
– No driver CD
– No cables
CPU
Chipset
Memory
– 4 x DDR4 DIMM slots, supporting up to 64 GB system memory (Due to a 32-bit Windows OS limitation, when more than 4 GB of physical memory is installed, the actual usable memory may be less than the installed amount)
– Dual channel memory architecture
– Supports DDR4 2400* / 2133 MHz memory modules (*To support 2400 MHz or XMP memory, a 7th generation processor must be installed)
– Supports ECC Un-buffered DIMM 1Rx8/2Rx8 modules (operates in non-ECC mode)
– Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 modules
– Supports Extreme Memory Profile (XMP) modules (*To support 2400 MHz or XMP memory, a 7th generation processor must be installed)
Graphics
1 x DVI-D port, supports a maximum resolution of 1920×1200@60 Hz (The DVI-D port does not support D-Sub via adapter)
1 x DisplayPort, supports a maximum resolution of 4096×2304@60 Hz (Supports DisplayPort version 1.2)
1 x HDMI port, supports a maximum resolution of 4096×2160@24 Hz (Supports HDMI version 1.4) Supports up to 3 simultaneous displays
Maximum shared memory: 1 GB
Expansion slots
LAN
Audio
– High Definition Audio
– 2/4/5.1/7.1-channel
– Support for S/PDIF Out
USB
Storage
Rear I/O ports
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Internal connectors / switches / buttons

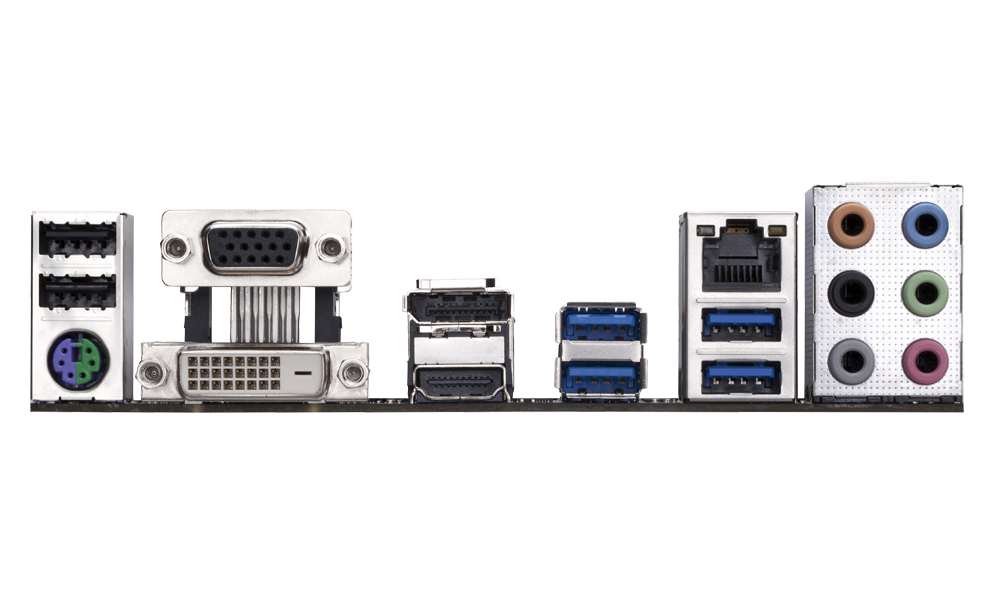

1 x D-Sub port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 network port
6 x audio jacks (Center/Subwoofer Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
BIOS features
Manageability
Uses licensed AMI UEFI BIOS
Supports DualBIOS™
Supports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
