Product information

Motherboard – Socket 1155 | ATX | Intel B75 Chipset | 4x DDR3 up to 32GB | Gigabit Ethernet | USB 2.0  | USB 3.0 | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | Sata-300 | Sata-600 |DVI-D | VGA


Product: Gigabyte GA-B75-D3V Socket 1155;
Category: Intel socket 1155 Motherboards;
Brand: Gigabyte
EAN: 3609740146121, 4719331806187
SKU: GA-B75-D3V
Condition: Used
Warranty:
6 Months


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)


Chipset
Intel® B75 Express Chipset


Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.


Onboard Graphics
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.


Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1 channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out


LAN
1 x Atheros GbE LAN chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(The PCIEX4 slot and all PCI Express x1 slots conforming to PCI Express 2.0 standard.)
2 x PCI slots


Storage Interface
1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
4 x SATA 3Gb/s connectors (SATA2 1~4) supporting up to 4 SATA 3Gb/s devices
1 x mSATA connector


USB
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x SATA 6Gb/s connector
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x Front Panel Audio Header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header

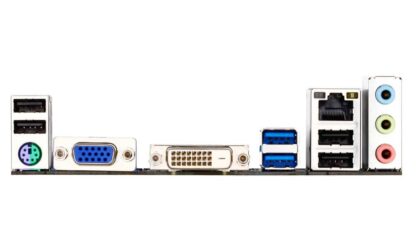

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)


H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.


BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




Form Factor
Micro ATX Form Factor; 30.5cm x 21.5cm

Specification

Weight 1 kg
Intel

LGA1155

Brand

Gigabyte

Chipset

Intel B75

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), PS/2, USB 2.0, USB 3.0

Storage Interfaces

mSATA, Serial ATA-300, Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x1, PCI-e 2.0 x16

Socket

Model

GA-B75-D3V

Length

30.5 cm

Width

21.5 cm

package content

Motherboard and Backplate (Blende)

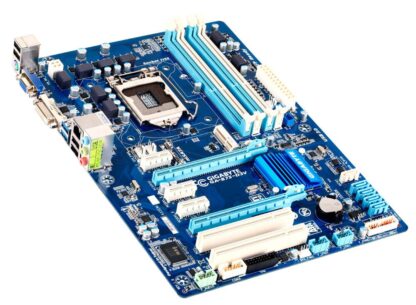

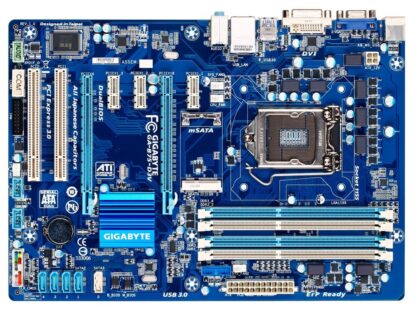

Gigabyte GA-B75-D3V LGA1155 Motherboard

Fast delivery

  • Entirely redesigned Ultra Durable 4 classic
  • Supports 3rd Generation Intel® 22nm CPUs and 2nd Generation Intel® Core™ CPUs (LGA1155 socket)
  • Dual UEFI BIOS protection with 3TB+ HDD boot capability
  • PCI Express Gen 3.0 support
  • Built-in mSATA slot for mSATA SSDs
  • Leading all-Japanese solid capacitor design
  • GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
  • 2-way CrossFireX™ multi-GPU support
  • DVI interface for smoother HD video playback
  • GIGABYTE On/Off Charge™ for USB Devices
