Product information

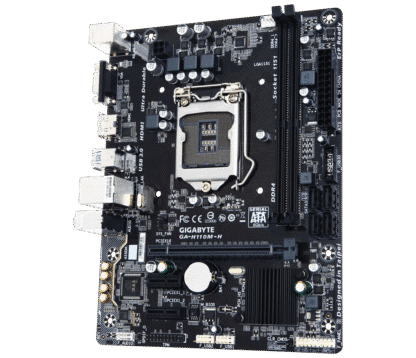

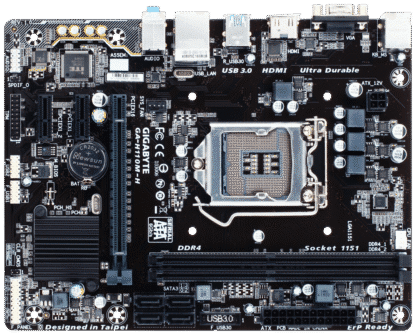

The Gigabyte GA-H110M-H is an M-ATX LGA1151 motherboard based on the Intel H110 chipset. The board must be combined with DDR4 memory, for which 2 slots are available. In total, the Gigabyte GA-H110M-H has 4 Serial ATA connections for hard disks and SSDs. The onboard sound card offers 7.1 channel sound and is based on a Realtek ALC887 chip.

Features: Motherboard | M-ATX | LGA1151 | 2x DDR4 | 4x SATA 600 | 2x PCI-e 2.0 x1 | PCI-e 2.0 x16 | 6x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | HDMI | VGA (D Sub)

Click here</a > for the supporting CPUs
Click here< /a> for the drivers

Product: Gigabyte GA-H110M-H
Connection: LGA1151
Supports: 6th en 7th Generation Processors
Category: motherboards
Brand: Gigabyte
EAN: 4719331847210
State: Refurbished – BIOS updated to the latest version
SKU: GA-H110M-H
Warranty:
6 months

package content:
– Motherboard (GA-H110M-H)
– Backplate (blende)
– No manual
– No drivers CD
– cables


CPU
– Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
– L3 cache varies with CPU


Chipset
– Intel H110


Memory
– 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
– Dual channel memory architecture
– Support for DDR4 2400/2133 MHz memory modules
– Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
– Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules


BIOS
– 1 x 64 Mbit flash
– Use of licensed AMI UEFI BIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Graphics
– Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz
* Support for HDMI 1.4 version.
– Maximum shared memory of 1024 MB


Audio
– Realtek® Audio CODEC
– High Definition Audio
– 2/4/5.1/7.1 channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
– Support for S/PDIF Out


LAN
– Realtek® GbE LAN chip (1 Gbit/100 Mbit)


Slots
– 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
– 2 x PCI Express x1 slots
(All of the PCI Express x1 slots conforming to PCI Express 2.0 standard.)


Connector
– 1x 24-pin ATX main power connector
– 1x 4-pin ATX 12V power connector
– 4x SATA 6Gb/s connectors
– 1x CPU fan header
– 1x system fan header
– 1x front panel header
– 1x front panel audio header
– 1x S/PDIF Out header
– 1x USB 3.0/2.0 header
– 2x USB 2.0/1.1 headers
– 1x Trusted Platform Module (TPM) header
– 1x Clear CMOS jumper

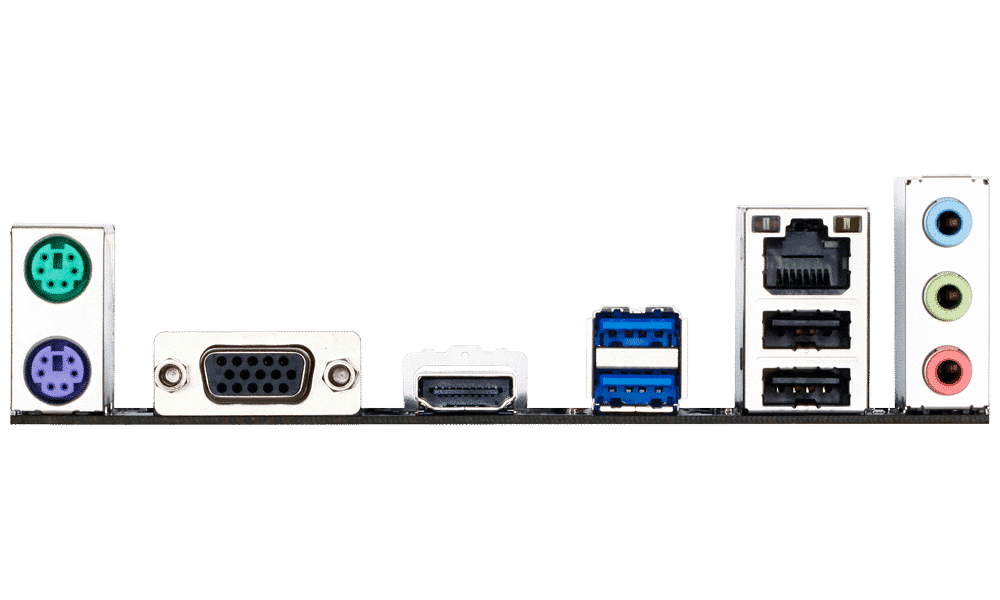

Rear Panel I/O
I/O Panel
– 1x PS/2 mouse port
– 1x PS/2 Keyboard port
– 1x D-Sub port
– 1x HDMI port
– 2x USB 3.0/2.0 ports
– 2x USB 2.0/1.1 ports
– 1x RJ-45 port
– 3x audio jacks (Line In, Line Out, Mic In)


Unique Feature
– Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boat
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
– Support for Q-Flash
– Support for Smart Switch
– Support for Xpress Install




Accessories
– I/O Shield


Hardware Monitor
– System voltage detection
– CPU/System temperature detection
– CPU/System fan speed detection
– CPU/System overheating warning
– CPU/System fan fail warning
– CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.


Form Factor
– Micro ATX Form Factor; 22.6cm x 17.4cm


OS
– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Specification

Intel

Socket 1151

Brand

Gigabyte

Chipset

Intel H110

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

2

Maximum memory size

32 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Gigabyte GA-H110M-H

Fast delivery

Product: Gigabyte GA-H110MH
Connection: Socket 1151
Category: motherboards
Brand: Gigabyte
EAN:
4719331847210
Condition:
Refurbished – BIOS updated to the latest version
SKU:
GA-H110M-H
Warranty:
6 months


SKU: GA-H110M-H Categories: , , Tags: , ,
