Description

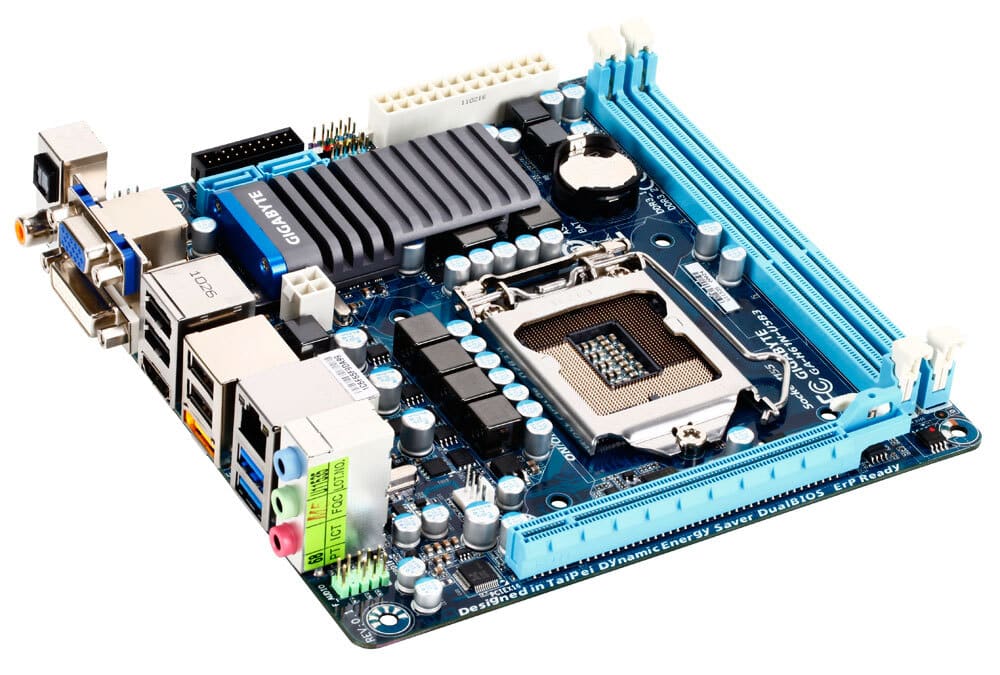

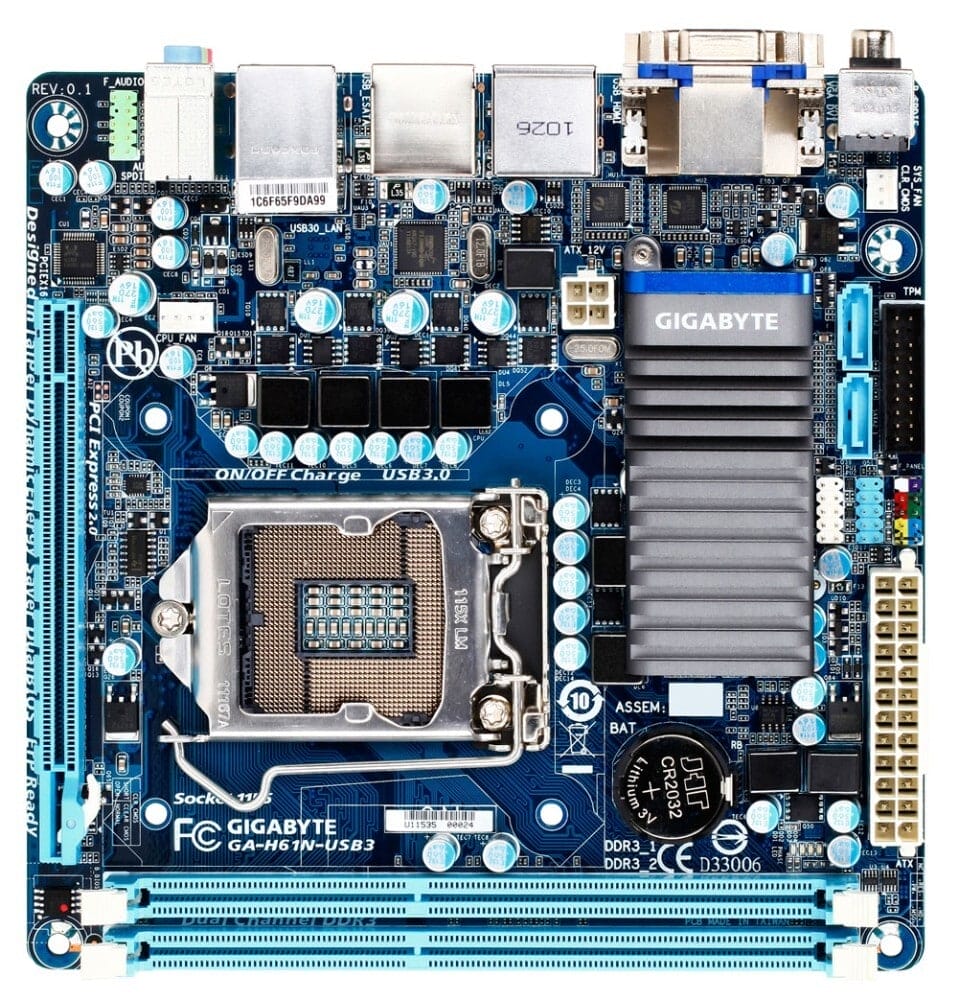

The Gigabyte GA-H61N-USB3 is a compact and powerful Mini-ITX motherboard solution, ideal for small but versatile systems. This motherboard supports Intel LGA 1155 processors and offers extensive
connectivity options such as USB 3.0, SATA 6Gb/s, and HDMI output for crystal-clear display. In addition, the GA-H61N-USB3 features Gigabit LAN, multiple audio connections, and DDR3 memory support, making it an excellent choice for both home use and compact business applications. Thanks to Gigabyte’s integrated technologies, this motherboard delivers reliable performance and stable operation, even under heavy use.
Product Information
– Product: Gigabyte GA-H61N-USB3
– Socket: LGA1155 (compatible with 2nd and 3rd Gen processors)
– Category: Motherboards
– Brand: Gigabyte
– Condition: Used
– EAN: 4719331828233
– SKU: GA-H61N-USB3
– Warranty: 6 months
Package Contents
– Motherboard (Gigabyte GA-B75N)
– IO Shield (backplate)
– No manual
– No driver CD
– No cables
Specifications
CPU
– Supports Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors (LGA1155)
– L3 cache depends on CPU
Chipset
– Intel® H61 Express Chipset
Memory
– 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB system memory
– Dual channel memory architecture
– Supports DDR3 1333/1066/800 MHz modules
– Supports non-ECC memory modules
– Note: 32-bit Windows OS will display less than 4 GB of installed memory.
Expansion Slots
– 1 x PCI Express x16 slot, running at x16 (compliant with PCI Express 2.0 standard)
Graphics
– 1 x DVI-I port, max resolution 1920×1200
– 1 x HDMI port, max resolution 1920×1200
Audio
– Realtek ALC889 codec
– High Definition Audio
– 2/4/5.1/7.1 channels
– Supports S/PDIF output
LAN
– Realtek RTL8111E chip (10/100/1000 Mbps)
Storage
– 2 x SATA 3Gb/s connectors (up to 2 devices)
– 1 x eSATA 3Gb/s connector on back panel (up to 1 device)

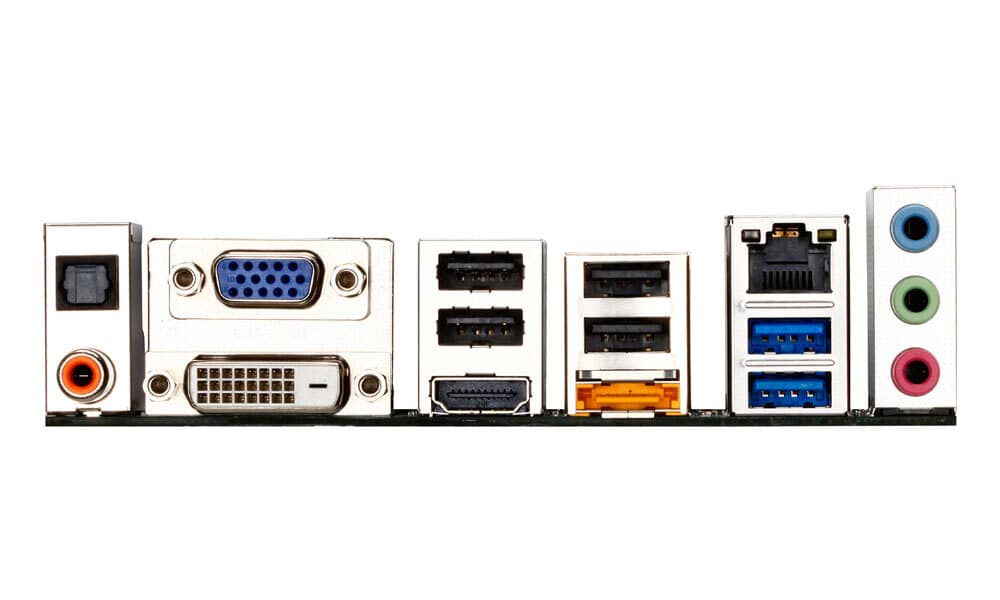

Rear I/O
– 1 x optical S/PDIF Out
– 1 x coaxial S/PDIF Out
– 1 x D-Sub port
– 1 x DVI-D port
– 1 x HDMI port
– 4 x USB 2.0/1.1 ports
– 2 x USB 3.0/2.0 ports
– 1 x eSATA 3Gb/s connector
– 1 x RJ-45 port
– 3 x audio jacks (Line In / Line Out / Microphone)
USB
– Up to 8 x USB 2.0/1.1 ports (4 rear, 4 internal)
– Up to 2 x USB 3.0/2.0 ports (rear)
Connectors
– 1 x 24-pin ATX main power connector
– 1 x 4-pin ATX 12V power connector
– 2 x SATA 3Gb/s connectors
– 1 x CPU fan header
– 1 x system fan header
– 1 x front panel header
– 1 x front panel audio header
– 1 x S/PDIF Out header
– 2 x USB 2.0/1.1 headers
– 1 x TPM header
– 1 x Clear CMOS jumper
BIOS Features
– 2 x 32 Mbit flash
– Licensed AWARD BIOS
– DualBIOS™ support
– PnP 1.0a, DMI 2.0, SMBIOS 2.4, ACPI 1.0b
Hardware Monitoring
– System voltage detection
– CPU/System temperature detection
– CPU/System fan speed detection
– CPU fan speed control (depending on cooler)
Form Factor
– Mini-ITX; 17.0 cm x 17.0 cm
Certifications
– FCC, CE, WHQL
– ErP/EuP Ready (requires compatible PSU)
