Product information

Motherboard – LGA1155 | ATX | Intel H67 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet USB 2.0 | USB 3.2 Gen 1 | FireWire | PCI | PCI-e 2.0 x1 | PCI-e 2.0 x16 | Sata 3.0 |HDMI | DVI-D | VGA

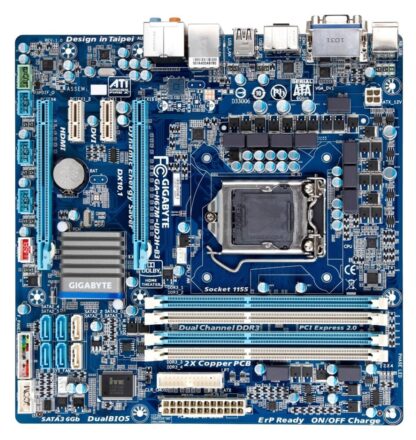

Product: Gigabyte GA-H67M-UD2H-B3 Socket 1155;
Category: Intel socket 1155 Motherboards;
Brand: Gigabyte
EAN: 4719331807245
SKU: GA-H67M-UD2H-B3
Condition: Used
Warranty:
6 Months

Extended product specifications:


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)


Chipset
Intel® H67 Express Chipset


Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 1333/1066/800MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)


Onboard Graphics
Integrated Graphics Processor:
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920×1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920×1200


Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1 channel
Support for Dolby® Home Theater
Support for S/PDIF Out


LAN
1 x Realtek RTL8111E chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(All PCI Express slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
Support for ATI CrossFireX™ ​​technology
* The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ ​​is enabled.


Storage Interface
chipset:
2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.


USB
chipset:
Up to 14 USB 2.0/1.1 ports (6 on the back panel, 8 via the USB brackets connected to the internal USB headers)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x Front Panel Audio Header
1 x S/PDIF Out header
4 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x Clearing CMOS Jumper

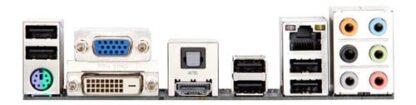

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x optical S/PDIF Out connector
1 x HDMI port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8728 chip


H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.


BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Dynamic Energy Saver™ 2
Support for Smart 6™
Support for Auto Green
Support for eXtreme Hard Drive (X.H.D)
Support for ON/OFF Charge
Support for Cloud OC
Support for Q-Share


Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm

Specification

Weight1 kg
Intel

LGA1155

Brand

Gigabyte

Chipset

Intel H67

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

PCI-e 2.0 x1, PCI-e 2.0 x16, PCI-e 2.0 x4

Socket

Model

GA-H67M-UD2H-B3

Length

24.4 cm

Width

24.4 cm

package content

Motherboard and Backplate (Blende)

Gigabyte GA-H67M-UD2H-B3 LGA 1155 motherboard

Fast delivery

  • Supports the newest LGA1155 2nd Generation Intel® Core™ processors
  • Ultra Durable 3 classic Technology with copper cooled quality for lower working temperature
  • GIGABYTE 3x USB Power with On/Off Charge USB ports
  • High speed SATA3 storage interface with superfast 6Gbps link speed
  • CrossFireX support for ultimate graphics performance
  • HDMI/ DVI interface for smoother HD video playback
  • XHD technology accelerating hard drive performance with ease
  • Innovative Smart 6 technology for smarter PC management
  • Patented DualBIOS™ technology delivering highest level failure protection

SKU: GA-H67M-UD2H-B3 Categories: , , Tags: , ,

Pros and cons
According to our computer expert

  • 4 DDR3 Geheugensloten
