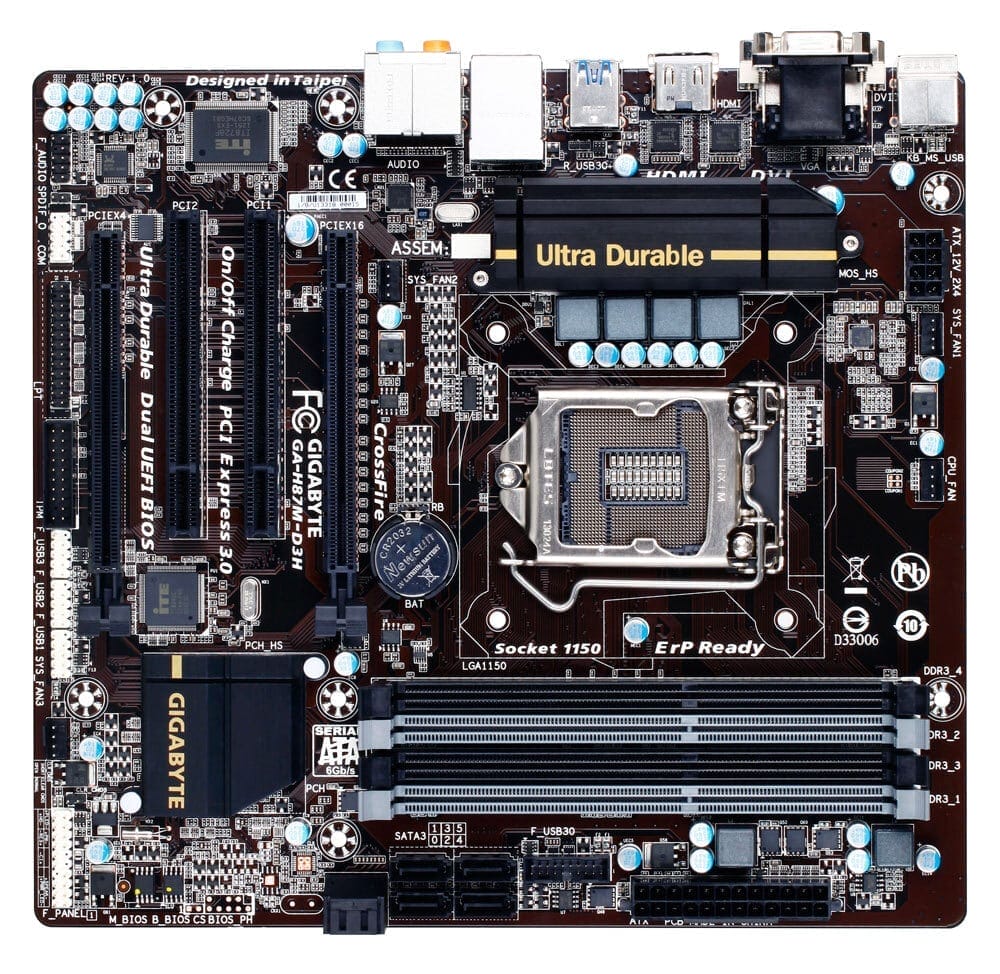

Gigabyte GA-H87M-D3H LGA1150 motherboard

Brand: Gigabyte
Model:GA-H87M-D3H
Socket: LGA1150
Chipset: Intel H87
Memory: 4x DDR3 (32GB Max)
Form Factor: Micro ATX
EAN: 4719331816384

Out of stock

Vergelijk
SKU: GA-H87M-D3H Categories: , , Tags: , ,

Description

The Gigabyte GA-H87M-D3H motherboard is a Micro-ATX motherboard with space for 4 DDR3 memory modules, with a maximum of 32GB. The GA-H87M-D3H motherboard features 2x PCI, 2x PCI-e 2.0 x1, PCI-e 2.0 x16 and one PCI-e 3.0 x16 slots.

Specifications:
 motherboard | Micro ATX | LGA1150 | Intel H87 chipset | PCI | PCI-e 2.0 x16 | PCI-e 3.0 x16 | 8x USB 2.0 | 6x USB 3.2 (Gen1, 5Gb/s) | DVI-D | HDMI | VGA (D Sub)

Product: GA-H87M-D3H
Socket:
1150
Category: Motherboards
Brand: Gigabyte
Condition: Used – BIOS updated to the latest version
EAN: 0818313017161, 4719331816384
SKU:
GA-H87M-D3H, H87M-D3H
Warranty: 6 months

Drivers for the Asus GA-H87M-D3H
Processors that are supported by the GA-H87M-D3H

Note: This is a refurbished motherboard updated with the latest BIOS version, the product warranty period is 6 months.

package content:
– Motherboard (GA-H87M-D3H)
– Backplate (Blende)
– No manual
– No driver CD
– No cables


CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)


Chipset
Intel® H87 Express Chipset


Memory
4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)


Onboard Graphics
Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096×2160@24Hz or 2560×1600@60Hz
* Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
Maximum shared memory or 1GB


Audio
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1 channel
Support for S/PDIF In
Support for S/PDIF Out


LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)


Expansion Slots
– 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
– 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 2.0 standard.)
– 2 x PCI slots


Multi-Graphics Technology
– Support for AMD CrossFire™ technology


Chip set:
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10


USB Chipset:
6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors

1x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x Front Panel Audio Header
1 x S/PDIF Out header
1 x S/PDIF In header
1 x USB 3.0/2.0 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Trusted Platform Module (TPM) header


Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)


I/O Controller
iTE® I/O Controller Chip


H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System Overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.


BIOS
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features
– Support for Q-Flash
– Support for Xpress Install
– Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
– Support for ON/OFF Charge


Operating System
Support for Windows 10/8.1/8/7


Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm

Additional information

Weight 1 kg
Intel

LGA1150

Brand

Gigabyte

Chipset

Intel H87

Form Factor

Micro-ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

D-Sub (VGA), DVI-D, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-600

Interfaces

PCI, PCI-e 2.0 x16, PCI-e 3.0 x16

Socket
