Description

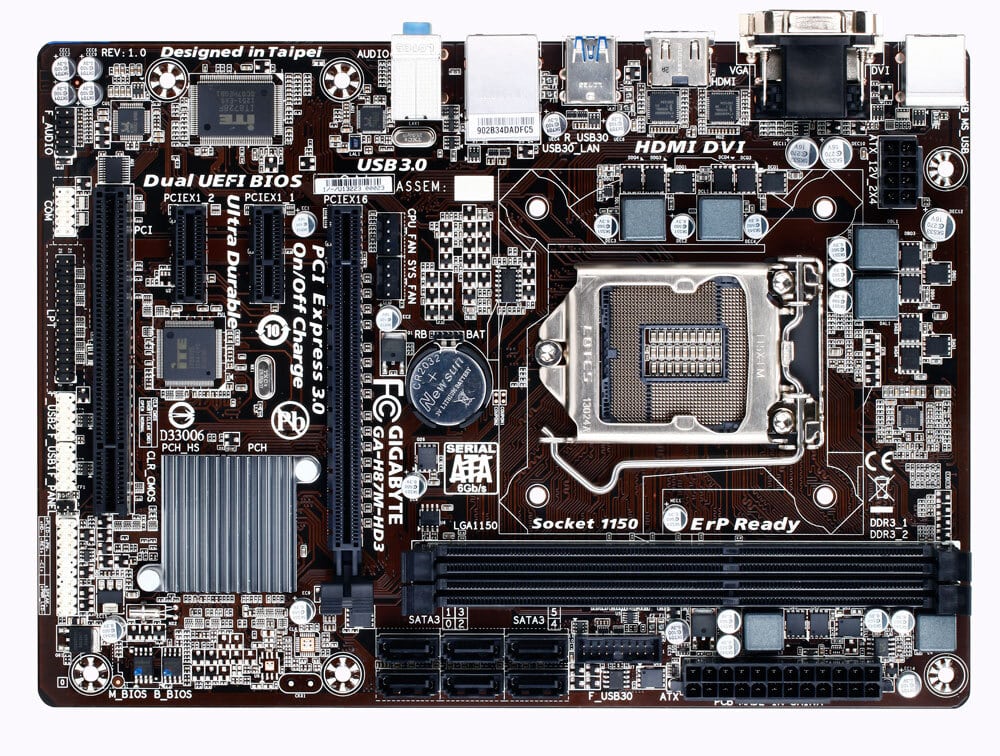

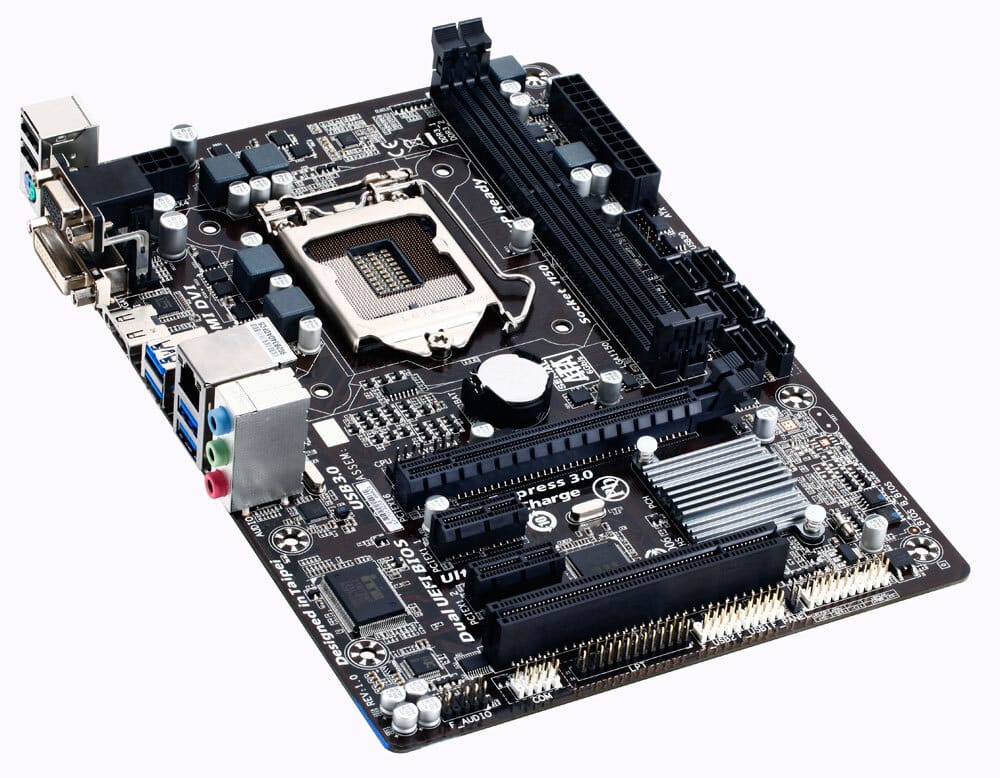

The Gigabyte GA-H87M-HD3 is a reliable and powerful micro-ATX motherboard solution for users looking for a stable system with extensive connectivity options. This motherboard supports Intel processors on socket 1150 and offers modern connections such as HDMI, DVI-D, and VGA for various display types. It also features multiple USB 3.0 and USB 2.0 ports, allowing peripherals to be easily connected. For storage, there are sufficient SATA 6Gb/s ports available—ideal for fast SSDs and hard drives. With support for DDR3 memory and a Gigabit LAN connection, this motherboard delivers solid performance for everyday use and light multimedia applications.
Product: Gigabyte GA-H87M-HD3
Socket: Socket 1150
Category: Motherboards
Brand: Gigabyte
Condition: Used
EAN: 0163121159535, 0818313017178, 4719331816445, 8183130171788
SKU: GA-H87M-HD3
Warranty: 6 months
Package contents:
– Motherboard (Gigabyte GA-H87M-HD3)
– I/O shield (metal backplate)
– No manual
– No driver CD
– No cables
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel® H87 Express Chipset
Geheugen
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Grafisch
Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Maximum shared memory of 1 GB
Uitbreidingssleuven
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
1 x PCI slot
Opslag
6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Netwerk
Realtek® GbE LAN chip (10/100/1000 Mbit)
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
USB-poorten
Up to 6 USB 3.0/2.0 ports (4 ports on the back panels, 2 ports available through the internal USB header)
Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Ondersteunde besturingssystemen
Windows® 8
Windows® 7

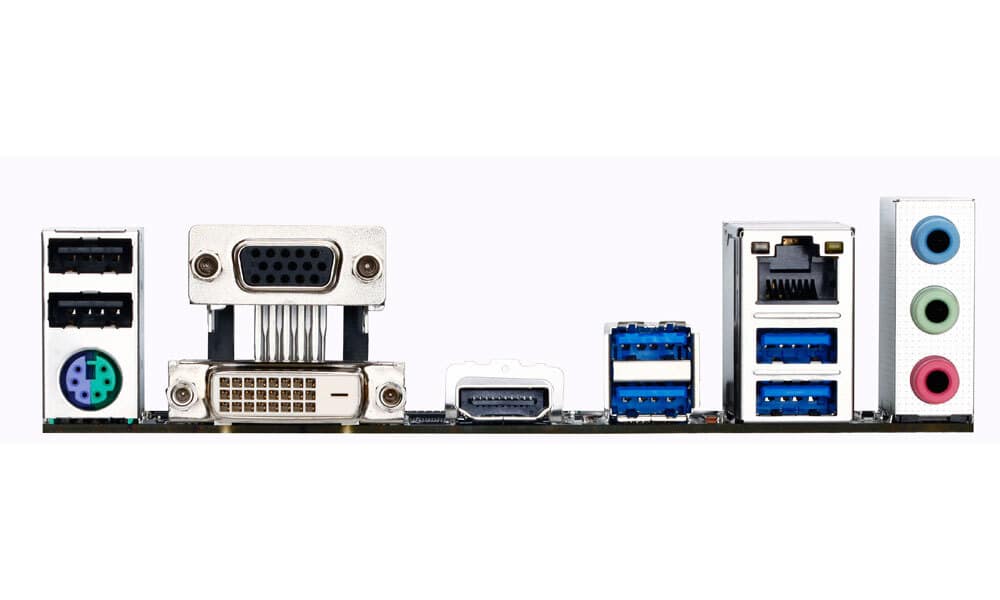

Achterste I/O-poorten
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
Interne I/O-poorten
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Accessoires
I/O-shield
BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
uATX Form Factor
(24.4cm x 17.4cm)
