Product information

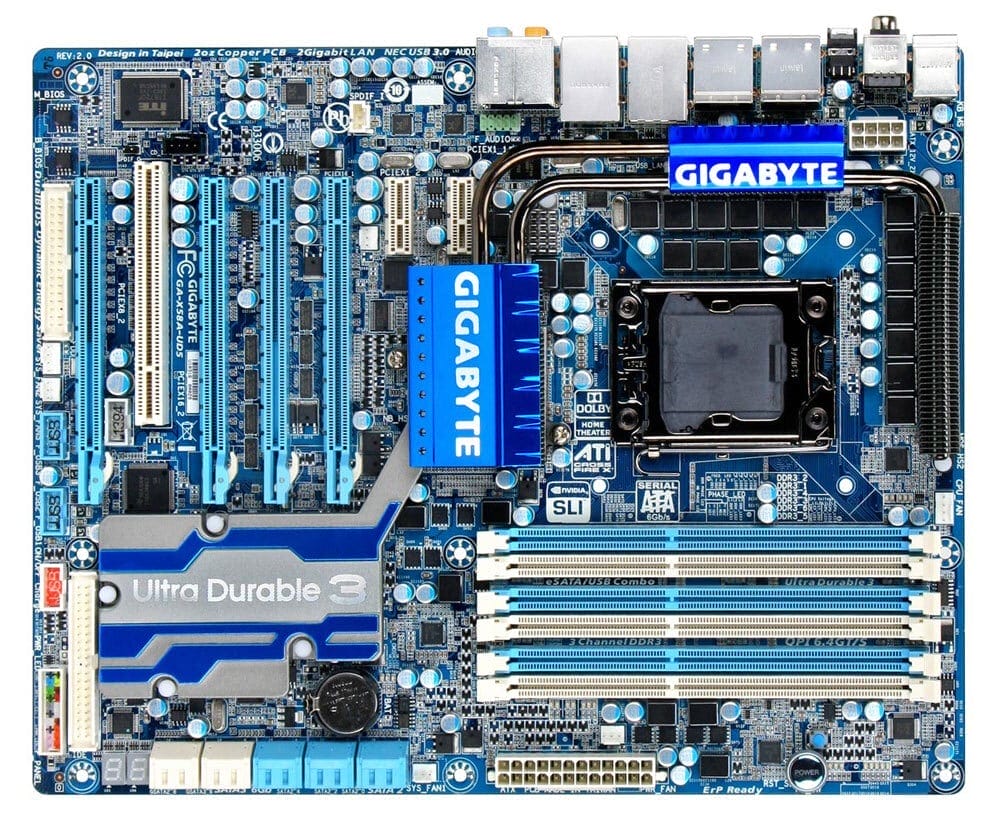

The Gigabyte GA-X58A-UD5 Rev. B Socket 1366 motherboard is an ATX motherboard which is equipped with 4 DDR3 memory slots. The Gigabyte GA-X58A-UD5 Rev. B motherboard is an LGA1366 motherboard which is equipped with a network (RJ-45) connection, IEEE1394, eSATA and no less than 6 DDR3 memory slots

Short Specifications:

Motherboard – LGA1366 | ATX | Intel X58 Chipset | 6 x DDR3 up to 24GB | 1x Gigabit Ethernet | PCI | 2x PCI-e 2.0 | 2x PCI-e x8 | 2x PCI-e x16 | PCI-e x4 | 2x eSATA | 3x Firewire 400 (6-pin) | 10x USB 2.0 | 2x USB 3.2 (Gen1, 5Gb/s) | PATA-133 | 6x SATA-300 | 2x SATA 600

Processors which are supported by the Gigabyte GA-X58A-UD5 Rev. B
Drivers for the Gigabyte GA-X58A-UD5 Rev. B

Product: Gigabyte GA-X58A-UD5 Rev. b;
Category: Intel LGA1366 Motherboards;
Brand: Gigabyte;
EAN: 4719331850227
SKU: GA-X58A-UD5
Condition: Used – Bios updated to the latest version
Warranty: 3 Months

package content:
– Motherboard (Gigabyte GA-X58A-UD5 Rev. B)
– Backplate (blende)
– no manual
– no driver CD
– no cables

Extended product specifications:

CPU

– Support for an Intel® Core™ i7 series processor in the LGA1366 package
(Go to GIGABYTE’s website for the latest CPU support list.)
– L3 cache varies with CPU

Chipset

– North Bridge: Intel® X58 Express Chipset
– South Bridge: Intel® ICH10R

Memory

– 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
– Dual/3 channel memory architecture
– Support for DDR3 2200/1333/1066/800MHz memory modules
– Support for non-ECC memory modules
– Support for Extreme Memory Profile (XMP) memory modules

Audio

– Realtek ALC889 codec
– High Definition Audio
– 2/4/5.1/7.1 channel
– Support for Dolby® Home Theater
– Support for S/PDIF In/Out
– Support for CD In

LAN

– 2 x RTL8111E chip (10/100/1000 Mbit)
– Support for Teaming
– Support Smart Dual LAN

IEEE 1394

– T.I. TSB43AB23 chip
– Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Slots

– 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
– 2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conforming to PCI Express 2.0 standard.)
– 2 x PCI Express x1 slots
– 1 x PCI slot

Storage

GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD

JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD

iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Integrated into the South Bridge
Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
Up to 2 USB 3.0/2.0 ports on the back panel

Connector

– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 1 x floppy disk drive connector
– 1 x IDE connector
– 8 x SATA 3Gb/s connectors
– 2 x SATA 6Gb/s connectors
– 1 x CPU fan header
– x system fan headers
– 1 x power fan header
– 1 x North Bridge fan header
– 1 x front panel header
– 1 x front panel audio header
– 1 x CD In connector
– 1 x S/PDIF In header
– 1 x S/PDIF Out header
– x USB 2.0/1.1 headers
– 1 x IEEE 1394a header
– 1 x power button
– 1 x reset button

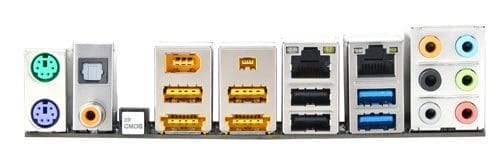

Rear Panel I/O
I/O Panel

– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 1 x coaxial S/PDIF Out connector
– 1 x optical S/PDIF Out connector
– 1 x clearing CMOS button
– 2 x IEEE 1394a ports
– 4 x USB 2.0/1.1 ports
– 2 x USB 3.0 ports
– 2 x eSATA/USB Combo connectors
– 2 x RJ-45 port
– 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Accessories

– I/O Shield

Form Factor

– ATX Form Factor
– 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
