Product information

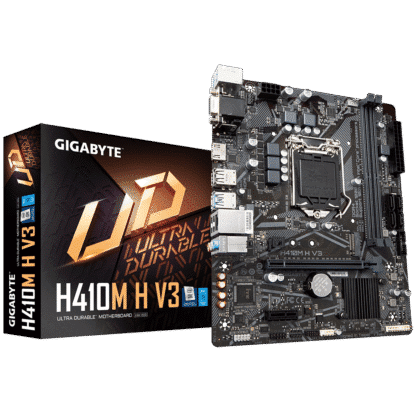

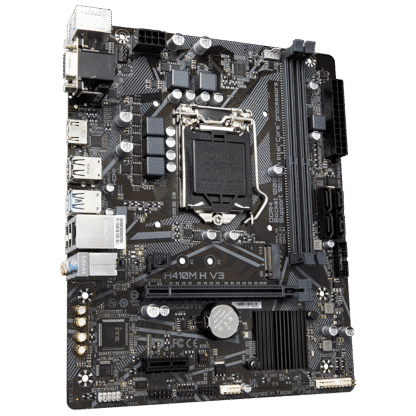

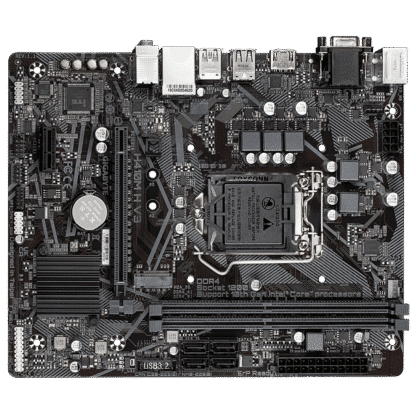

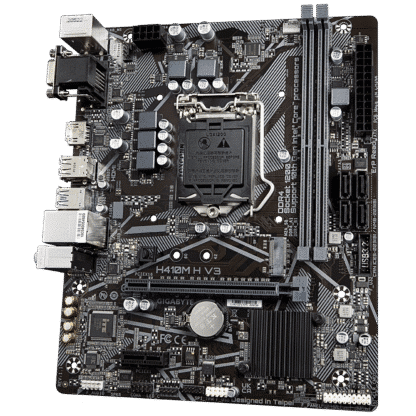

Gigabyte H410M H V3 R1.1: motherboard |Micro-ATX | Intel LGA1200 | H410 Chipset | 2x DDR4 (max. 64GB) | PCI-e 3.0 x1 | PCI-e 3.0 x16 | M.2 (PCI-e 3.0 x4 + SATA) | SATA 600 | USB 2.0 | USB 3.2 (Gen1, 5Gb/s) | HDMI | VGA (D Sub)


Product:Gigabyte H410M H V3 R1.1
Socket:
LGA1200
Brand: Gigabyte
Condition: New Retail
EAN: 4719331823542
SKU:
H410M H V3
Warranty: 6 months


package content:
– Motherboard (H410M H V1.1)
– Backplate (blende)
– instruction manual
– driver CD
– cables


CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package
L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)


Chipset
Intel® H510 Express Chipset


Memory
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)


Onboard Graphics
Integrated Graphics Processor – Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory or 512 MB
(Graphics specifications may vary depending on CPU support.)


Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1 channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.


LAN
Gigabit Ethernet Chip (1Gbps/100Mbps)


Expansion Slots
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.


Storage Interface
Chip set:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors


USB
Chip set:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)


Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x Front Panel Audio Header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

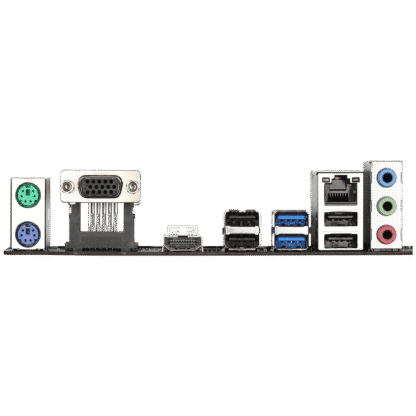

Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip


H/W Monitoring
voltage detection
temperature detection
Fan speed detection
Overheating warning
Fan fail warning
fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.


BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boat
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install


Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility


Operating System
Support for Windows 10 64-bit


Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm

Specification

Socket

Brand

Gigabyte

Chipset

Intel H510

Form Factor

Micro-ATX

Memory Type

DDR4 SDRAM

Number of memory slots

2

Maximum memory size

64 GB

Connectors

D-Sub (VGA), Ethernet (RJ-45), HDMI, USB 2.0, USB 3.0

Storage Interfaces

M.2 (PCI-e 3.0 x4 + SATA), Serial ATA-600

Interfaces

PCI-e 3.0 x1, PCI-e 3.0 x16

Intel

Socket 1200

Gigabyte H410M H V3 R1.1

Fast delivery

  • Supports 10th Gen Intel®Core™ processors
  • Dual Channel non-ECC unbuffered DDR4, 2 DIMMs
  • 8-channel HD audio with high-quality audio capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 connector
  • Intel® GbE LAN with cFosSpeed Internet Accelerator software
  • Smart Fan 5 features multiple temperature sensors and hybrid fan heads with FAN STOP
  • GIGABYTE APP Center, simple and easy to use
  • Design of anti-sulfur resistors
