Gigabyte H55M-D2H LGA1156 Motherboard

Fast delivery
54,95

Brand: Gigabyte
Model: H55M-D2H
Socket: LGA1156
Chipset: Intel H55
Memory: 2x DDR3 (8GB Max)
Form-Factor: Micro-ATX
EAN: 4719331819156
SKU: GA-H55M-D2H

Out of stock

SKU: GA-H55M-D2H Categories: , Tags: , ,

Product information

Features: H55M-D2H – Intel® Socket 1156, Intel® H55, 2 x DIMM DDR3, 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x4, 2 x PCI, DVI-D, HDMI, D -Sub, 6 xSATA 3.0 Gb / s, Gigabit LAN.

Click here For the supporting CPUs
Click here for the drivers

Product: Gigabyte GA-H55M-D2H
Category: Motherboards
Brand: Gigabyte
EAN: 4719331819156
SKU: GA-H55M-D2H

Note: This is a used motherboard updated with the latest BIOS version, the product warranty period is 90 days.

Package Contents:
– Motherboard
– Backplate (blende)
– No manual
– No driver CD
– No cables


CPU
Support for an Intel® Core ™ i7 series processor / Intel® Core ™ i5 series processor / Intel® Core ™ i3 series processor in the LGA1156 package (Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU


Chipset
Intel® H55 Express Chipset


Memory
2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 2200 + / 1800/1600/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7 / Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5 / Core i3 / Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Go to GIGABYTE’s website for the latest memory support list.


Onboard Graphics
Integrated in the Chipset:
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port (Note 2) (Note 4)


Audio
Realtek ALC888B / 892 codec
High Definition Audio
2/4 / 5.1 / 7.1-channel
Support for S / PDIF In / Out
Support for CD In


LAN
1 x Realtek RTL8111D / 8111E chip (10/100/1000 Mbit)


Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
2 x PCI slots

Multi-Graphics Technology
Support for ATI CrossFireX ™ technology (Note 6)


Storage Interface
Chipset:
6 x SATA 3Gb / s connectors supporting up to 6 SATA 3Gb / s devices
JMicron JMB368 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive


USB
Chipset:
Integrated in the Chipset
Up to 12 USB 2.0 / 1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)


Internal I / O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb / s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S / PDIF In header
1 x S / PDIF Out header
2 x USB 2.0 / 1.1 headers
1 x serial port header
1 x clearing CMOS jumper

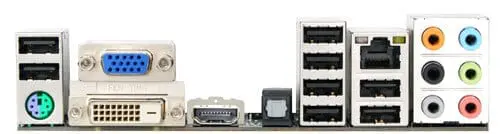

Back Panel Connectors
1 x PS / 2 keyboard or PS / 2 mouse port
1 x D-Sub port (Note 2)
1 x DVI-D port (Note 2) (Note 3) (Note 4)
1 x HDMI port (Note 2) (Note 4)
1 x optical S / PDIF Out connector
8 x USB 2.0 / 1.1 ports
1 x RJ-45 port
6 x audio jacks (Center / Subwoofer Speaker Out / Rear Speaker Out / Side Speaker Out / Line In / Line Out / Microphone)


I / O Controller
iTE IT8720 chip
H / W Monitoring
System voltage detection
CPU / System temperature detection
CPU / System / Power fan speed detection
CPU overheating warning
CPU / System / Power fan fail warning
CPU / System fan speed control (Note 7)


BIOS
2 x 64 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS ™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b


Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver ™ 2
Support for Smart 6 ™
Support for Auto Green
Support for ON / OFF Charge
Support for Q-Share


Operating System
Support for Microsoft® Windows 7 / Vista / XP


Form Factor
MicroATX Form Factor; 24.4cm x 21.0cm


Note
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D, HDMI, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX ™ is enabled.
(Note 7) Whether the CPU / system fan speed control function is supported will depend on the CPU / system cooler you install.
(Note 8) Available functions in EasyTune may differ by motherboard model.

Specification

Weight1 kg
Intel

LGA1156

Brand

Gigabyte

Chipset

Intel H55

Form Factor

Micro-ATX

Memory Type

DDR3

Number of memory slots

2

Maximum memory size

8 GB

Connectors

D-Sub (VGA), DVI-D, HDMI, USB

Storage Interfaces

Floppy Disk Connector, IDE ATA-133, Serial ATA-300

Interfaces

PCI, PCI-e x16

Socket

Intel LGA1156
