Product information

Intel DH61DL:  motherboard – LGA1155/ Sockel H2 – Mini-ITX – Intel H61 chipset – 2x DDR3 up to 16 GB – Gigabit Ethernet – USB 2.0 – DVI-D – VGA (D-Sub)

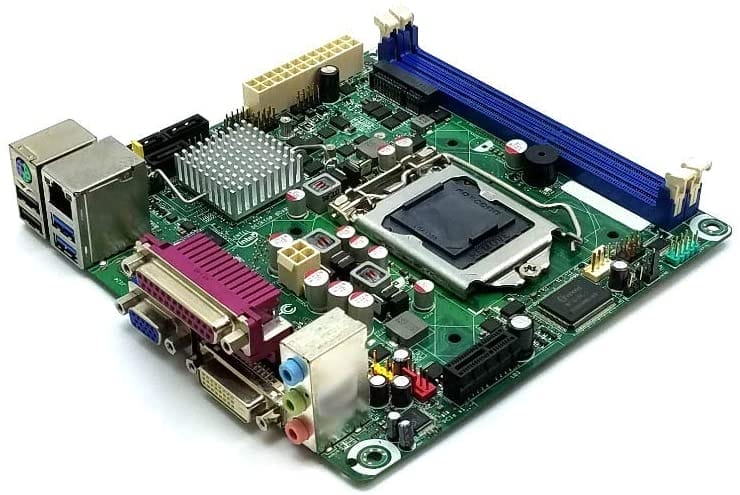

Product: Intel DH61DL LGA1155 motherboard
Category: Motherboards
Brand: Intel
EAN: 0675901104333, 0735858220941
SKU: DH61DLB3

Note: This is a refurbished motherboard which is updated with the latest BIOS version, the product warranty period is 6 months.

package content:
– Motherboard
– IO-Shield (blende)
– No manual
– No driver CD
– No cables

CPU
Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/

Chipset
Intel® H61(B3)

Memory
2xDIMM, Max. 16GB, DDR3 1066/133/MHz Non-ECC, Un-buffered Memory

Graphic
Integrated Graphics Processor
DVI-D, VGA (D-Sub)

Expansion Slots
1x mini PCI Express,
1x PCI-e x1

Storage
Intel® H61(B3) chipset :
3 x SATA 3Gb/s port(s), blue

LAN
Intel® 82579V, 10/100/1000 Mbit/sec

Audio
Audio (back channel + front channel) 5.1

USB Ports
Intel® H61(B3) chipset :
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

External I/O Ports
1x PS/2 ports
1x VGA (D-Sub)
1x DVI-D
1x Headphone
1x Parallel

Internal I/O Ports
3x USB 2.0 c
3x SATA II connectors
1x S/PDIF out connector
1x Front panel audio connector
1x ATX Power connector (24-pin)
1x Number of EATX power connectors
1x CPU fan connector
1x Chassis intrusion connector

Accessories
I/O Shield

BIOS
64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP ready
Manageability
WOL, PXE, PME Wake Up

Form Factor
uATX Form Factor
8.9 inches x 6.9 inches ( 22.6 cm x 17.5 cm )
