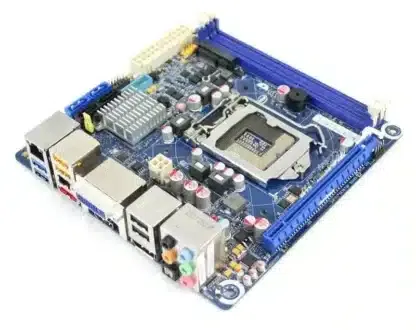

Intel DH77DF LGA1155 Motherboard

Merk: Intel
Model: DH77DF
Socket: Socket 1155
Chipset: Intel H77
Geheugen:
2x DDR3 (16GB Max)
Form-Factor: Mini-ITX
EAN:0675901131865, 0735858241861, 4037057036566, 5032037036566, 5032037036573
SKU:BOXDH77DF, DH77DF, G40293-XXX

Out of stock

Vergelijk
SKU: DH77DF Categories: , , Tags: , ,

Description

The Intel DH77DF motherboard is a Mini-ITX motherboard that is equipped with 4 DDR3 memory slots. The Intel  DH77DF Socket 1155 motherboard is a motherboard equipped with the Intel H77 Chipset.

Motherboard – Socket 1155 | Mini ITX | Intel H77 Chipset | 2 x DDR3 up to 16GB | PCI e x16 | Gigabit Ethernet | SATA-300 | SATA-600 | eSATA | USB 2.0 | USB 3.0 | DisplayPort | DVI-I | HDMI


Product: Intel DH77EB Socket 1155;
Category: Intel socket 1155 Motherboards;
Brand: Intel;
EAN: 0675901131865, 0735858241861, 4037057036566, 5032037036566, 5032037036573
SKU: BOXDH77DF, DH77DF, G40293-XXX
Condition: Used – Bios updated to the latest version
Warranty:
6 Months


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon in LGA1155 Package
– 4+2 Power Phase Design
-Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology


Chip set
-Intel® H77
-Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, unbuffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Meets Microsoft Vista Premium spec


LAN
–  Supports one PCI Express LAN 10/100/1000 Fast Ethernet


Slots

– 1 PCI Express 3.0 x16
– 1 PCI Express Mini Card connector with support for mSATA Solid-State Drive


SATA
– 2 SATA 6.0 Gb/s ports
– 2 SATA 3.0 Gb/s ports


Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front-panel connector
– 6 x USB 2.0 connectors
– 2x USB3.2 Gen 1
– 2 x Serial ATAII connectors
– 2 x Serial ATAIII connectors


Rear Panel I/O
I/O panel
– 1 x PS/2 Mouse/Keyboard port
– 4 x USB 2.0 ports
– 1x Display port
– 1xHDMI
– 1x DVI I
– 1 x eSata
– 1x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack


Accessories
– I/O Shield


Form Factor
– Mini-ITX Form Factor


OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32 bit / XP 64 bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Additional information

Weight 1 kg
Intel

LGA1155

Brand

Intel

Chipset

Intel H77

Form Factor

Mini-ITX

Memory Type

DDR3 SDRAM

Number of memory slots

2

Maximum memory size

16 GB

Connectors

Displayport, DVI-I, eSATA, Firewire 400 (6-pin), HDMI, USB 2.0, USB 3.0

Storage Interfaces

Serial ATA-300, Serial ATA-600

Interfaces

mini-PCI Express Slot, PCI-e 3.0 x16

Socket

Model

DH77DF

Suitable for

Regular use

particularities

Onboard Audio

Length

17 cm

Width

17 cm
