Product information

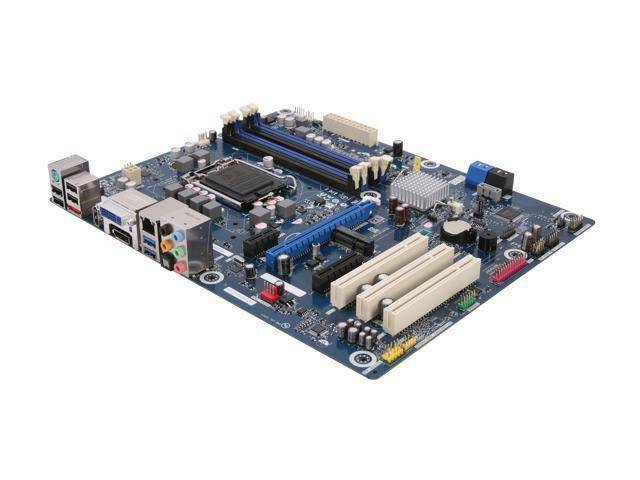

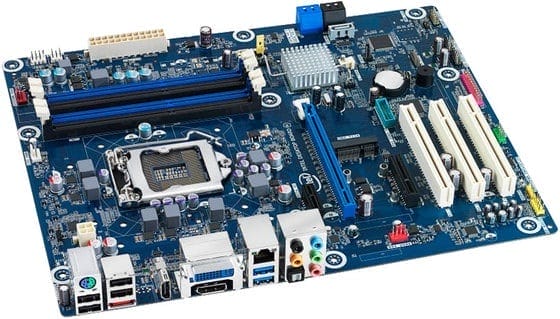

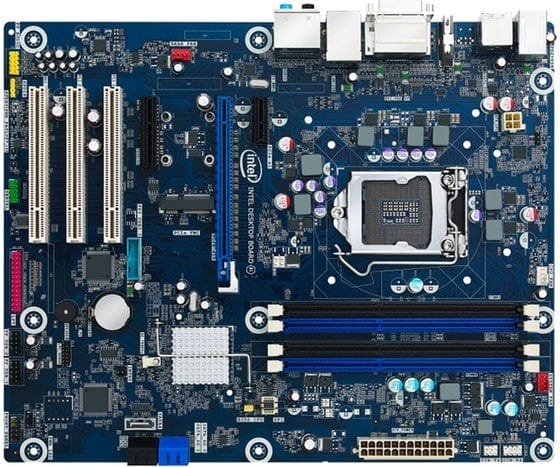

The Intel DH77KC motherboard is a Micro-ATX motherboard which is equipped with 4 DDR3 memory slots. The Intel  DH77KC LGA1155 motherboard is a motherboard equipped with the Intel H77 Chipset.

Short Specifications:

Motherboard – LGA1155 | ATX | Intel H77 Chipset | 4 x DDR3 up to 32GB | Gigabit Ethernet | mSATA | 3x SATA-300 | 2x SATA 600 | eSATA | mini PCI Express | 10x USB 2.0 | 4x USB 3.2 (Gen1, 5Gb/s) | DisplayPort | DVI-I | DVI-D |HDMI

Product: Intel DH77KC LGA1155;
Category: Intel socket 1155 Motherboards;
Brand: Intel;
EAN: 0032037036559, 0230494840442, 0675901131964, 0735858241854, 5032037036559
SKU: BLKDH77KC
Condition: Used
Warranty:
6 Months

Processors which are supported by the Intel DH77KC
Drivers for the Intel DH77KC

Extended product specifications:


CPU
– Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon in LGA1155 Package
– 4 + 2 Power Phase Design
– Supports Intel® Turbo Boost 2.0 Technology
– Supports Intel® K-Series CPU
– Supports Hyper-Threading Technology


Chipset
– Intel® H77
– Supports Intel® Small Business Advantage
– Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.


Memory
– Dual Channel DDR3 memory technology
– 4 x DDR3 DIMM slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells


BIOS
– The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
– The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Audio
Chipset integrated by Realtek® ALC892
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
– Measure Microsoft Vista Premium spec


LAN
– Supports one PCI Express LAN 10/100/1000 Fast Ethernet


Slots

– 1 PCI Express 3.0 x16
– 1x PCI Express 2.0 x1
– 1xPCI Express 2.0 x4
– 1 PCI Express Mini Card connector with support
for mSATA Solid-State Drive


SATA
– 2 SATA 6.0 Gb/s ports
– 3 SATA 3.0 Gb/s ports


Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 6 x USB 2.0 connectors
– 2x USB3.2 Gen 1
– 4 x Serial ATAII connectors
– 2 x Serial ATAIII connectors


Rear Panel I/O
I/O Panel
– 1 x PS/2 Mouse/Keyboard port
– 4 x USB 2.0 ports
– 2x USB 3.0 Ports
– 1x Display port
– 1x HDMI
– 1x DVI-I
– 1 x eSata
– 1 x Optical SPDIF port
– 1 x RJ45 LAN Jack
– 1 x 6 in 1 audio jack


Accessories
– I/O Shield


Form Factor
– ATX Form Factor


OS

– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32- bit / XP 64 bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Specification

Weight1 kg
Intel

LGA1155

Brand

Intel

Chipset

Intel H77

Form Factor

ATX

Memory Type

DDR3 SDRAM

Number of memory slots

4

Maximum memory size

32 GB

Connectors

Displayport, DVI-I, Ethernet (RJ-45), HDMI, USB 2.0, USB 3.2 (Gen1, 5Gb/s)

Storage Interfaces

mSATA, Serial ATA-300, Serial ATA-600

Interfaces

mini-PCI Express Slot, PCI-e 2.0 x1, PCI-e 3.0 x16

Socket

Intel DH77KC

Fast delivery

Brand: Intel
Model: DH77KC
Socket: Socket 1155
Chipset: Intel H77
Memory:
 4x DDR3 (32GB Max)
Form Factor: ATX
EAN:0032037036559, 0230494840442, 0675901131964, 0735858241854, 5032037036559
SKU: 7BLKDH77KC


SKU: DH77KC Categories: , , Tags: , , ,

Pros and cons
According to our computer expert

  • 4 DDR3 Geheugensloten
