Product information

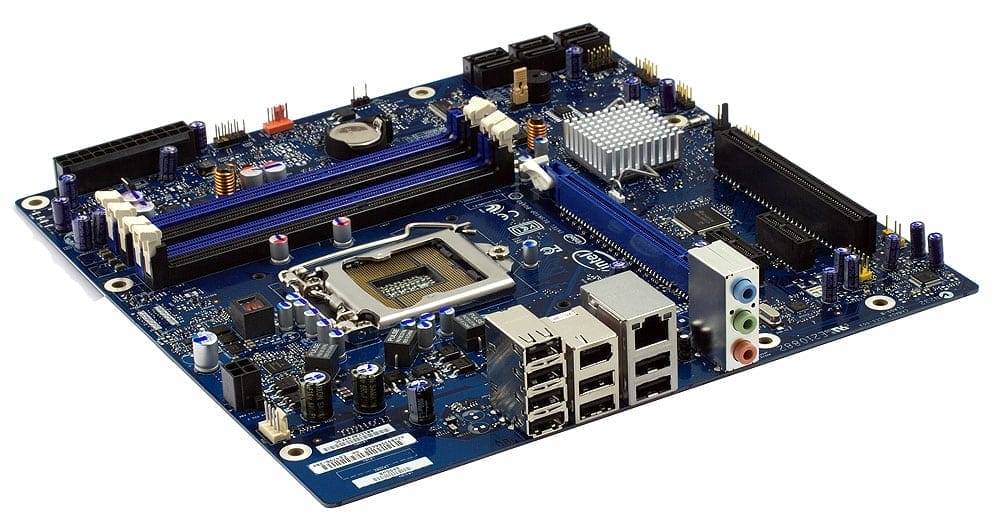

The Intel DP55WB is a Micro-ATX Socket 1156 motherboard based on the Intel P55 chipset. The board must be combined with DDR3 memory, for which 4 slots are available. In total, the Intel DP55WB 6 Serial ATA connections for hard drives and SSDs.

Features: Motherboard | Micro ATX | LGA1156 | 4x DDR3 | SATA-300 | PCI-e x16| PCI-e x1 |PCI | USB 2.0 | firewire

Product:Intel DP55WB
Socket: LGA1156
Category: motherboards
Brand: Asus
Condition: Used – BIOS updated to the latest version
EAN: 0675901006514, 0735858209144
SKU: BLKDP55WB, BOXDP55WB, DP55WB
Warranty: 6 months

Package contents:
– Motherboard (Intel DP55WB)
– Backplate (Blende)
– No manual
– No drivers CD
– No cables

CPU
Intel® Socket 1156 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Chipset
Intel® P55

Memory
4xDIMM, Max. 16GB, DDR3 1600/1333/1066MHz Non-ECC, Un-buffered Memory

Expansion Slots
1 x PCIe x16
2 x PCIe x1
1x PCI

Storage
Intel® P55 chipset :
6 x SATA 3Gb/s port(s)

LAN
Intel 82578DC

Audio
– Analog (3.5mm), Digital Optical (S/PDIF)

USB Ports
Intel® P55 chipset :
14x USB 2.0 port(s) (8 at back panel, black, 6 at mid-board)

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
1 x eSata
8 x USB 2.0
2x IEEE 1394/Firewire ports

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (1 x 4-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
1x IEEE1394 connectors

Accessories
I/O Shield

Form Factor
Micro-ATX Form Factor
24.4cm x 24.4cm
