Product information

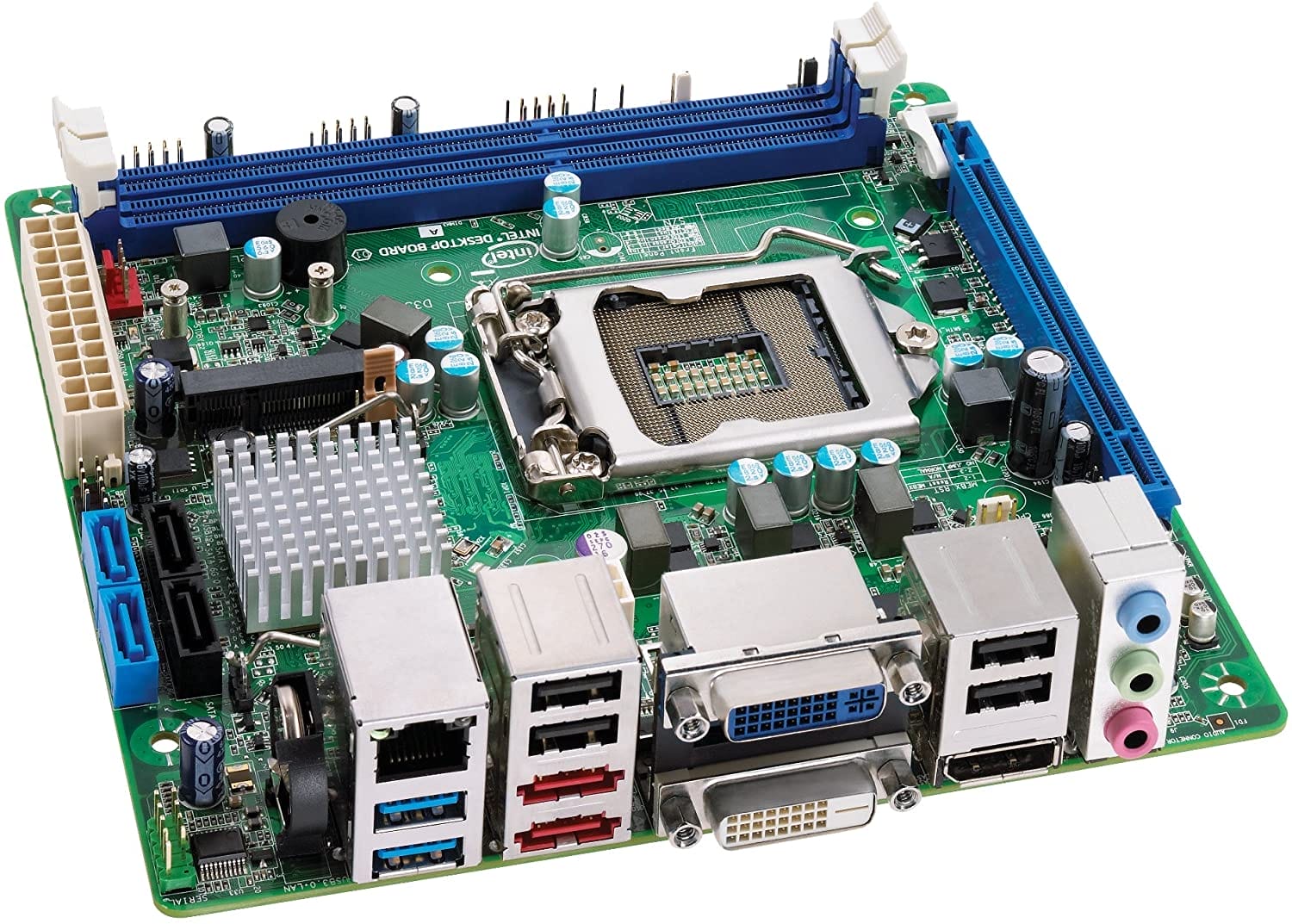

The Intel DQ67EP motherboard is a Mini-ITX LGA1155 motherboard which is equipped with 2 DDR3 memory slots. The Intel  DQ67EP Socket 1155 motherboard is a motherboard equipped with the Intel Q67 Chipset.

Short Specifications:

Motherboard – LGA1155 | Mini ITX | Intel Q67 Chipset | 2 x DDR3 up to 16GB | Gigabit Ethernet | PCI-e 2.0 x16 | SATA-300 | Sata-600 | eSATA | USB 2.0 | USB 3.2 Gen 1 | DVI-D | DVI-I | display port

Product: Intel DQ67EP Socket 1155;
Category: Intel socket 1156 Motherboards ;
Brand: Intel;
EAN:  0735858221269
SKU: BOXDQ67EPB3
Condition: Used
Warranty: 6 Months

Processors which are supported by the Intel DQ67EP
Drivers for the Intel DQ67EP

Extended product specifications:

CPU
– Supports Socket 1155

Chipset
– Intel® Q67

Memory
– Dual Channel DDR3 memory technology
– 2 x DDR3 DIMM slots
– Supports DDR3 1333/1066 non-ECC, unbuffered memory
– Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.
***In order to maximize the system memory, please install 8GB memory module with 16 cells

LAN
–  Supports one PCI Express LAN 10/100/1000 Fast Ethernet

Slots

– 1x PCI Express 2.0 x16

SATA
– 2 SATA 3.0 Gb/s ports
– 2 SATA 6.0 Gb/s ports

Connector
– ATX 24-Pin power connector
– 4-pin ATX 12V power connector
– Front panel audio connector
– Front panel connector
– 4 x USB 2.0 connectors
– 2 x Serial ATAII connectors
– 2 x Serial ATAIII connectors

Rear Panel I/O
I/O Panel
– 4 x USB 2.0
– 2 x USB 3.2 Gen1
– 1x Display port
– 1x DVI-I
– 1x DVI-D
– 1 x eSata
– 1 x RJ45 LAN Jack

Accessories
– I/O Shield

Form Factor
– Mini-ITX Form Factor

OS

– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32- bit / XP 64 bit
*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.
